RT 600 - Toro Riding Trencher Traction Unit (2012) TRENCHER BOOM AND MOUNTING ASSEMBLY ROCK BOOM - 5 FOOT INTEGRAL QUAD TRENCHER Parts Diagram

Riding Trencher Traction Unit

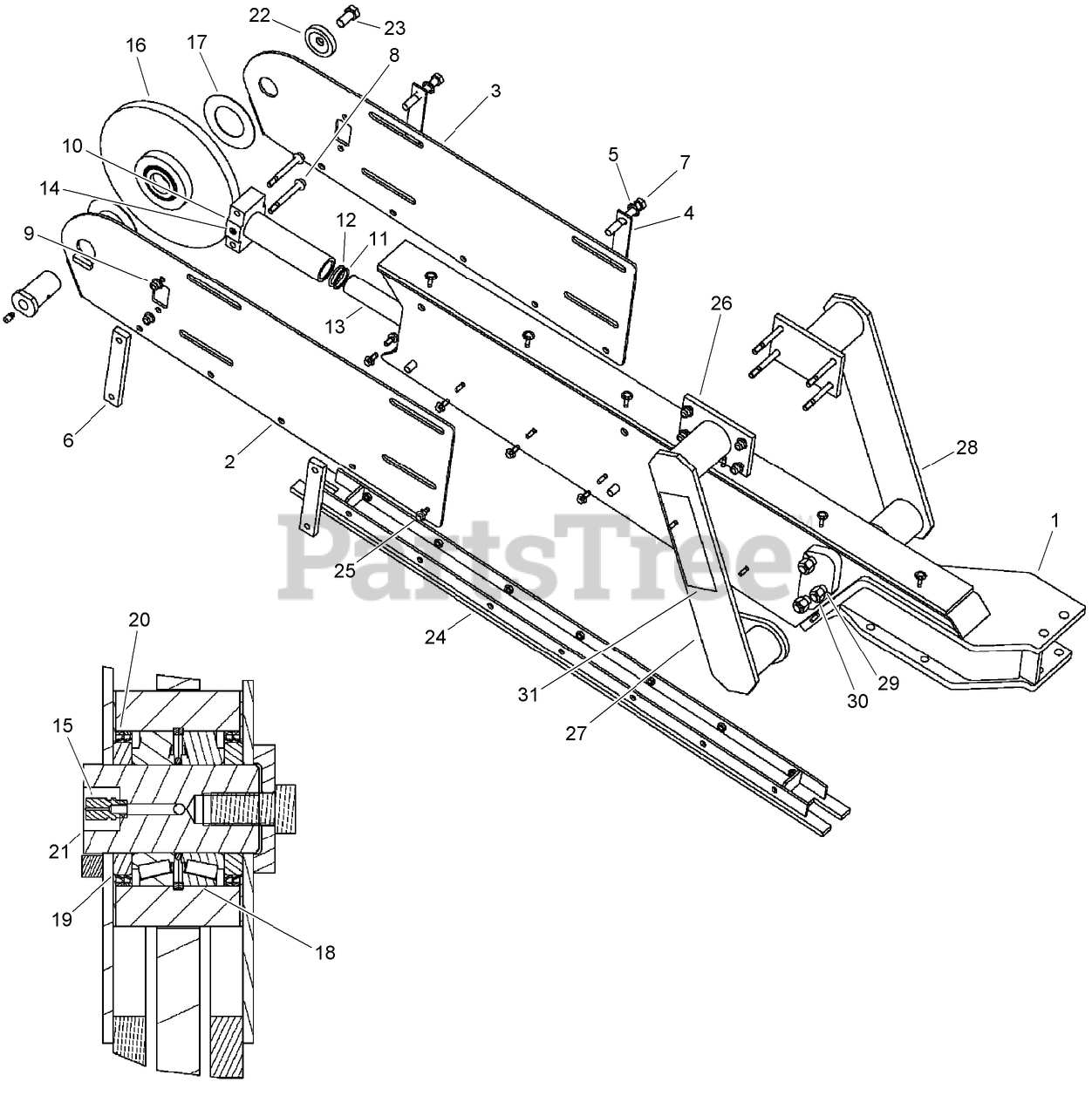

TRENCHER BOOM AND MOUNTING ASSEMBLY ROCK BOOM - 5 FOOT INTEGRAL QUAD TRENCHER Parts Diagram

  • Title

Toro AU126225

KIT-Rock Boom 5 foot

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU126226

BOOM-Rock, 5 foot

$

$

Currently unavailable

2

Toro AU112665A1

PLATE-Boom End (RH)

$

$

Not available

3

Toro AU121502A1

PLATE-Boom End (LH)

$

$

Not available

4

Toro AU101563A1

BAR-Clamp
(Superseded to AU101563A1-03)

$

$

Not available

5

Toro AUH434670

WASHER-LOCK

$

$

Not available

6

Toro AU101562A1

BAR-Tapped
(Superseded to AU101562A1-03)

$

$

Not available

$4.99

$

Usually ships in 3-6 days

0

8

Toro AU100356

BOLT-HHF

$

$

Currently unavailable

9

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

10

Toro AUH674743

CYLINDER-Boom End
(Superseded to AUH674743-03)

$

$

Not available

11

Toro AUH755009

WASHER-BACKUP

$6.99

$

Usually ships in 3-6 days

0

12

$10.99

$

Usually ships in 3-6 days

0

13

Toro AUH434551

ROD-BOOM, END (CYLINDER)

$

$

Currently unavailable

14

Toro AUH114728

PLUG-BLEED

$20.99

$

Usually ships in 3-6 days

0

15

Toro AU219-66

FITTING-LUBE, STRAIGHT

$15.99

$

Usually ships in 3-6 days

0

16

Toro AUH675070

BOLLER-Boom End
(Superseded to AUH675070-03)

$

$

Not available

17

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

18

Toro AUH759118

BEARING KIT

$

$

Currently unavailable

19

Toro AUH438569

SPACER-bearing

$

$

Currently unavailable

20

Toro AUH435218

SEAL-ROLLER

$

$

Currently unavailable

21

Toro AUH438570

PIN-BOOM

$

$

Currently unavailable

22

$

$

Not available

23

$

$

Not available

24

Toro AU126641

CHANNEL-Wear Pad, 5\ Boom

$

$

Currently unavailable

25

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

26

Toro AU112357A1

BAR-Wear Pad, Upper, 5\ Boom
(Superseded to AU112357A1-03)

$

$

Not available

27

Toro AU117778A1

MOUNT-Crumber RH
(Superseded to AU117778A1-03)

$

$

Not available

28

Toro AU117777A1

MOUNT-Crumber LH
(Superseded to AU117777A1-03)

$

$

Not available

$

$

Not available

30

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

31

Toro AU419475A1

DECAL-Danger, Trencher Entanglement Hazard

$

$

Not available
