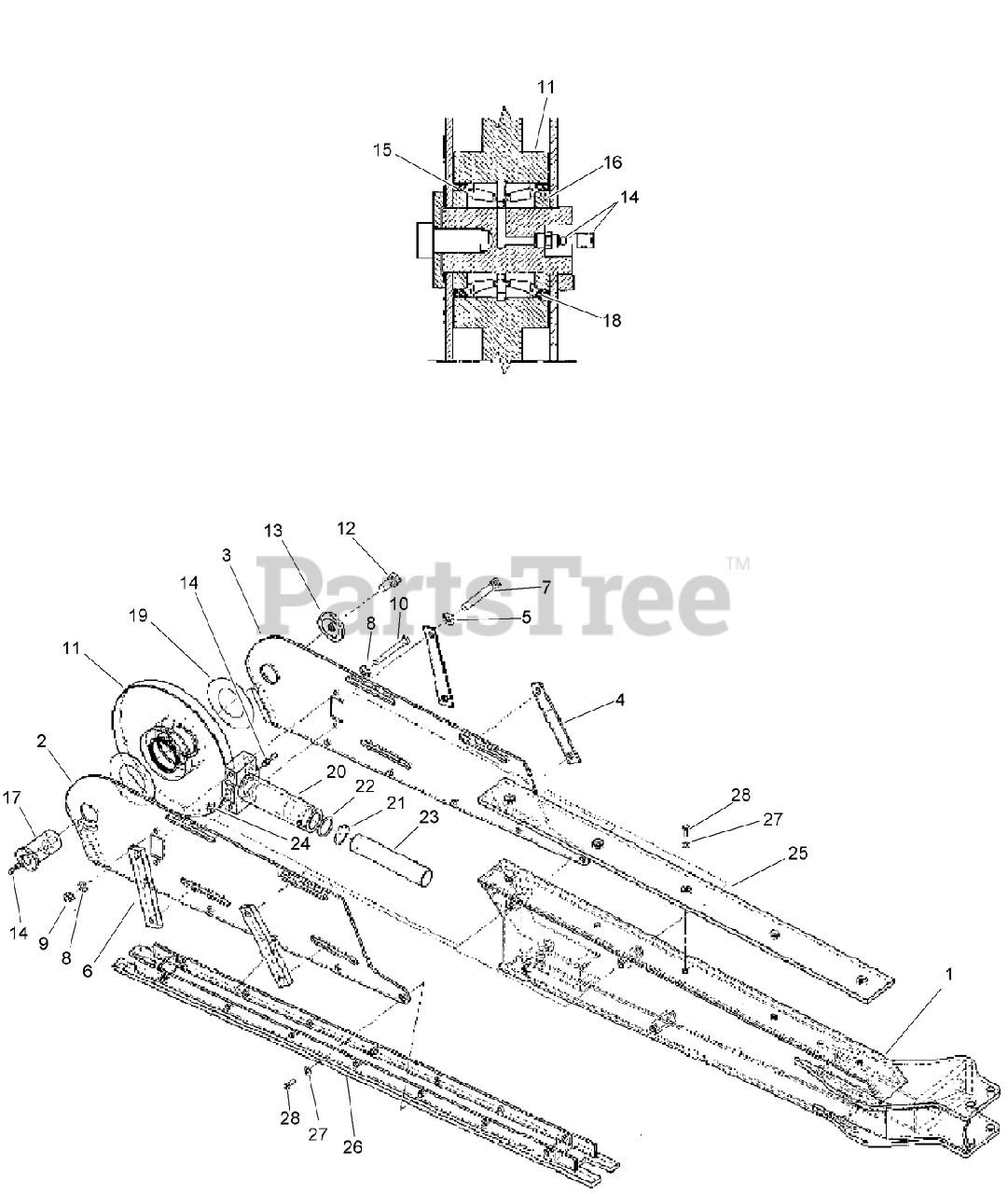

RT 600 - Toro Riding Trencher Traction Unit (2012) TRENCHER BOOM AND MOUNTING ASSEMBLY DIRECT DRIVE TRENCHER ROCK BOOM - 5 FOOT 50,000 POUND AND 75,000 POUND CHAINLINE Parts Diagram

Riding Trencher Traction Unit

TRENCHER BOOM AND MOUNTING ASSEMBLY DIRECT DRIVE TRENCHER ROCK BOOM - 5 FOOT 50,000 POUND AND 75,000 POUND CHAINLINE Parts Diagram

  • Title

Toro AU123933A1

ASM-5 foot Direct Drive Trencher Boom

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU123860A1

BOOM-rock, 5 foot, direct drive trencher

$

$

Currently unavailable

2

Toro AU123874A1

PLATE-rock boom end, right-hand

$

$

Currently unavailable

3

Toro AU123873A1

PLATE-rock boom end, left hand

$

$

Currently unavailable

4

Toro AU101563A1

BAR-Clamp
(Superseded to AU101563A1-03)

$

$

Not available

5

Toro AUH434670

WASHER-LOCK

$

$

Not available

6

Toro AU101562A1

BAR-Tapped
(Superseded to AU101562A1-03)

$

$

Not available

$4.99

$

Usually ships in 3-6 days

0

8

$2.49

$

Usually ships in 3-6 days

0

9

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU426-868

BOLT-hex, 1/2 NC x 4-1/4 inch

$

$

Not available

11

Toro AUH675070

BOLLER-Boom End
(Superseded to AUH675070-03)

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

Toro AU219-66

FITTING-LUBE, STRAIGHT

$15.99

$

Usually ships in 3-6 days

0

CAP-grease fitting, order 219-66 grease fitting

Note: Not serviced separately

$

$

Not available

CAP-grease fitting, order 219-66 grease fitting

Note: Not illustrated

$

$

Not available

15

Toro AUH435218

SEAL-ROLLER

$

$

Currently unavailable

16

Toro AUH438569

SPACER-bearing

$

$

Currently unavailable

17

Toro AUH438570

PIN-BOOM

$

$

Currently unavailable

18

Toro AUH759118

BEARING KIT

$

$

Currently unavailable

19

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

20

Toro AUH674743

CYLINDER-Boom End
(Superseded to AUH674743-03)

$

$

Not available

21

Toro AUH755009

WASHER-BACKUP

$6.99

$

Usually ships in 3-6 days

0

22

Toro AUH748871

O-RING
(Superseded to AU238-6327)

$10.99

$

Usually ships in 3-6 days

0

23

Toro AUH434551

ROD-BOOM, END (CYLINDER)

$

$

Currently unavailable

24

Toro AUH114728

PLUG-BLEED

$20.99

$

Usually ships in 3-6 days

0

25

Toro AU117591A1

BAR-Wear Pad, Upper, 4\ Boom
(Superseded to AU117591A1-03)

$

$

Not available

26

Toro AU101570A1

CHANNEL-wear pad, lower

$

$

Currently unavailable

27

Toro AU196-1

WASHER-3/8 HT

$

$

Currently unavailable

28

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0
