RT 600 - Toro Riding Trencher Traction Unit (2012) REEL CARRIER LIFT CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

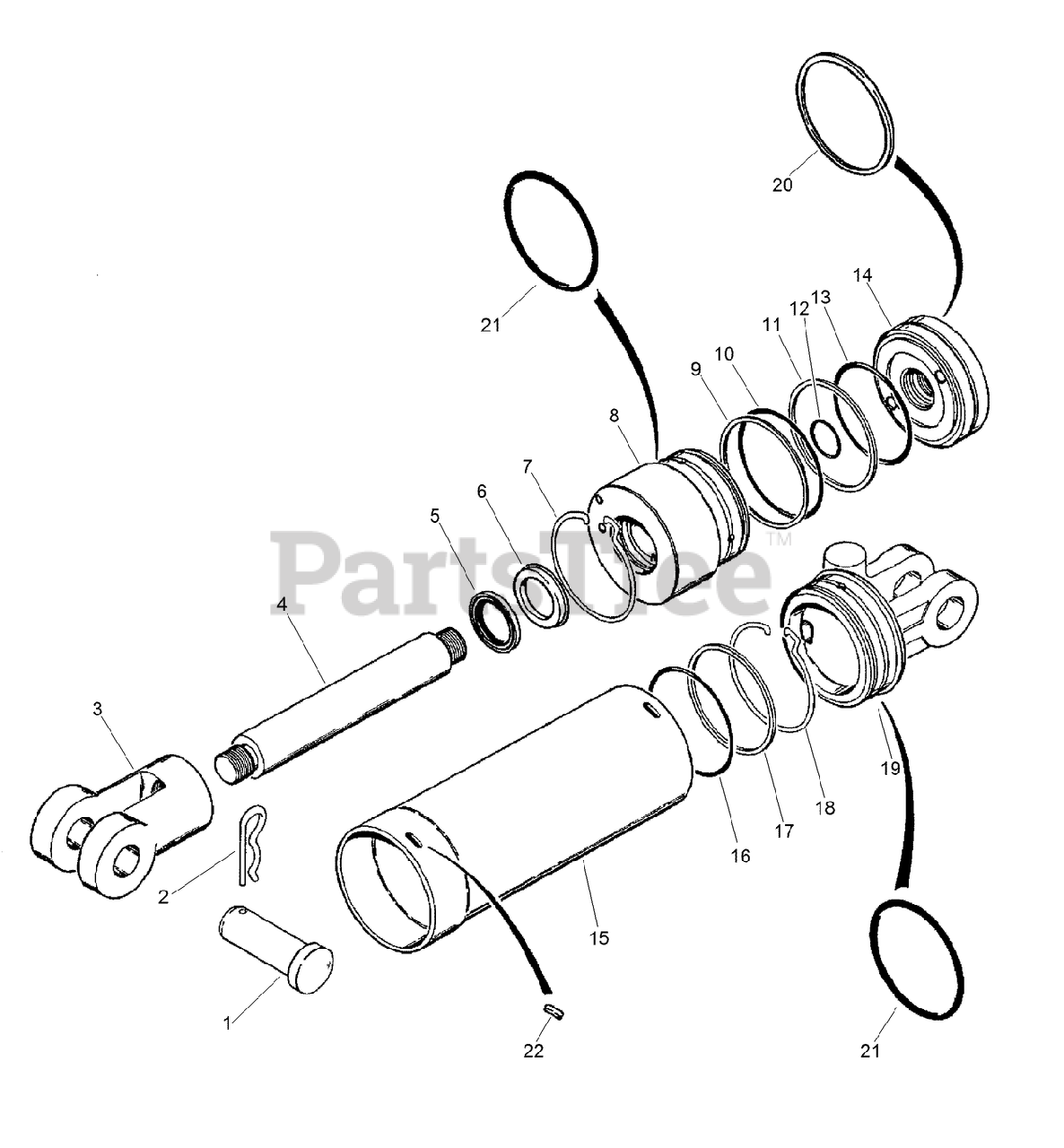

REEL CARRIER LIFT CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AU101645A1

CYLINDER-64 (2-1/2) ID x 203 mm (8 inch) Stroke, Lift

Note: Not illustrated

$

$

Not available

1

Toro AU102910A1

PIN-upset clevis

$

$

Currently unavailable

2

Toro AU1978738C1

PIN-COTTER, QUICK ATTACH

$

$

Not available

3

Toro AU102908A1

END-piston rod

$

$

Not available

4

Toro AU102907A1

ROD-piston

$

$

Not available

5

WIPER-piston rod

Note: Included in a service kit or in an assembly

$

$

Not available

5

WIPER-piston rod

Note: Not serviced separately

$

$

Not available

6

SEAL-U-cup, piston rod

Note: Not serviced separately

$

$

Not available

6

SEAL-U-cup, piston rod

Note: Included in a service kit or in an assembly

$

$

Not available

7

RING-locking

Note: Included in a service kit or in an assembly

$

$

Not available

7

RING-locking

Note: Not serviced separately

$

$

Not available

8

Toro AU102909A1

GLAND-cylinder

$

$

Currently unavailable

9

RING-backup, gland O-ring

Note: Included in a service kit or in an assembly

$

$

Not available

9

RING-backup, gland O-ring

Note: Not serviced separately

$

$

Not available

10

O-RING-gland

Note: Not serviced separately

$

$

Not available

10

O-RING-gland

Note: Included in a service kit or in an assembly

$

$

Not available

11

SEAL-piston, outer

Note: Included in a service kit or in an assembly

$

$

Not available

11

SEAL-piston, outer

Note: Not serviced separately

$

$

Not available

12

O-RING-piston rod

Note: Not serviced separately

$

$

Not available

12

O-RING-piston rod

Note: Included in a service kit or in an assembly

$

$

Not available

13

O-RING-piston

Note: Included in a service kit or in an assembly

$

$

Not available

13

O-RING-piston

Note: Not serviced separately

$

$

Not available

14

Toro AU102905A1

PISTON-cylinder

$

$

Not available

15

Toro AU102906A1

TUBE-cylinder

$

$

Currently unavailable

16

O-RING-cylinder tube

Note: Included in a service kit or in an assembly

$

$

Not available

16

O-RING-cylinder tube

Note: Not serviced separately

$

$

Not available

17

RING-backup, cylinder tube O-ring

Note: Not serviced separately

$

$

Not available

17

RING-backup, cylinder tube O-ring

Note: Included in a service kit or in an assembly

$

$

Not available

18

RING-locking

Note: Included in a service kit or in an assembly

$

$

Not available

18

RING-locking

Note: Not serviced separately

$

$

Not available

19

Toro AU102904A1

HEAD-cylinder

$

$

Not available

20

RING-wear, piston

Note: Included in a service kit or in an assembly

$

$

Not available

20

RING-wear, piston

Note: Not serviced separately

$

$

Not available

21

O-RING-tube to gland and head

Note: Included in a service kit or in an assembly

$

$

Not available

21

O-RING-tube to gland and head

Note: Not serviced separately

$

$

Not available

22

COVER-slot, locking ring

Note: Not serviced separately

$

$

Not available

22

COVER-slot, locking ring

Note: Included in a service kit or in an assembly

$

$

Not available

Toro AUH673838

KIT-cylinder seal repair (includes items noted above)

Note: Included in a service kit or in an assembly

$

$

Not available

Toro AUH673838

KIT-cylinder seal repair (includes items noted above)

Note: Not illustrated

$

$

Not available
