RT 600 - Toro Riding Trencher Traction Unit (2012) REEL CARRIER - 1000 LB Parts Diagram

Riding Trencher Traction Unit

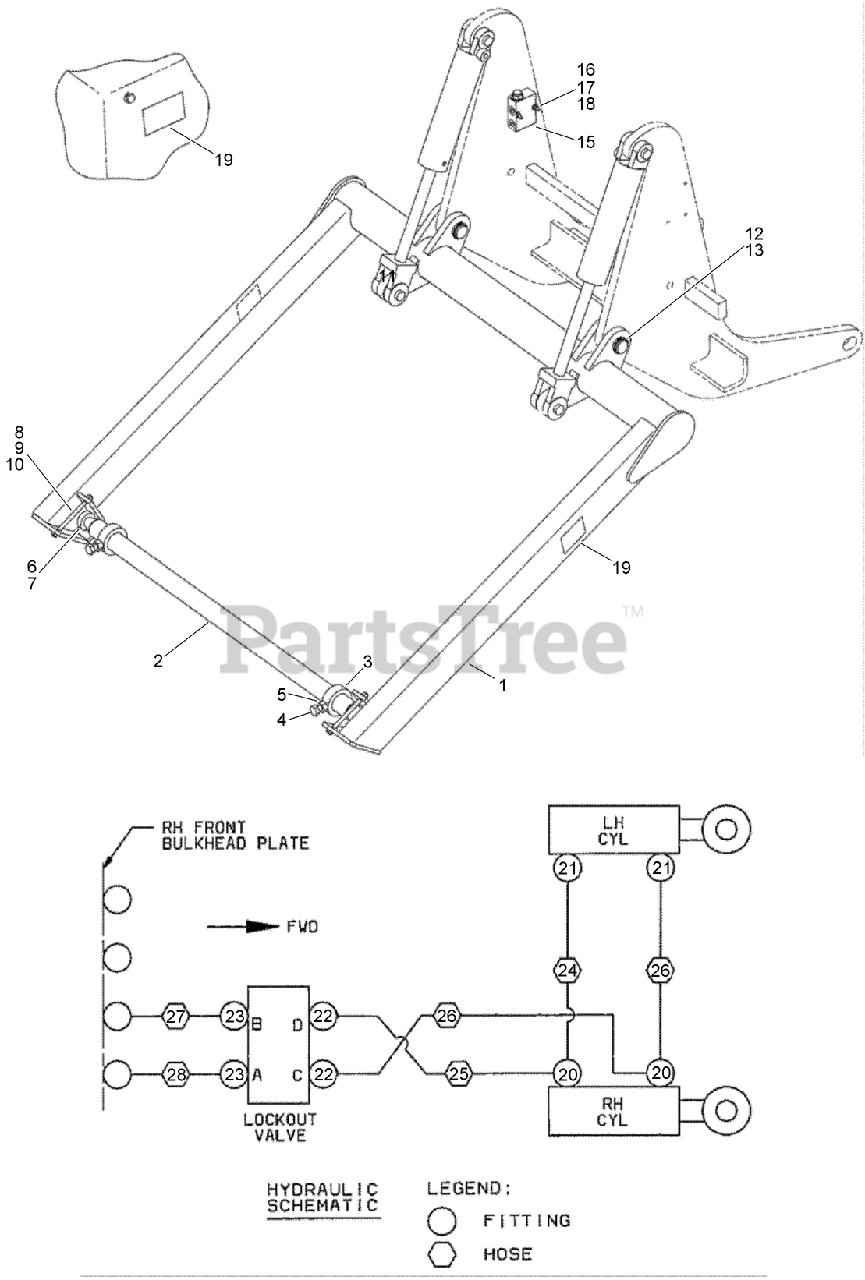

REEL CARRIER - 1000 LB Parts Diagram

  • Title

Toro AUH939216

REEL CARRIER-1000 lb

Note: Not illustrated

$

$

Currently unavailable

Toro AUH673990

ASM-Reel Carrier, 1000 lb

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH673992

FRAME-Reel Carrier

$

$

Currently unavailable

2

Toro AUH673993

SHAFT-Reel Carrier

$

$

Currently unavailable

3

Toro AUH342519

COLLAR-Reel Carrier Shaft

$

$

Currently unavailable

4

Toro AU426-1024

BOLT-Hex Hd 5/8 x 1-1/2 GR5 ZND

$2.49

$

Usually ships in 3-6 days

0

5

Toro AU425-1410

NUT-HEX, JAM

$3.99

$

Usually ships in 3-6 days

0

6

Toro AU537290R91

BEARING-Ball, Reel Carrier Shaft

$

$

Not available

7

Toro AUA33531

RING-3/4, Bearing Retaining

$

$

Currently unavailable

8

Toro AU426-684

BOLT-Hex Hd, 3/8 NC x 5-1/4 inch GR5

$13.99

$

Usually ships in 3-6 days

0

9

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU101645A1

CYLINDER-64 (2-1/2) ID x 203 mm (8 inch) Stroke, Lift

$

$

Not available

12

Toro AUH434262

PIN

$

$

Currently unavailable

13

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

14

Toro AU113154A1

ASM-Frame - Mounting (also used to mount counter weights on models so equipped.)

Note: Not illustrated

$

$

Currently unavailable

15

Toro AUH672547

HYD LOCKOUT VALVE ASM

$1215.99

$

Usually ships in 3-6 days

0

16

Toro AU426-448

BOLT-Hex, 1/4 NC x 3 inch GR5

$

$

Currently unavailable

17

Toro AUH426767

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU232-4114

NUT-Prev Trq 1/4 GRC PHC Direct

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU190334A1

DECAL-Lift Rating (1000 lbs)

$

$

Currently unavailable

20

Toro AU218-5243

FITTING-TEE

$30.99

$

Usually ships in 3-6 days

0

21

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.49

$

Usually ships in 3-6 days

0

22

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

23

Toro AU218-5148

ELBOW-8MO x 6MJ 45 Deg Adapter

$10.99

$

Usually ships in 3-6 days

0

24

Toro AUH438080

HOSE-Hydraulic

$

$

Currently unavailable

25

Toro AUH438085

HOSE-Hydraulic

$

$

Currently unavailable

26

Toro AUH438086

HOSE-Hydraulic

$

$

Currently unavailable

27

Toro AU117279A1

HOSE-Hydraulic

$

$

Not available

28

Toro AU117280A1

HOSE-Hydraulic

$

$

Currently unavailable
