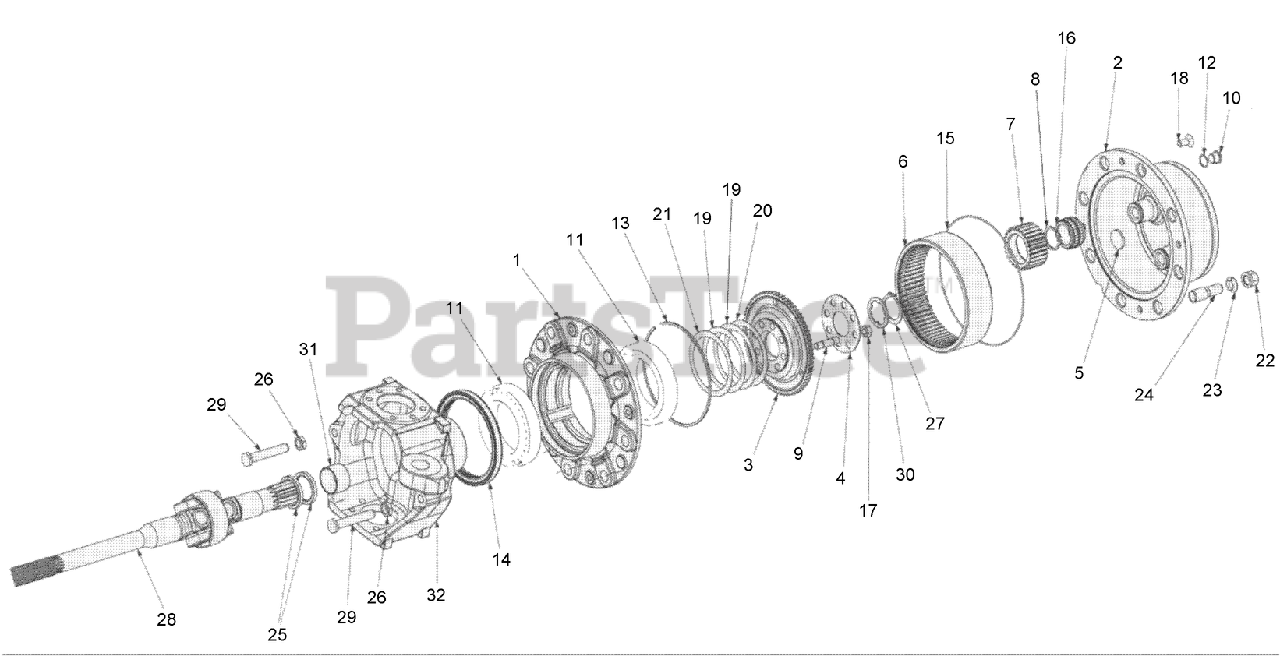

RT 600 - Toro Riding Trencher Traction Unit (2012) REAR AXLE STEERING COMPONENT ASSEMBLY NO. 6 Parts Diagram

Riding Trencher Traction Unit

REAR AXLE STEERING COMPONENT ASSEMBLY NO. 6 Parts Diagram

  • Title

Toro AU124920

AXLE-REAR

Note: Not illustrated

$

$

Currently unavailable

1

HUB-WHEEL

Note: Not serviced separately

$

$

Not available

2

HUB-Planetary

Note: Not serviced separately

$

$

Not available

3

FLANGE-Crown

Note: Not serviced separately

$

$

Not available

4

RING-Crown

Note: Not serviced separately

$

$

Not available

5

SHIM-Crown Wheel

Note: Not serviced separately

$

$

Not available

6

WHEEL-Crown

Note: Not serviced separately

$

$

Not available

7

GEAR-Planetary

Note: Not serviced separately

$

$

Not available

8

RING-SNAP

Note: Not serviced separately

$

$

Not available

9

BOLT-Stud, M12 x 41

Note: Not serviced separately

$

$

Not available

10

CAP-M18 x 1.5

Note: Not serviced separately

$

$

Not available

11

Bearing

Note: Not serviced separately

$

$

Not available

12

WASHER-Copper

Note: Not serviced separately

$

$

Not available

13

RING-Internal Retaining

Note: Not serviced separately

$

$

Not available

14

CASSETTE-145 x 75 x 4.5 x 15.5

Note: Not serviced separately

$

$

Not available

15

O-RING

Note: Not serviced separately

$

$

Not available

16

BEARING-Roller, 38 x 54 x 29.5

Note: Not serviced separately

$

$

Not available

17

NUT-M12 x 1.25

Note: Not serviced separately

$

$

Not available

18

SCREW-M12 x 25

Note: Not serviced separately

$

$

Not available

19

SHIM-99.8 x 122 x 0.2

Note: Not serviced separately

$

$

Not available

20

SHIM-99.8 x 122 x 0.1

Note: Not serviced separately

$

$

Not available

21

SHIM-99.8 x 122 x 0.35

Note: Not serviced separately

$

$

Not available

22

NUT-M18 x 1.5

Note: Not serviced separately

$

$

Not available

23

WASHER-Elastic

Note: Not serviced separately

$

$

Not available

24

BOLT-Stud, M22 x 18 x 45

Note: Not serviced separately

$

$

Not available

25

SEAL-Oil, 45 x 60 x 7

Note: Not serviced separately

$

$

Not available

26

NUT-M16

Note: Not serviced separately

$

$

Not available

27

RING-SNAP

Note: Not serviced separately

$

$

Not available

28

SHAFT-Cardan, I=1390

Note: Not serviced separately

$

$

Not available

29

SCREW-Steering, End

Note: Not serviced separately

$

$

Not available

30

SHIM-Crown

Note: Not serviced separately

$

$

Not available

31

Bushing

Note: Not serviced separately

$

$

Not available

32

JOINT-LH, Articulated

Note: Not serviced separately

$

$

Not available
