RT 600 - Toro Riding Trencher Traction Unit (2012) REAR AXLE STEERING COMPONENT ASSEMBLY NO. 3 Parts Diagram

Riding Trencher Traction Unit

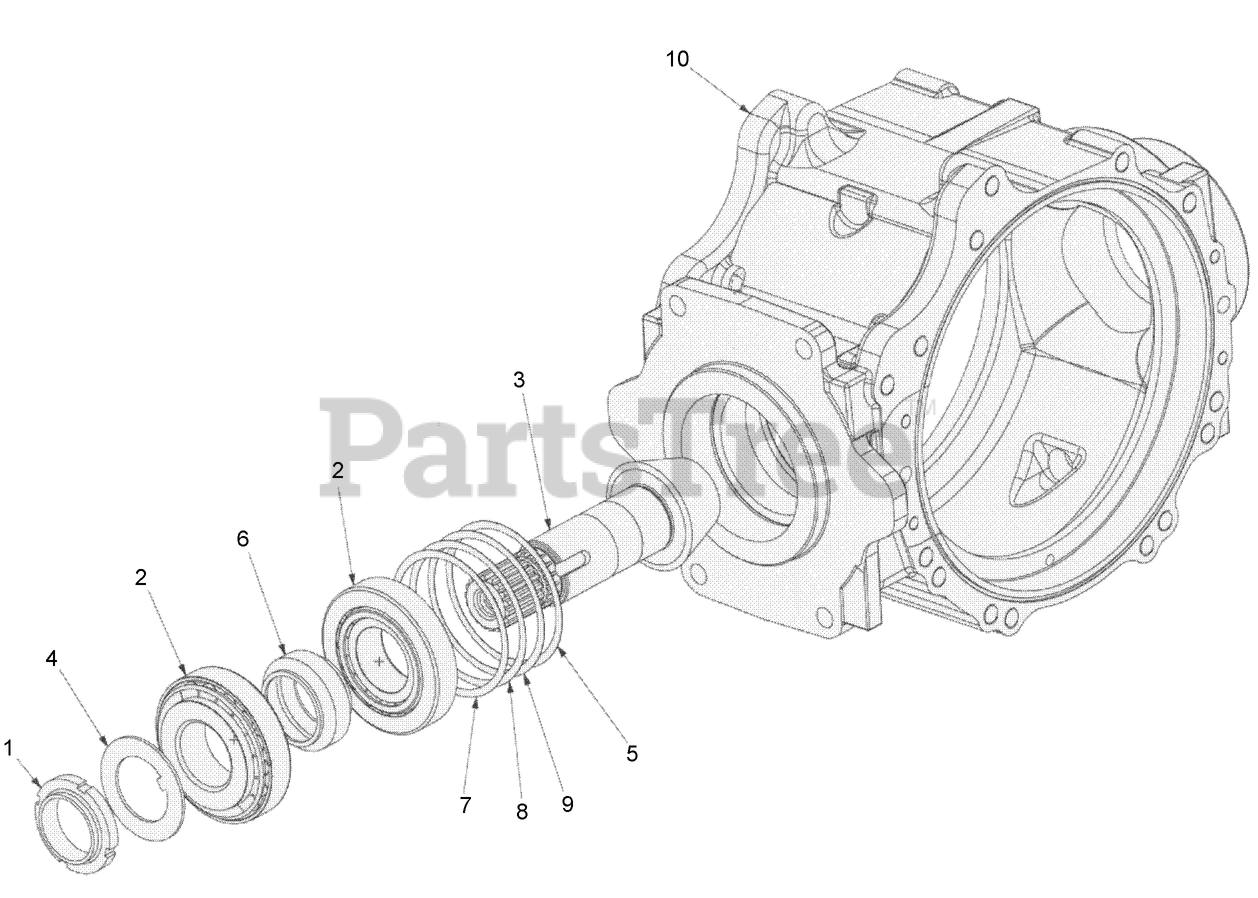

REAR AXLE STEERING COMPONENT ASSEMBLY NO. 3 Parts Diagram

  • Title

Toro AU124920

AXLE-REAR

Note: Not illustrated

$

$

Currently unavailable

1

NUT-Lock, M40 x 1.5

Note: Not serviced separately

$

$

Not available

2

BEARING-Roller, Taper

Note: Not serviced separately

$

$

Not available

3

PINION-Bevel, 4.11

Note: Not serviced separately

$

$

Not available

4

WASHER-Anti-Rotation

Note: Not serviced separately

$

$

Not available

5

SHIM-80.3 x 89.7 x 0.5

Note: Not serviced separately

$

$

Not available

6

SPACER-Deformable

Note: Not serviced separately

$

$

Not available

7

SHIM-80.3 x 89.7 x 0.35

Note: Not serviced separately

$

$

Not available

8

SHIM-80.3 x 89.7 x 0.3

Note: Not serviced separately

$

$

Not available

9

SHIM-80.3 x 89.7 x 0.4

Note: Not serviced separately

$

$

Not available

10

HOUSING-Central

Note: Not serviced separately

$

$

Not available
