RT 600 - Toro Riding Trencher Traction Unit (2012) PRIORITY FLOW DIVIDER VALVE ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

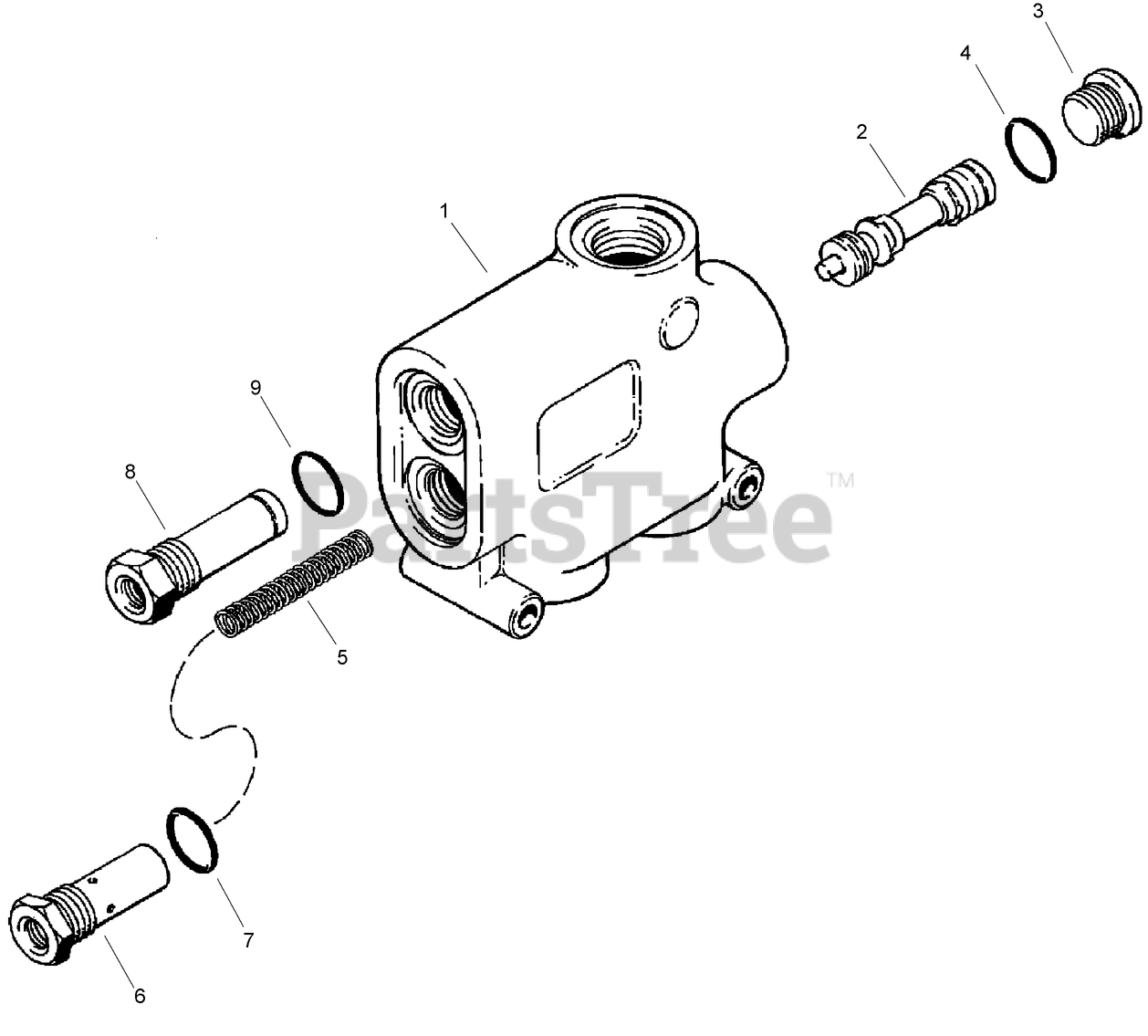

PRIORITY FLOW DIVIDER VALVE ASSEMBLY Parts Diagram

  • Title

Toro AUH672904

HYD PRIORITY FLOW DIVIDER ASM

Note: Not illustrated

$1202.99

$

Usually ships in 3-6 days

0

1

Toro AUH436407

BODY-VALVE

$

$

Currently unavailable

2

Toro AUH436366

SPOOL-Valve

$

$

Currently unavailable

Toro AUH436367

PLUG ASM

Note: Not illustrated

$

$

Currently unavailable

3

PLUG-Spool End

Note: Not serviced separately

$

$

Not available

4

Toro AU218-5006

O-RING-41/64 ID x 3/32 inch Wide
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUH436365

SPRING-SPOOL

$

$

Currently unavailable

6

Toro AUH436408

PLUG-RETAINING, SPOOL SPRING

$

$

Currently unavailable

7

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

Toro AUN7163

CARTRIDGE-VALVE, RELIEF

Note: Not illustrated

$

$

Currently unavailable

8

CARTRIDGE-Relief Valve

Note: Not serviced separately

$

$

Not available

9

Toro AU218-5006

O-RING-41/64 ID x 3/32 inch Wide
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0
