RT 600 - Toro Riding Trencher Traction Unit (2012) PLOW SWING CYLINDER Parts Diagram

Riding Trencher Traction Unit

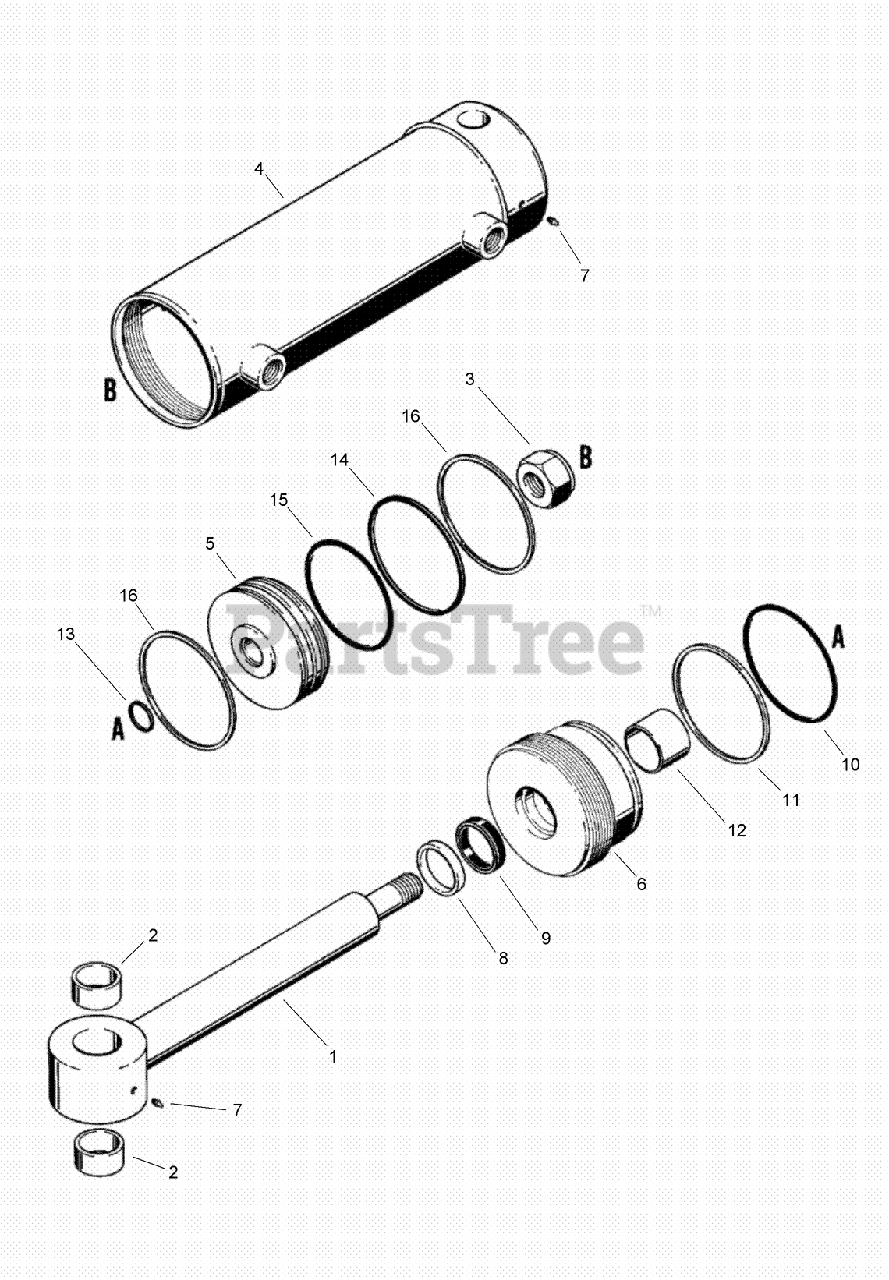

PLOW SWING CYLINDER Parts Diagram

  • Title

Toro AUH673704

CYLINDER ASM-102 (4) ID x 152mm (6) stroke, plow swing
(Superseded to AU126558)

Note: Not illustrated

$

$

Not available

1

Toro AUN14835

ROD-piston

$

$

Currently unavailable

2

Toro AU107115A1

BUSHING-cylinder rod

$35.99

$

Usually ships in 3-6 days

0

3

Toro AU131-190

NUT-hex, self-locking, 1-1/4 inch NF

$

$

Currently unavailable

4

Toro AUH436771

TUBE-cylinder

$

$

Currently unavailable

5

Toro AUN14850

PISTON-cylinder

$

$

Currently unavailable

6

Toro AUN14836

GLAND-cylinder

$

$

Currently unavailable

7

Toro AU219-20

FITTING-grease, straight, 1/4-28 special threads x 1/2 inch

$2.49

$

Usually ships in 3-6 days

0

8

WIPER-piston rod

Note: Included in a service kit or in an assembly

$

$

Not available

8

WIPER-piston rod

Note: Not serviced separately

$

$

Not available

9

Seal-U-Cup

Note: Not serviced separately

$

$

Not available

9

Seal-U-Cup

Note: Included in a service kit or in an assembly

$

$

Not available

10

O-RING-gland

Note: Included in a service kit or in an assembly

$

$

Not available

10

O-RING-gland

Note: Not serviced separately

$

$

Not available

11

RING-Backup, Gland

Note: Not serviced separately

$

$

Not available

11

RING-Backup, Gland

Note: Included in a service kit or in an assembly

$

$

Not available

12

RING-wear, gland

Note: Included in a service kit or in an assembly

$

$

Not available

12

RING-wear, gland

Note: Not serviced separately

$

$

Not available

13

O-RING-piston rod

Note: Not serviced separately

$

$

Not available

13

O-RING-piston rod

Note: Included in a service kit or in an assembly

$

$

Not available

14

Seal-Piston

Note: Included in a service kit or in an assembly

$

$

Not available

14

Seal-Piston

Note: Not serviced separately

$

$

Not available

15

O-RING-piston

Note: Not serviced separately

$

$

Not available

15

O-RING-piston

Note: Included in a service kit or in an assembly

$

$

Not available

16

RING-wear, piston

Note: Not serviced separately

$

$

Not available

16

RING-wear, piston

Note: Included in a service kit or in an assembly

$

$

Not available

Toro AUN14838

KIT-cylinder seal repair, includes all items with an asterisk

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

Toro AUN14838

KIT-cylinder seal repair, includes all items with an asterisk

Note: Not illustrated

$

$

Currently unavailable
