RT 600 - Toro Riding Trencher Traction Unit (2012) KIT, TRENCHER ATTACHMENT - REAR CENTERLINE DIRECT DRIVE TRENCHER Parts Diagram

Riding Trencher Traction Unit

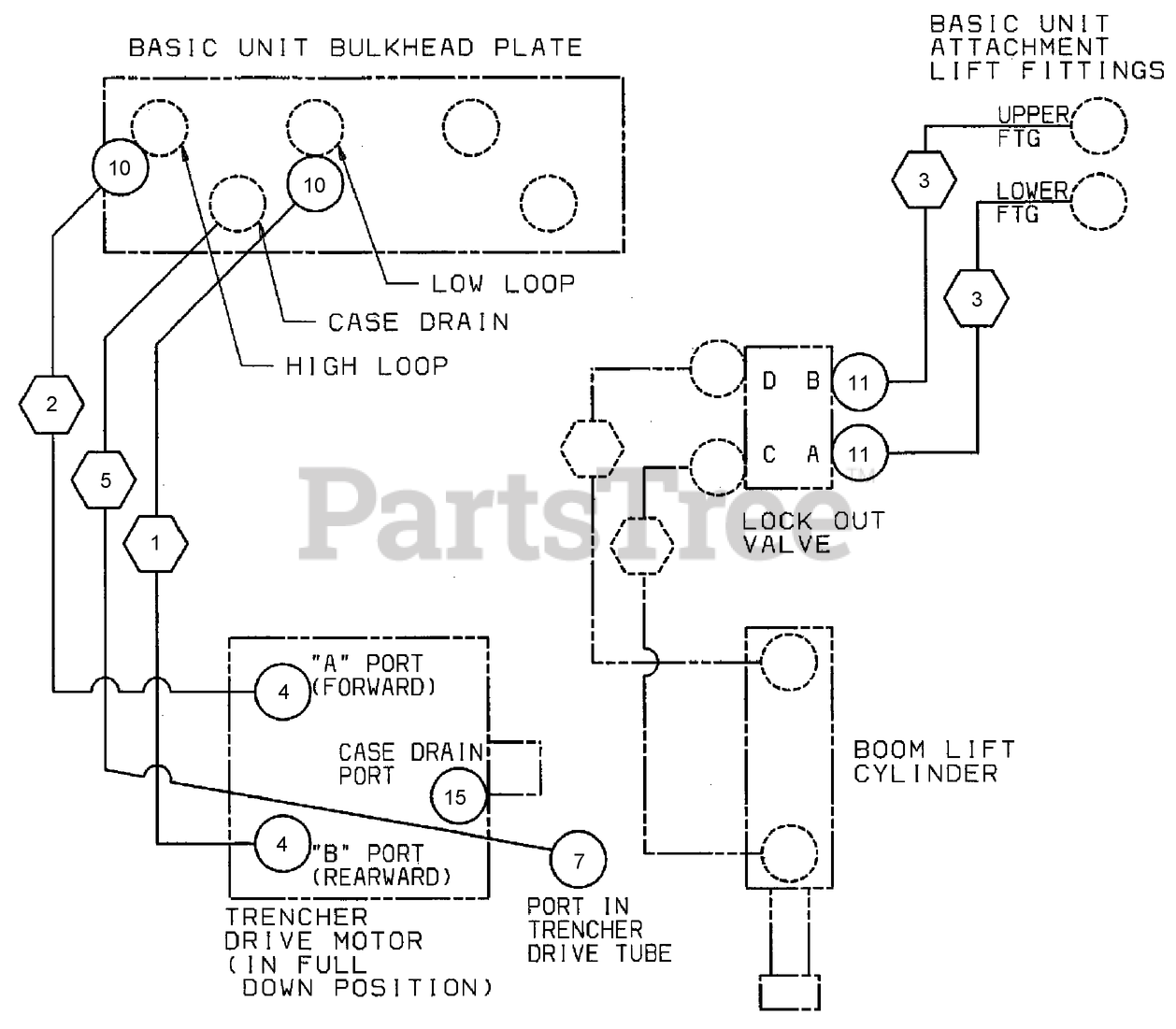

KIT, TRENCHER ATTACHMENT - REAR CENTERLINE DIRECT DRIVE TRENCHER Parts Diagram

  • Title

Toro AU120698A1

KIT-Direct Drive Trencher Attachment, Rear Centerline

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU127252A2

HOSE-Low Pressure Loop

$

$

Not available

2

Toro AU127253A2

HOSE-High Pressure Loop

$

$

Not available

3

Toro AU109605A1

HOSE-Boom Lift

$94.99

$

Usually ships in 3-6 days

0

4

Toro AU218-5064

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

5

Toro AU128847A1

HOSE-Case Drain

$

$

Currently unavailable

6

Toro AU426-1236

SCREW-HH

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

7

Toro AU218-5107

ELBOW-90 Adj 37FL 5/8 Tube

$8.99

$

Usually ships in 3-6 days

0

8

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

9

Toro AUH426817

WASHER-Flat

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

10

Toro AU201-147

REDUCER-16FF-12MF

$

$

Not available

11

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

12

Toro AU426-1296

SCREW-HH

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

13

Toro AU426-1632

BOLT

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0

14

Toro AUH426833

WASHER

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

15

Toro AU218-5155

PLUG-Hex Hd, ORB 3/8

$3.99

$

Usually ships in 3-6 days

0

16

Toro AU426-1240

BOLT

Note: Not illustrated

$4.49

$

Usually ships in 3-6 days

0

17

Toro AU7-47562

INSTRUCTIONS-Installation

Note: Not illustrated

$

$

Currently unavailable
