RT 600 - Toro Riding Trencher Traction Unit (2012) KIT - FRONT ATTACH - HD125 BACKHOE Parts Diagram

Riding Trencher Traction Unit

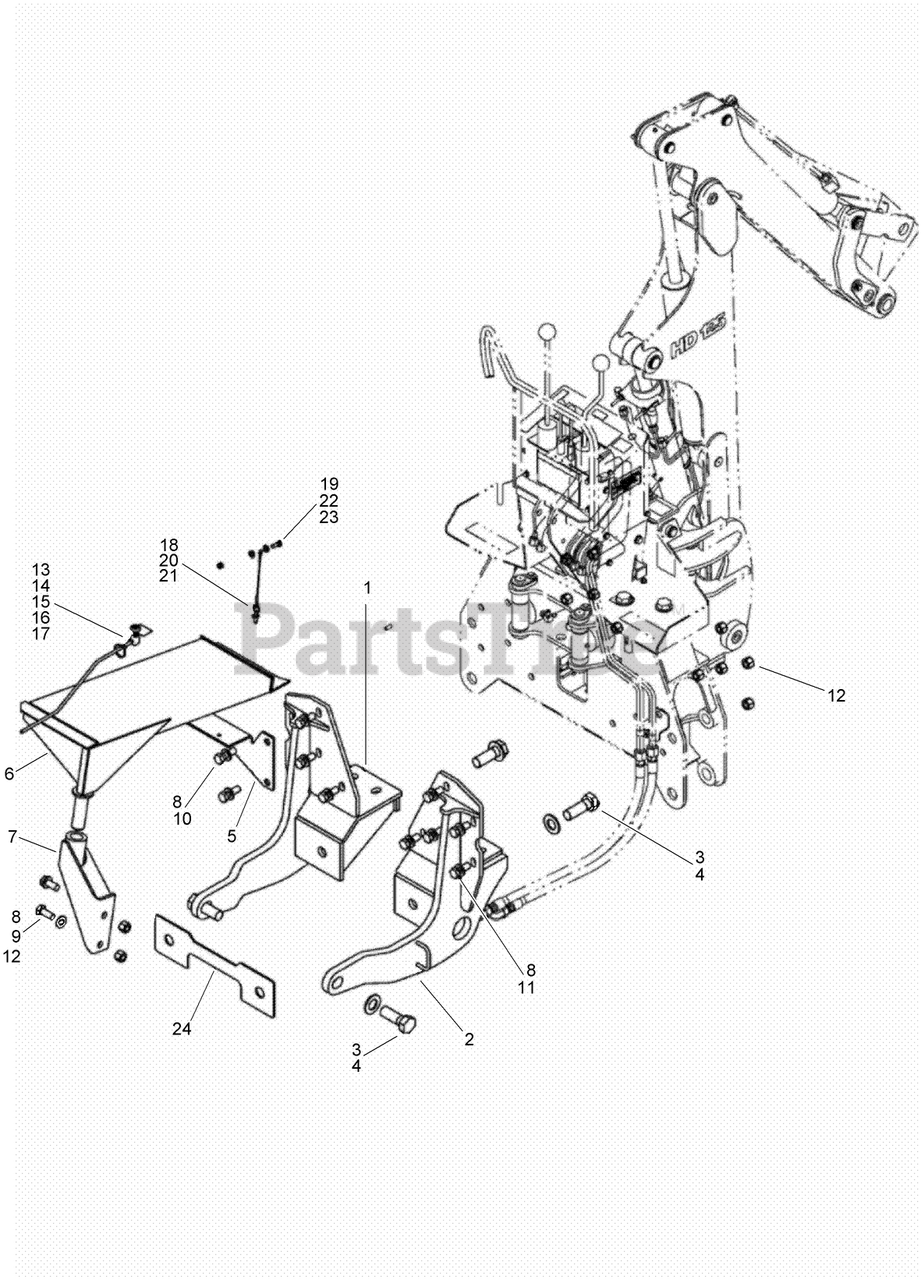

KIT - FRONT ATTACH - HD125 BACKHOE Parts Diagram

  • Title

Toro AU102655

KIT-Front Attach, HD125 Backhoe

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116278A1

BRACKET-Backhoe Mounting LH

$

$

Currently unavailable

2

Toro AU110522A1

BRACKET-Backhoe Mounting RH

$

$

Currently unavailable

3

Toro AUH426858

WASHER

$

$

Not available

4

Toro AU426-2056

BOLT

$

$

Not available

5

Toro AU116558A1

BRACKET-Walkway Support

$

$

Currently unavailable

6

Toro AU116560A1

WALKWAY-backhoe

$

$

Currently unavailable

7

Toro AU102362A1

PIVOT-Walkway Mounting

$

$

Currently unavailable

8

Toro AUH426817

WASHER-Flat

$13.99

$

Usually ships in 3-6 days

0

9

Toro AU426-1228

BOLT-Hex Hd 3/4 x 1-3/4 GR8 ZND

$

$

Not available

10

Toro AU426-1236

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

11

Toro AU426-1232

BOLT

$9.99

$

Usually ships in 3-6 days

0

12

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

13

Toro AUD74330

SWITCH-Light

$25.99

$

Usually ships in 3-6 days

0

14

Toro AU188194A1

DECAL-Backhoe E-Stop

$

$

Currently unavailable

15

Toro AUD91273

KNOB-Fuel Shut-Off

$

$

Currently unavailable

16

Toro AUH434267

HARNESS-Backhoe E-Stop

$

$

Currently unavailable

17

Toro AUL11541

STRAP-TIE

$16.99

$

Usually ships in 3-6 days

0

18

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

20

Toro AUD94535

PIN-Cotterless

$14.99

$

Usually ships in 3-6 days

0

21

Toro AUL78786

RETAINER-ROPE, WIRE

$45.99

$

Usually ships in 3-6 days

0

22

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

23

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

24

Toro AU104292

SHIM-Backhoe to Frame

$

$

Currently unavailable

25

Toro AU102656

INSTRUCTIONS-Installation

Note: Not illustrated

$

$

Currently unavailable
