RT 600 - Toro Riding Trencher Traction Unit (2012) IDLER SPROCKET AND MOUNTING ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

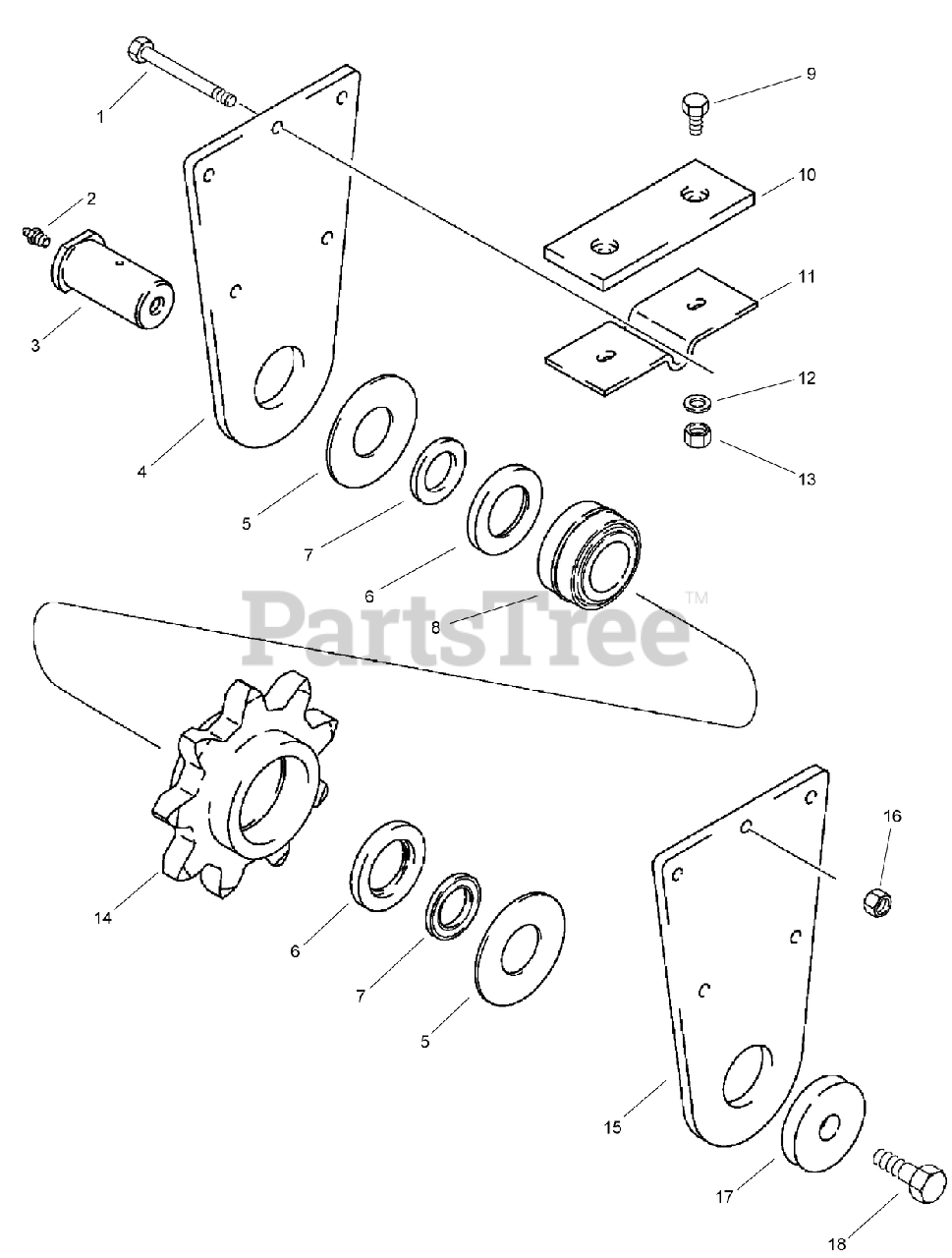

IDLER SPROCKET AND MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro AU426-872

BOLT-hex, 1/2 NC x 4-1/2 inch

$4.99

$

Usually ships in 3-6 days

0

2

Toro AU219-66

FITTING-LUBE, STRAIGHT

$15.99

$

Usually ships in 3-6 days

0

3

Toro AU140371A1

PIN-sprocket

$

$

Currently unavailable

4

Toro AU139931A2

PLATE-idler sprocket mounting, left-hand

$

$

Currently unavailable

5

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

6

Toro AUH435218

SEAL-ROLLER

$

$

Currently unavailable

7

Toro AUH438569

SPACER-bearing

$

$

Currently unavailable

8

Toro AUH759118

BEARING KIT

$

$

Currently unavailable

9

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Toro AUH439388

PAD-wear, trencher boom

$

$

Not available

11

Toro AUH439387

PLATE-mounting, wear pad

$

$

Currently unavailable

12

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU113306A2

SPROCKET-boom idler

$

$

Currently unavailable

15

Toro AU139797A2

PLATE-idler sprocket mounting, right-hand

$

$

Currently unavailable

16

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU139027A1

WASHER

$

$

Not available

18

Toro AU426-1224

BOLT

$

$

Not available
