RT 600 - Toro Riding Trencher Traction Unit (2012) HYDRA-BORER ATTACH KIT DIRECT DRIVE OFFSET TRENCHER Parts Diagram

Riding Trencher Traction Unit

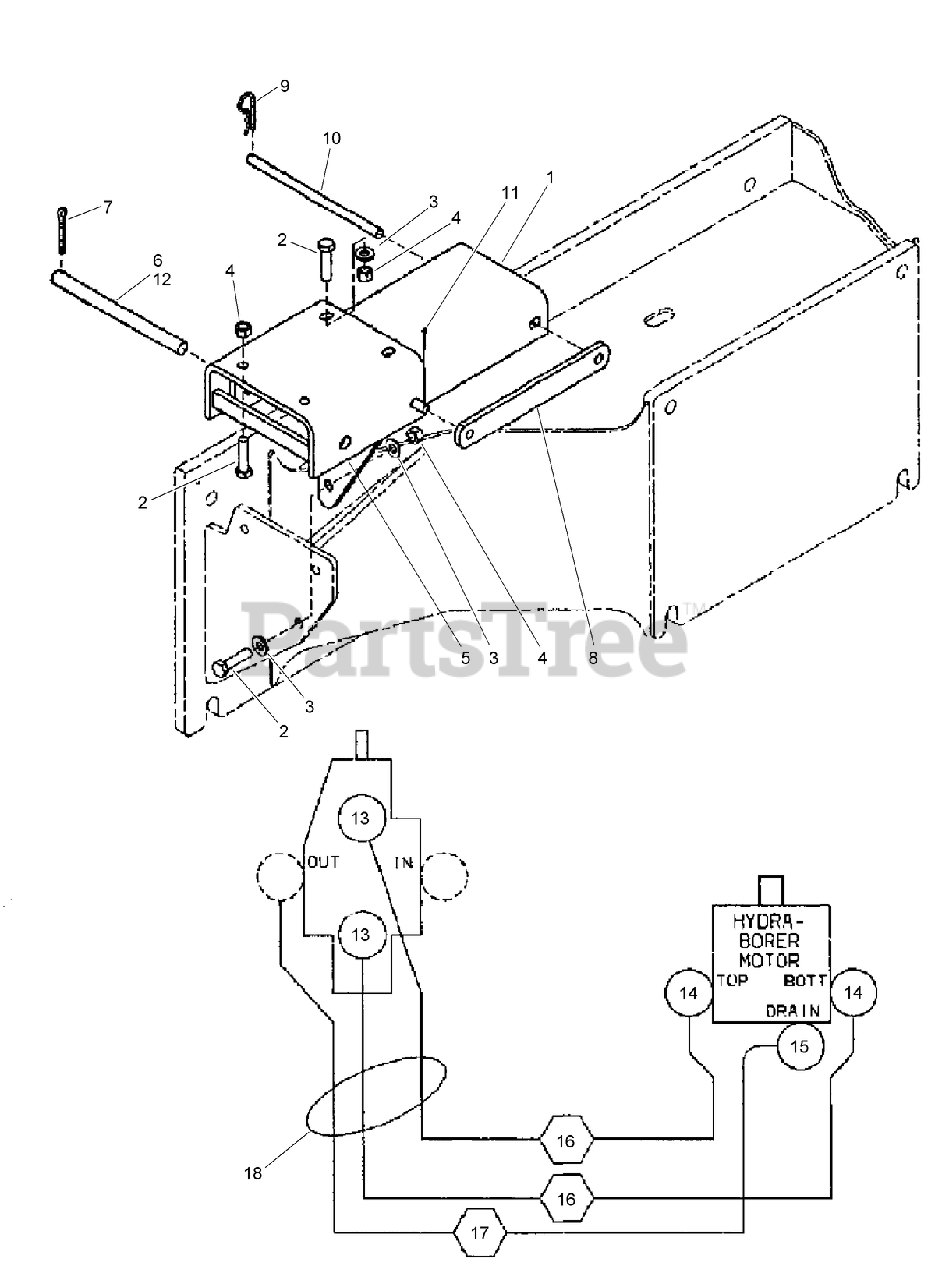

HYDRA-BORER ATTACH KIT DIRECT DRIVE OFFSET TRENCHER Parts Diagram

  • Title

Toro AUH939320

ATTACH KIT-Hydra-Borer

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU138645A1

WELDMENT-Frame, Mounting

$

$

Not available

2

Toro AU426-832

BOLT

$1.49

$

Usually ships in 3-6 days

0

3

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

4

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUH672537

WELDMENT-Hydra-Borer Mount

$

$

Currently unavailable

6

Toro AUH434278

PIN-Pivot

$

$

Currently unavailable

7

Toro AU432-1624

PIN-Cotter, 0.25 x 1.50 in ZN
(Superseded to 3272-30)

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUH434194

LINK-Hydra-Borer Support

$

$

Currently unavailable

9

Toro AUH175414

PIN-Pivot

$

$

Currently unavailable

10

Toro AUH32292

PIN-Hair

$1.49

$

Usually ships in 3-6 days

0

11

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 20+

0

12

Toro AU495-11081

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$7.99

$

Usually ships in 3-6 days

0

14

Toro AU218-5107

ELBOW-90 Adj 37FL 5/8 Tube

$8.99

$

Usually ships in 3-6 days

0

15

Toro AU218-483

ELBOW-90 Deg

$11.99

$

Usually ships in 3-6 days

0

16

Toro AUD20358

HOSE-Hydraulic

$165.99

$

Usually ships in 3-6 days

0

17

Toro AUH438496

ASM-Hose, Tilt

$92.99

$

Usually ships in 3-6 days

0

18

Toro AUL18331

STRAP-TIE

$2.49

$

Usually ships in 3-6 days

0

19

Toro AUH434251

DECAL-Hydra-Borer Control

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU131784A1

ANGLE-Deflector Mounting

Note: Not illustrated

$

$

Currently unavailable

21

Toro AU7-47363

INSTRUCTIONS-Installation

Note: Not illustrated

$

$

Currently unavailable
