RT 600 - Toro Riding Trencher Traction Unit (2012) FUEL TANK ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

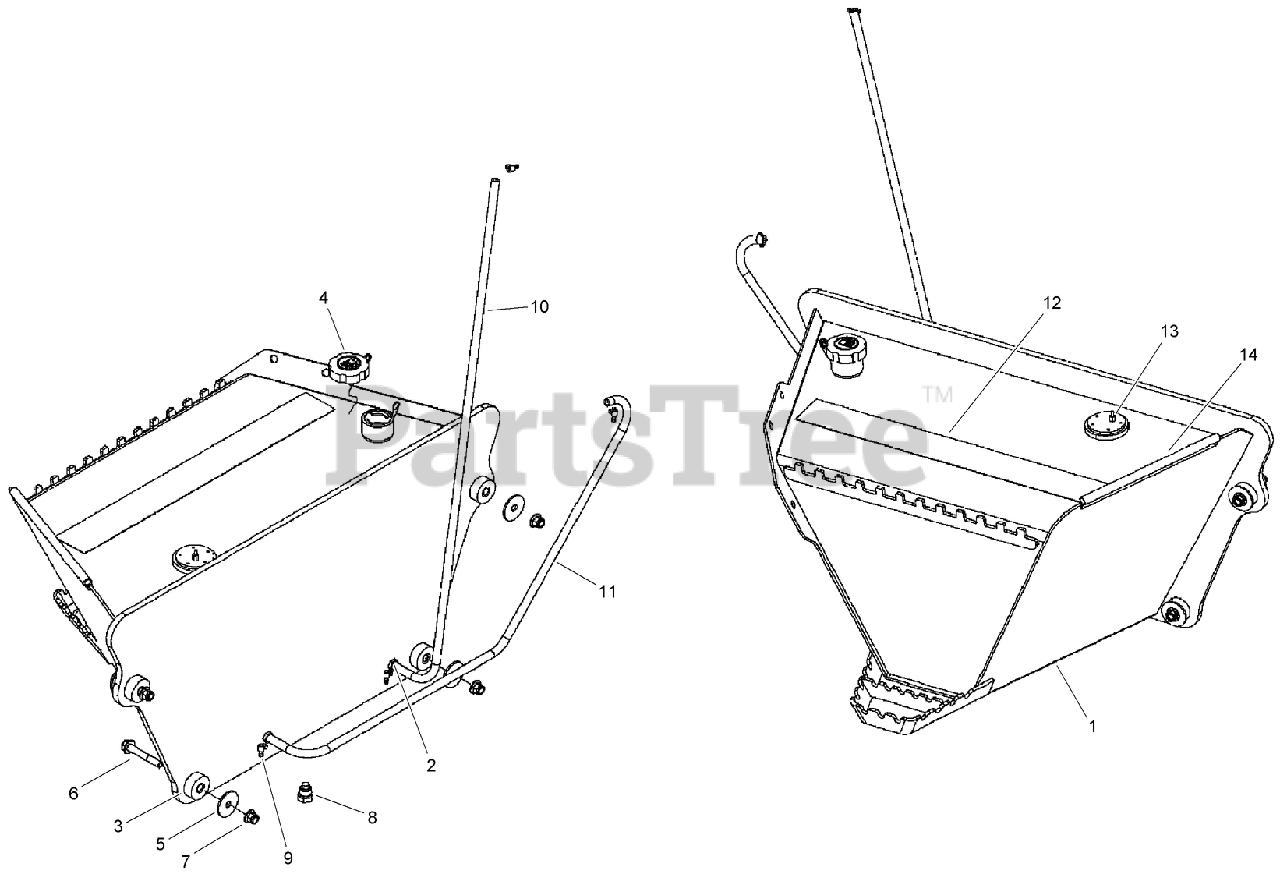

FUEL TANK ASSEMBLY Parts Diagram

  • Title

Toro AU125322

ASM-Engine and Cooling

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125323

WELDMENT-Fuel Tank

$

$

Currently unavailable

2

Toro AU8TA60006

FITTING-STRAIGHT
(Superseded to 353-979)

$17.99

$

Usually ships in 3-6 days

0

3

Toro AU8NG28121

ISOLATOR-MOUNTING, UNIVERSAL

$

$

Currently unavailable

4

Toro AU102188

CAP-DIESEL FUEL W/ LOCK

$

$

Currently unavailable

5

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

6

Toro AU100353

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

7

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

8

Toro AU119908

PLUG-HEX, MAGNETIC

$

$

Currently unavailable

9

Toro AU214-1704

CLAMP-Hose Type M #04

$2.99

$

Usually ships in 3-6 days

0

10

Toro AU109674A1

HOSE-Fuel Tank

$56.99

$

Usually ships in 3-6 days

0

11

Toro AU109674A1

HOSE-Fuel Tank

$56.99

$

Usually ships in 3-6 days

0

12

Toro AUH433994

STRIP-ANTI SKID
(Superseded to AU651187)

$

$

Not available

13

Toro AU125245

SENDER-FUEL LEVEL

$

$

Currently unavailable

14

Toro AU118602

SEAL-Hood

$

$

Currently unavailable
