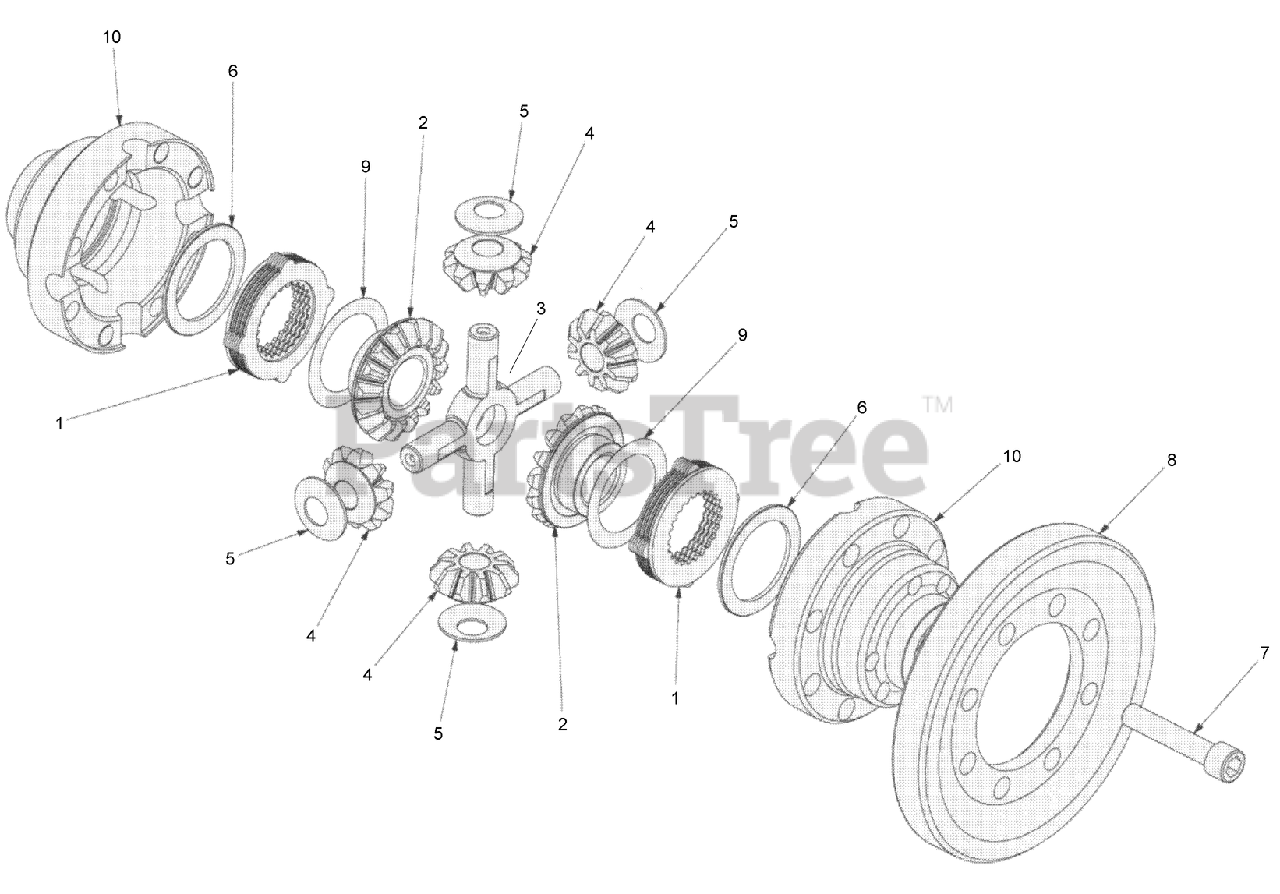

RT 600 - Toro Riding Trencher Traction Unit (2012) FRONT AXLE STEERING COMPONENT ASSEMBLY NO. 2 Parts Diagram

Riding Trencher Traction Unit

FRONT AXLE STEERING COMPONENT ASSEMBLY NO. 2 Parts Diagram

  • Title

Toro AU124914

ASM-Axle, Front

Note: Not illustrated

$

$

Currently unavailable

1

PACKAGE-Disk

Note: Not serviced separately

$

$

Not available

2

WHEEL-Crown

Note: Not serviced separately

$

$

Not available

3

GEAR-Spider

Note: Not serviced separately

$

$

Not available

4

PINION-Side

Note: Not serviced separately

$

$

Not available

5

SHIM-Side Pinion

Note: Not serviced separately

$

$

Not available

6

WASHER-Pinion

Note: Not serviced separately

$

$

Not available

7

SCREW-Socket Head, 12.9, M14 x 70

Note: Not serviced separately

$

$

Not available

8

CROWN-Bevel 4.11:1

Note: Not serviced separately

$

$

Not available

9

SHIM-50.3 x 0.2

Note: Not serviced separately

$

$

Not available

10

HOUSING-Differential

Note: Not serviced separately

$

$

Not available
