RT 600 - Toro Riding Trencher Traction Unit (2012) ENGINE AND COOLING ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

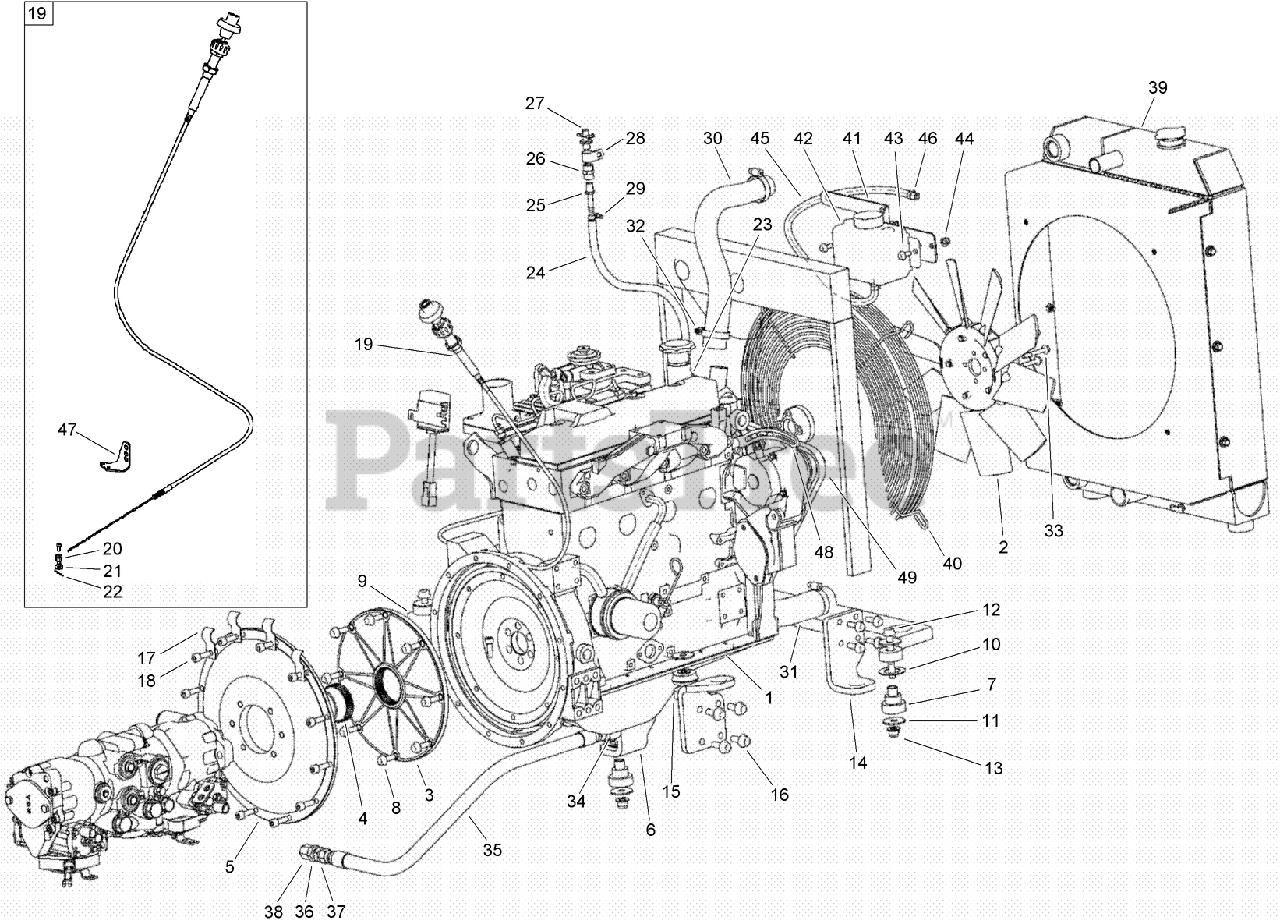

ENGINE AND COOLING ASSEMBLY Parts Diagram

  • Title

Toro AU125312

ASM-Engine and Cooling

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU124870

ENGINE-CUMMINS

$

$

Currently unavailable

2

Toro AU124915

FAN-COOLING

$738.99

$

Usually ships in 3-6 days

0

3

Toro AU125037

FLANGE-Pump

$

$

Currently unavailable

4

Toro AU125036

HUB-Pump

$

$

Currently unavailable

5

Toro AU125035

PLATE-Pump Mount

$

$

Currently unavailable

6

Toro AU125213

PLATE-Engine Mount, Front Left

$

$

Currently unavailable

7

Toro AU8NG28121

ISOLATOR-MOUNTING, UNIVERSAL

$

$

Currently unavailable

8

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

9

Toro AU126014

PLATE-Engine Mount, Rear Left

$

$

Currently unavailable

10

Toro AU113262

SPACER-ISOLATOR

$

$

Currently unavailable

11

Toro AU495-71053

WASHER-0.531 x 1.750 x 0.100 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU100354

SCREW, METRIC FLANGE w/BODY-M12 x 90

$9.49

$

Usually ships in 3-6 days

0

13

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

14

Toro AU125224

PLATE-Engine Mount, Front Right

$

$

Currently unavailable

15

Toro AU126015

PLATE-Engine Mount, Rear Right

$

$

Currently unavailable

16

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

17

Toro AUA37179

CLIP-Harness Support

$4.49

$

Usually ships in 3-6 days

0

18

Toro AU862-10030

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

19

Toro AU112937A1

CABLE-THROTTLE

$173.99

$

Usually ships in 3-6 days

0

20

Toro AUH327494

SWIVEL

$96.99

$

Usually ships in 3-6 days

0

21

Toro AU495-11028

WASHER-FLAT

$

$

Not available

22

Toro AU432-412

PIN-Cotter 0.062 x 0.75 in ZN
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

23

Toro AU217-380

STEM-STRAIGHT, BEAD

$

$

Currently unavailable

24

Toro AUH439168

HOSE-Vent

$12.99

$

Usually ships in 3-6 days

0

25

Toro AU217-151

STEM-STRAIGHT, BEAD

$28.99

$

Usually ships in 3-6 days

0

26

Toro AU217-1101

COUPLING-PIPE (NPTF)

$5.99

$

Usually ships in 3-6 days

0

27

Toro AUH434809

VALVE-SHUTOFF

$22.99

$

Usually ships in 3-6 days

0

28

Toro AU515-23190

CLAMP-Insul 19.0 mm 3/8 in Bolt ZND

$1.99

$

Usually ships in 3-6 days

0

29

Toro AU214-1708

CLAMP-Hose Type M #08

$1.49

$

Usually ships in 3-6 days

0

30

Toro AU126607

HOSE-RADIATOR, UPPER

$

$

Currently unavailable

31

Toro AU118112

HOSE-Lower Radiator

$317.99

$

Usually ships in 3-6 days

0

32

Toro AU214-1432

CLAMP-Hose Type F #32

$1.99

$

Usually ships in 3-6 days

0

33

Toro AU100323

SCREW-FLANGE

$2.49

$

Usually ships in 3-6 days

0

34

Toro AU91-GG308-NP12-22

ADAPTER

$

$

Currently unavailable

35

Toro AU121700

HOSE-Oil Drain

$

$

Currently unavailable

36

Toro AU218-675

UNION-BULKHEAD

$21.99

$

Usually ships in 3-6 days

0

37

Toro AU218-1251

NUT-LOCK, BULKHEAD

$3.49

$

Usually ships in 3-6 days

0

38

Toro AU218-756

FITTING-CAP

$6.49

$

Usually ships in 3-6 days

0

39

Toro AU125209

COOLING ASM

$

$

Currently unavailable

40

Toro AU8HX30005-2

GUARD-Fan

$

$

Currently unavailable

41

Toro AU125515

WELDMENT-Overflow Tank Mount

$

$

Currently unavailable

42

Toro AU109352

TANK-Overflow

$

$

Currently unavailable

43

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

44

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

45

Toro AUA171871

HOSE-Overflow Out
(Superseded to AUL126767)

$

$

Not available

46

Toro AUA171099

CLAMP-Hose
(Superseded to 92-2379)

$0.99

$

Usually ships in 3-6 days

0

47

Toro AU116960

BRACKET-Throttle
(Superseded to AU116960-03)

$

$

Not available

48

Toro AU8NG10019-51

BRACKET-Alternator

$

$

Currently unavailable

49

Toro AU126606

BELT-Fan

$

$

Currently unavailable

50

Toro AU126608

FOAM-Top, Radiator

Note: Not illustrated

$

$

Currently unavailable

51

Toro AU126609

FOAM-Side, Radiator

Note: Not illustrated

$

$

Currently unavailable

52

Toro AU126610

FOAM-Bottom, Radiator

Note: Not illustrated

$

$

Currently unavailable

53

Toro AU119554

HEATER-Block

Note: Optional Equipment

$

$

Currently unavailable

54

Toro AU124870

ENGINE-CUMMINS

Note: Not illustrated

$

$

Currently unavailable

55

Toro AUD139225

FILTER-Inline Fuel

Note: Not illustrated

$30.99

$

Usually ships in 3-6 days

0

56

Toro AU123818

FILTER-Engine Oil
(Superseded to 130-8860)

Note: Not illustrated

$44.99

$

Usually ships in 3-6 days

0
