RT 600 - Toro Riding Trencher Traction Unit (2012) EMERGENCY PARKING BRAKE ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

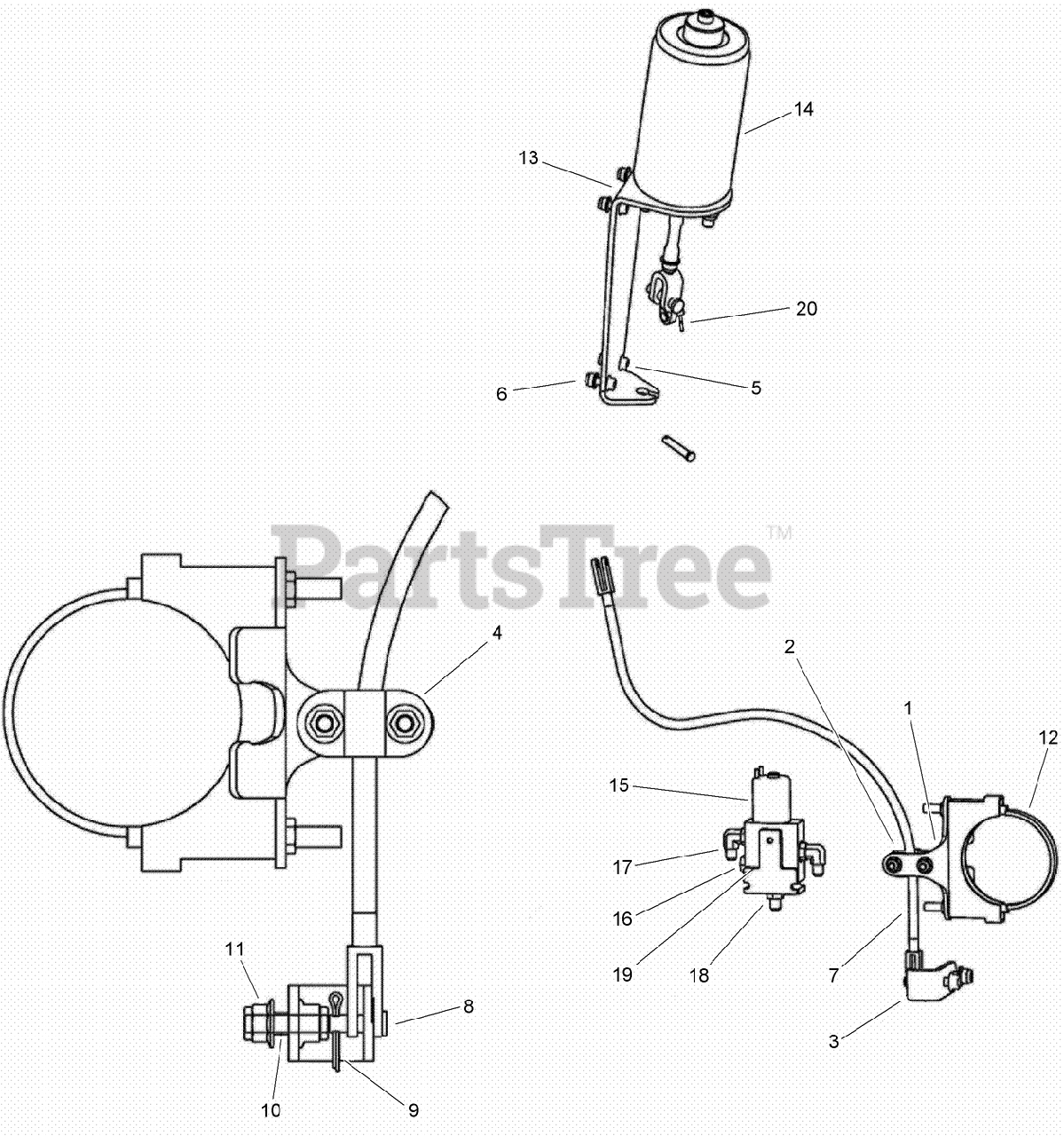

EMERGENCY PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

Toro AU125405

ASM-PARKING BRAKE

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU126600

BRACKET-Parking Brake Cable

$

$

Currently unavailable

2

Toro AUD129747

SPACER

$57.99

$

Usually ships in 3-6 days

0

3

Toro AU126601

PLATE-Parking Brake Mount

$

$

Currently unavailable

4

Toro AUD121608

CLAMP-Cable

$19.99

$

Usually ships in 3-6 days

0

5

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

6

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU87405607

BRAKE CABLE ASM

$171.99

$

Usually ships in 3-6 days

0

8

Toro AUH44206

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

9

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 20+

0

10

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

11

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

12

Toro AU100772

CLAMP-4 Muffler

$27.99

$

Usually ships in 3-6 days

0

13

Toro AU127784

MOUNT-Parking Brake

$

$

Currently unavailable

14

Toro AU126603

HYD CYLINDER RELEASE ASM

$

$

Currently unavailable

15

Toro AU187505C91

SOLENOID VALVE ASM

$244.99

$

Usually ships in 3-6 days

0

16

Toro AU218-5155

PLUG-Hex Hd, ORB 3/8

$3.99

$

Usually ships in 3-6 days

0

17

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

18

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.49

$

Usually ships in 3-6 days

0

19

Toro AU100077

PLATE-Spacer

$

$

Currently unavailable

20

Toro AU126904

LINK-CABLE, PARKING BRAKE

$

$

Currently unavailable
