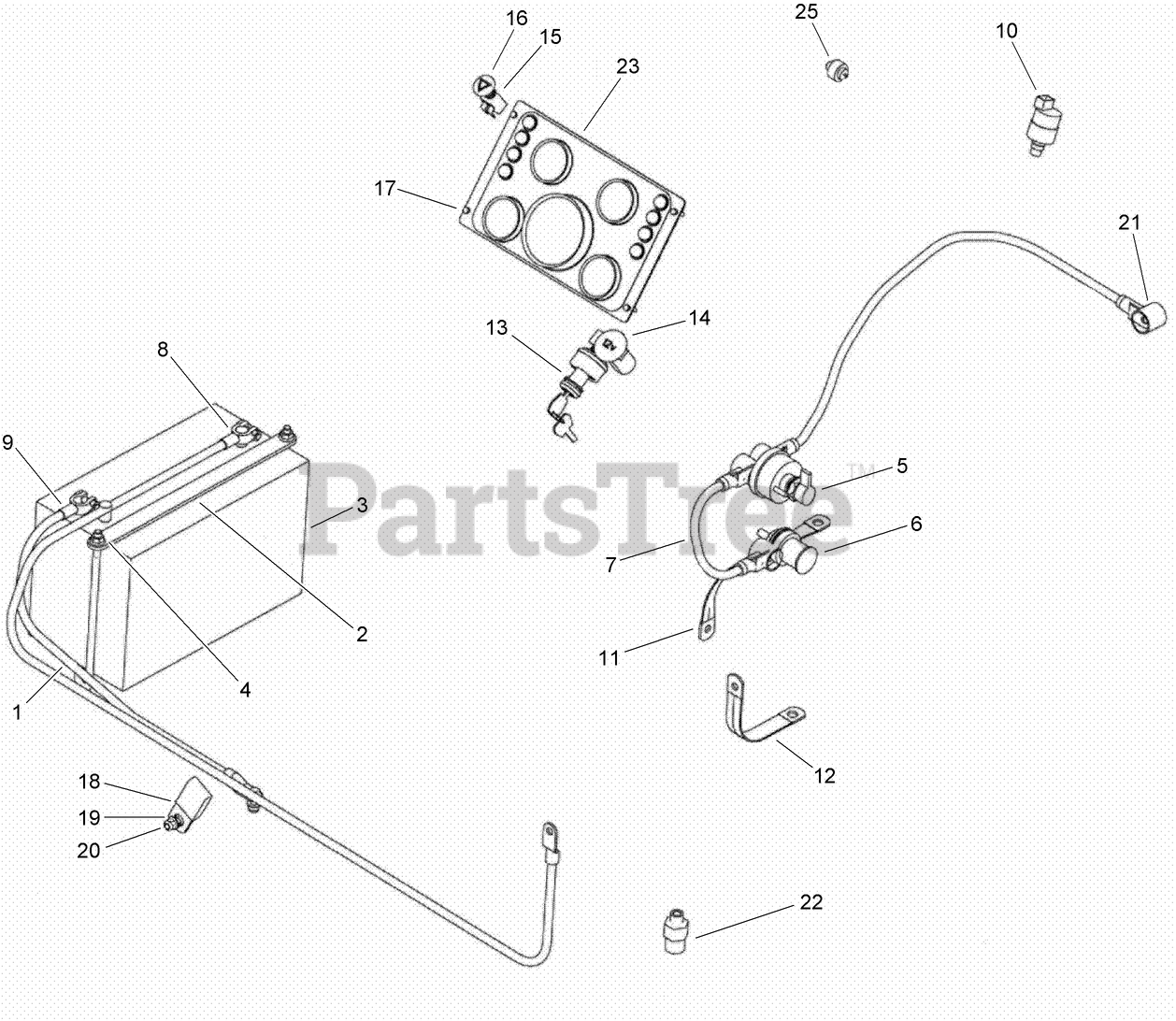

RT 600 - Toro Riding Trencher Traction Unit (2012) ELECTRICAL ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

Toro AU125435

ASM-Engine and Cooling

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125609

BATTERY (purchase locally)

$

$

Currently unavailable

2

Toro AU117616

PLATE-Battery Hold Down
(Superseded to AU117616-03)

$

$

Not available

3

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$41.99

$

Usually ships in 3-6 days

0

4

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

5

Toro AUR52278

SWITCH-DISCONNECT, MASTER

$159.99

$

Usually ships in 3-6 days

0

6

Toro AU105186

POST-BATTERY, REMOTE

$84.99

$

Usually ships in 3-6 days

0

7

Toro AU108132

CABLE-Positive

$

$

Currently unavailable

8

Toro AU108129

CABLE-Positive

$

$

Currently unavailable

9

Toro AU108130

CABLE-Ground

$147.99

$

Usually ships in 3-6 days

0

10

Toro AU293797A1

SWITCH ASM

$37.99

$

Usually ships in 3-6 days

0

11

Toro AUD127018

STRAP-GROUNDING

$61.99

$

Usually ships in 3-6 days

0

12

Toro AUD127018

STRAP-GROUNDING

$61.99

$

Usually ships in 3-6 days

0

13

Toro AU103815

ASSEMBLY - Ignition Switch

$65.99

$

Usually ships in 3-6 days

0

14

Toro AU22000121

RECEPTICAL-12V DC
(Superseded to 109-9376)

$51.99

$

Usually ships in 3-6 days

0

15

Toro AUD74330

SWITCH-Light

$25.99

$

Usually ships in 3-6 days

0

16

Toro AUD88134

KNOB-Diff Lock

$15.99

$

Usually ships in 3-6 days

0

17

Toro AU463-11012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

18

Toro AUA180154

CLAMP-P Type 4 x 1/2

$21.99

$

Usually ships in 3-6 days

0

19

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

20

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU114443

CABLE-Battery, Positive

$

$

Currently unavailable

22

Toro AU443897A1

SWITCH-PRESSURE

$166.99

$

Usually ships in 3-6 days

0

23

Toro AU125255

INSTRUMENT PANEL ASM

$

$

Currently unavailable

24

Toro AU125983

HARNESS-Electrical

Note: Not illustrated

$

$

Currently unavailable

25

Toro AU127738

SENDER-WATER TEMP

$

$

Currently unavailable
