RT 600 - Toro Riding Trencher Traction Unit (2012) D100 BACKHOE SWING CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

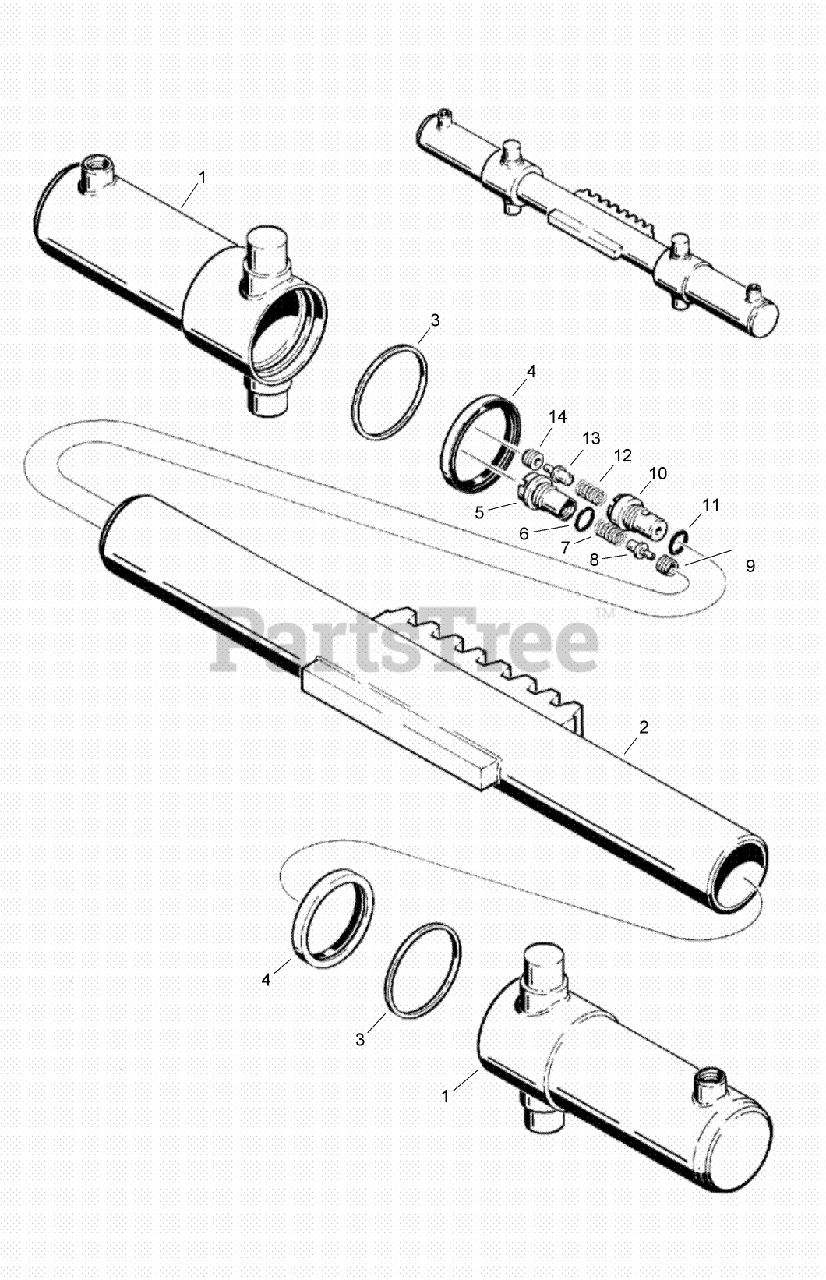

D100 BACKHOE SWING CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AU113539

CYLINDER-Hydraulic

Note: Not illustrated

$7120.99

$

Usually ships in 3-6 days

0

1

Toro AU113528

TUBE-swing cylinder, D100 backhoe

$

$

Currently unavailable

2

Toro AU113540

ROD-piston, swing cylinder, D100 backhoe

$

$

Currently unavailable

3

Seal-Lip

Note: Not serviced separately

$

$

Not available

3

Seal-Lip

Note: Included in a service kit or in an assembly

$

$

Not available

4

SEAL-dust, tube to piston rod

Note: Included in a service kit or in an assembly

$

$

Not available

4

SEAL-dust, tube to piston rod

Note: Not serviced separately

$

$

Not available

Toro AUH53033

VALVE ASM-relief

Note: Not illustrated

$1157.99

$

Usually ships in 3-6 days

0

5

BODY-relief valve

Note: Not serviced separately

$

$

Not available

6

Toro AU238-5116

O-RING-3/4 ID x 3/32 inch wide

Note: Included in a service kit or in an assembly

$

$

Not available

7

Toro AUF37883

SPRING-relief valve

$

$

Currently unavailable

8

Toro AUH138362

POPPET-relief valve

$56.99

$

Usually ships in 3-6 days

0

9

SEAT-relief valve

Note: Not serviced separately

$

$

Not available

Toro AUH53025

VALVE ASM-relief

Note: Not illustrated

$1156.99

$

Usually ships in 3-6 days

0

10

BODY-relief valve

Note: Not serviced separately

$

$

Not available

11

Toro AU238-5116

O-RING-3/4 ID x 3/32 inch wide

Note: Included in a service kit or in an assembly

$

$

Not available

12

Toro AUF37883

SPRING-relief valve

$

$

Currently unavailable

13

Toro AUH138362

POPPET-relief valve

$56.99

$

Usually ships in 3-6 days

0

14

SEAT-relief valve

Note: Not serviced separately

$

$

Not available

Toro AUH53041

Kit, seal (includes noted seals and o-ring above)
(Superseded to AU398166A1)

Note: Included in a service kit or in an assembly

$161.99

$

Usually ships in 3-6 days

0

Toro AUH53041

Kit, seal (includes noted seals and o-ring above)
(Superseded to AU398166A1)

Note: Not illustrated

$161.99

$

Usually ships in 3-6 days

0
