RT 600 - Toro Riding Trencher Traction Unit (2012) D100 BACKHOE ASSEMBLY NO. 3 Parts Diagram

Riding Trencher Traction Unit

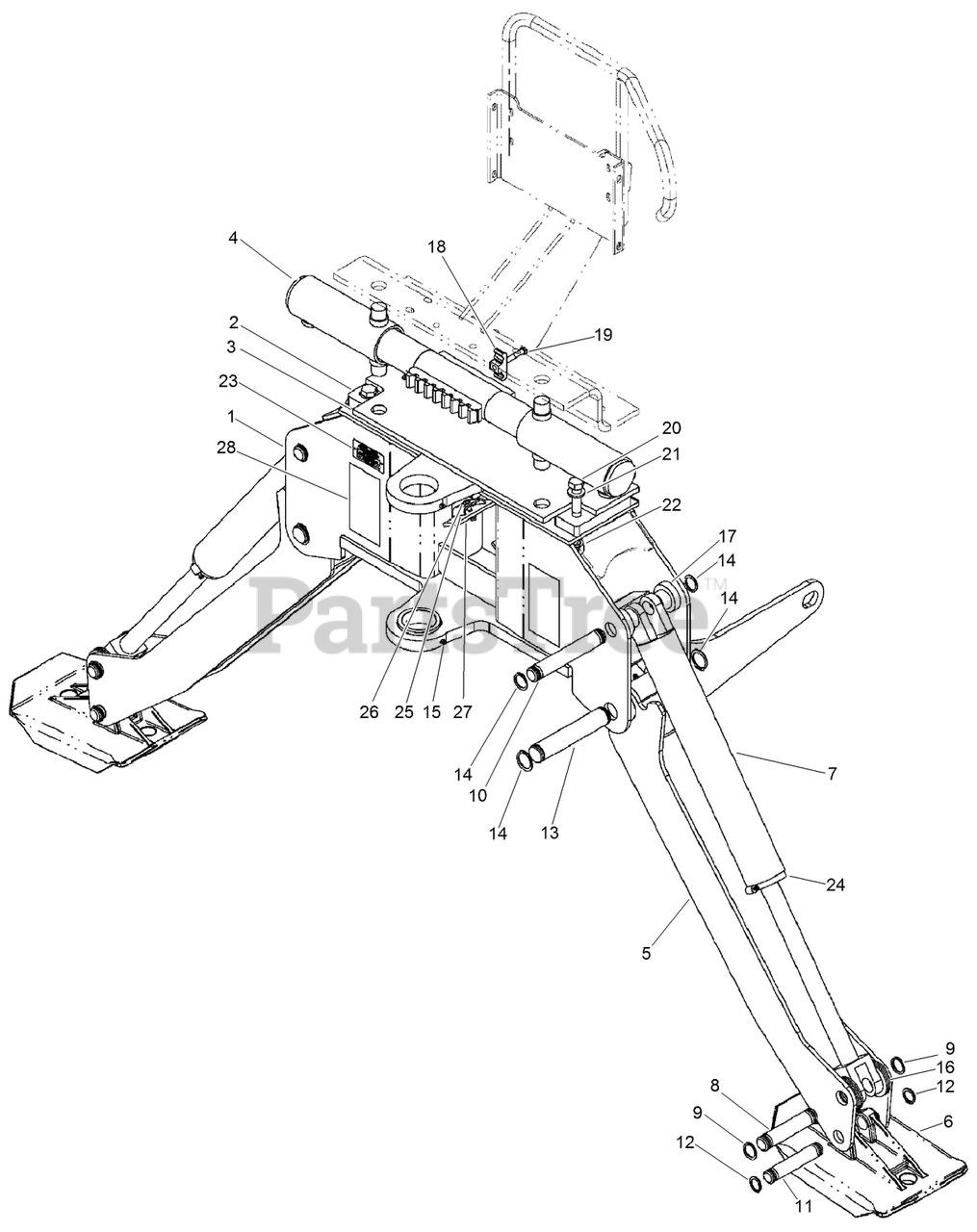

D100 BACKHOE ASSEMBLY NO. 3 Parts Diagram

  • Title

Toro AU125584

ASM-Basic Backhoe, D100

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116156A1

WELDMENT-Frame, Bachhoe Mounting

$

$

Currently unavailable

2

Toro AUH672652

ASM-Plate, Upper

$

$

Currently unavailable

3

Toro AUH434386

PLATE-Mounting

$

$

Currently unavailable

4

Toro AU113539

CYLINDER-Hydraulic

$7120.99

$

Usually ships in 3-6 days

0

5

Toro AU116999A1

WELDMENT-Stabilizer

$

$

Currently unavailable

6

Toro AUH434430

PAD-Stabilizer Cast

$

$

Not available

7

Toro AU123115

HYD CYLINDER ASM

$

$

Not available

8

Toro AUH434380

PIN-STABILIZER (CYLINDER ROD END)

$

$

Currently unavailable

9

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

Usually ships in 3-6 days

0

10

Toro AUH434381

PIN-STABILIZER CYLINDER TO ARM

$

$

Currently unavailable

11

Toro AUH434379

PIN (STABILIZER PAD END)

$

$

Currently unavailable

12

Toro AU103-16112

RING-RETAINING
(Superseded to 100-6785)

$4.99

$

Usually ships in 3-6 days

0

13

Toro AUH434382

PIN-Stabilizer Arm

$

$

Currently unavailable

14

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

15

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

16

Toro AU495-21138

WASHER-FLAT (HARDENED)

$

$

Not available

17

Toro AU103502A1

BUSHING

$

$

Currently unavailable

18

Toro AUD120613

CLAMP-Tube

$

$

Currently unavailable

19

Toro AU426-632

BOLT-Hex Hd 3/8 x 2 GR5 ZND

$1.99

$

Usually ships in 3-6 days

0

20

Toro AU426-1240

BOLT

$4.49

$

Usually ships in 3-6 days

0

21

Toro AUH426817

WASHER-Flat

$13.99

$

Usually ships in 3-6 days

0

22

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

23

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

24

Toro AU214-1456

CLAMP-Hose #56

$7.49

$

Usually ships in 3-6 days

0

25

Toro AUH046888

CLAMP-Tube, 7/8

$

$

Currently unavailable

26

Toro AU426-524

BOLT-Hex, 5/16 NC x 1-1/2 inch
(Superseded to 5-1470)

$0.99

$

In Stock, Qty 10

0

27

Toro AU230-4215

NUT-Prev Trq 5/16 GRA CAD NONDIR

$

$

Not available

28

Toro AU419481A1

DECAL-Danger, BH Crush Hazard

$

$

Currently unavailable
