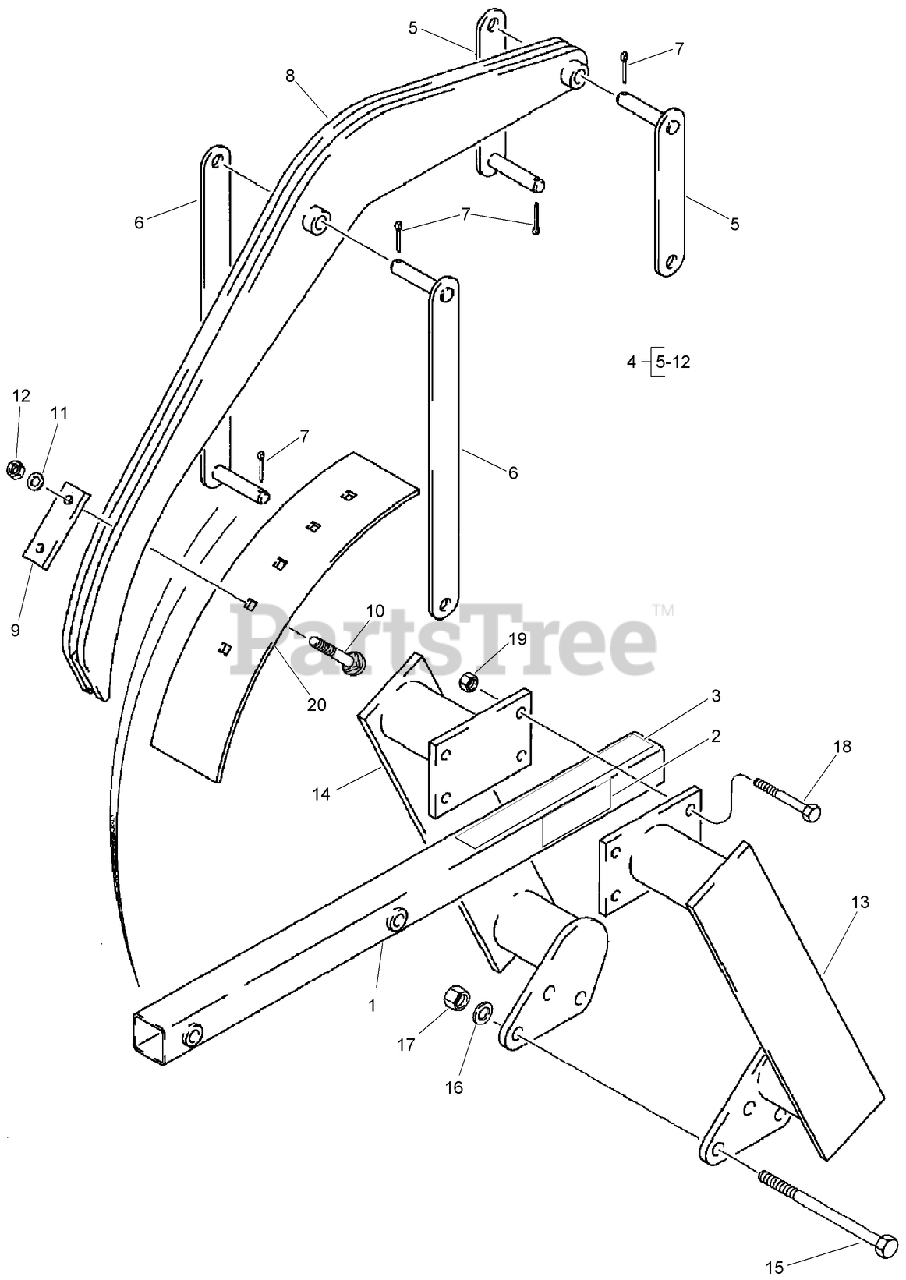

RT 600 - Toro Riding Trencher Traction Unit (2012) CRUMBER, DIGGER CHAIN GUARD AND MOUNTING ASSEMBLY HEAVY DUTY PLANETARY DRIVE TRENCHER Parts Diagram

Riding Trencher Traction Unit

CRUMBER, DIGGER CHAIN GUARD AND MOUNTING ASSEMBLY HEAVY DUTY PLANETARY DRIVE TRENCHER Parts Diagram

  • Title

Toro AU113589A1

ASM-crumber, 4 foot, heavy duty planetary trencher (consists of items 1-4)

Note: Not illustrated

$

$

Currently unavailable

Toro AU115639A1

ASM-crumber, 5 foot, heavy duty planetary trencher (consists of items 1-4)

Note: Not illustrated

$

$

Currently unavailable

Toro AU115640A1

ASM-crumber, 6 foot, heavy duty planetary trencher (consists of items 1-4)

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU113586A1

BOOM-crumber, 4 foot, heavy duty planetary trencher
(Superseded to 127-1280)

$

$

Not available

1

Toro AU115637A1

BOOM-crumber, 5 foot, heavy duty planetary trencher
(Superseded to 127-1281)

$

$

Not available

1

Toro AU115638A1

BOOM-crumber, 6 foot, heavy duty planetary trencher

$

$

Currently unavailable

1

Toro AU120625A1

GUARD-digging chain, 4 foot, units without crumber, if used

$

$

Not available

1

Toro AUH672675

GUARD-digging chain, 5 foot, units without crumber, if used

$

$

Not available

1

Toro AU111499A1

GUARD-digging chain, 6 foot, units without curmber, if used

$

$

Currently unavailable

2

Toro AU126332

DECAL-Danger, Entanglement Hazard

$

$

Currently unavailable

3

Toro AUH438910

DECAL-Danger

$28.99

$

Usually ships in 3-6 days

0

4

Toro AU113588A1

I / BASIC CRUMBER ASM

$

$

Not available

5

Toro AU113587A1

LINK-boom to crumber, short
(Superseded to AU113587A1-03)

$

$

Not available

6

Toro AUH659151

LINK-boom to crumber, long
(Superseded to AUH659151-03)

$137.99

$

Usually ships in 3-6 days

0

7

Toro AU432-1220

PIN-cotter, 3/16 x 1-1/4 inch

$1.49

$

Usually ships in 3-6 days

0

8

Toro AUH673071

BRACKET-crumber blade
(Superseded to AUH673071-03)

$

$

Not available

9

Toro AUH309450

PLATE-spacer, bracket to blade
(Superseded to AUH309450-03)

$45.99

$

Usually ships in 3-6 days

0

10

Toro AU411-864

BOLT-CARR

$7.49

$

Usually ships in 3-6 days

0

11

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

12

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU224363A1

MOUNT-Crumber, RH

$

$

Not available

13

Toro AU117777A1

MOUNT-Crumber LH
(Superseded to AU117777A1-03)

$

$

Not available

14

Toro AU224364A1

MOUNT-Crumber, LH

$

$

Not available

14

Toro AU117778A1

MOUNT-Crumber RH
(Superseded to AU117778A1-03)

$

$

Not available

15

Toro AU426-12112

BOLT

$

$

Not available

16

Toro AUH426817

WASHER-Flat

$13.99

$

Usually ships in 3-6 days

0

17

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

18

Toro AU426-864

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

19

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

20

Toro AUH127480

BLADE-crumber, 6 inch wide, if used
(Superseded to AUH127480-03)

$223.99

$

Usually ships in 3-6 days

0

20

Toro AUH60087

BLADE-crumber, 8 inch wide, if used
(Superseded to AUH60087-03)

$

$

Not available

20

Toro AUH60103

BLADE-crumber, 10 inch wide, if used

$374.99

$

Usually ships in 3-6 days

0

20

Toro AUH60129

BLADE-crumber, 11 inch wide, if used

$

$

Currently unavailable

20

Toro AUH60145

BLADE-crumber, 13 inch wide, if used

$

$

Currently unavailable

20

Toro AUH60160

BLADE-crumber, 16 inch wide, if used

$

$

Currently unavailable
