RT 600 - Toro Riding Trencher Traction Unit (2012) CHASSIS, HOOD AND COVER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

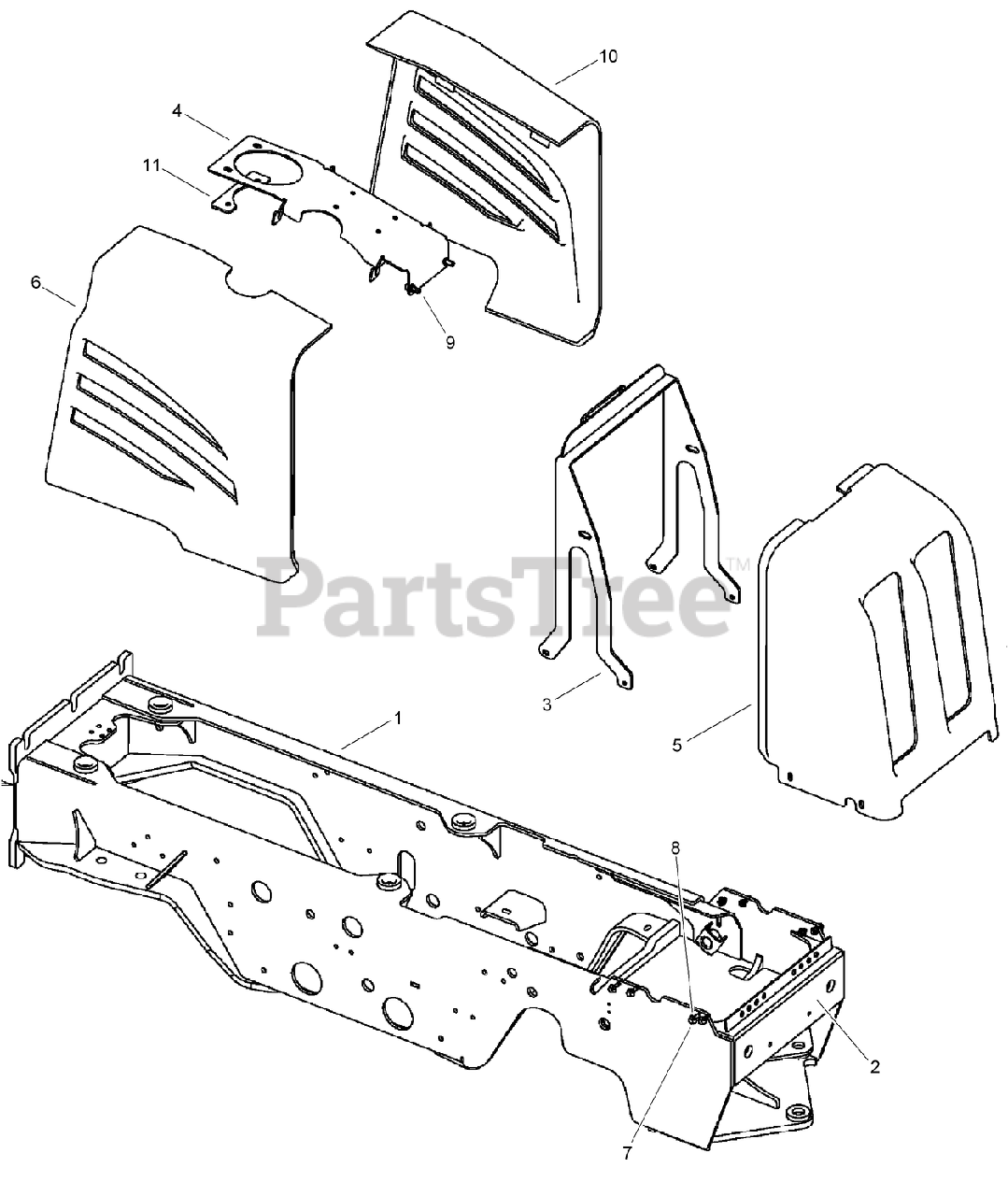

CHASSIS, HOOD AND COVER ASSEMBLY Parts Diagram

  • Title

Toro AU125304

ASM-Chassis, Hood and Covers

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125284

WELDMENT-Chassis

$

$

Currently unavailable

2

Toro AU232-41120

NUT-HEX

$14.99

$

Usually ships in 3-6 days

0

3

Toro AU125441

ASM-Hood Support

$

$

Currently unavailable

4

Toro AU125328

WELDMENT-Hood Support Plate

$

$

Currently unavailable

5

Toro AU125495

CLIP-Nose

$

$

Currently unavailable

6

Toro AU125499

HOOD-RH

$

$

Not available

7

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

8

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

10

Toro AU125500

HOOD-LH

$

$

Not available

11

Toro AU125509

PLATE-Spacer

$

$

Currently unavailable
