RT 600 - Toro Riding Trencher Traction Unit (2012) BULKHEAD PLATE HYDRAULIC COMPONENT ASSEMBLY NO. 15 Parts Diagram

Riding Trencher Traction Unit

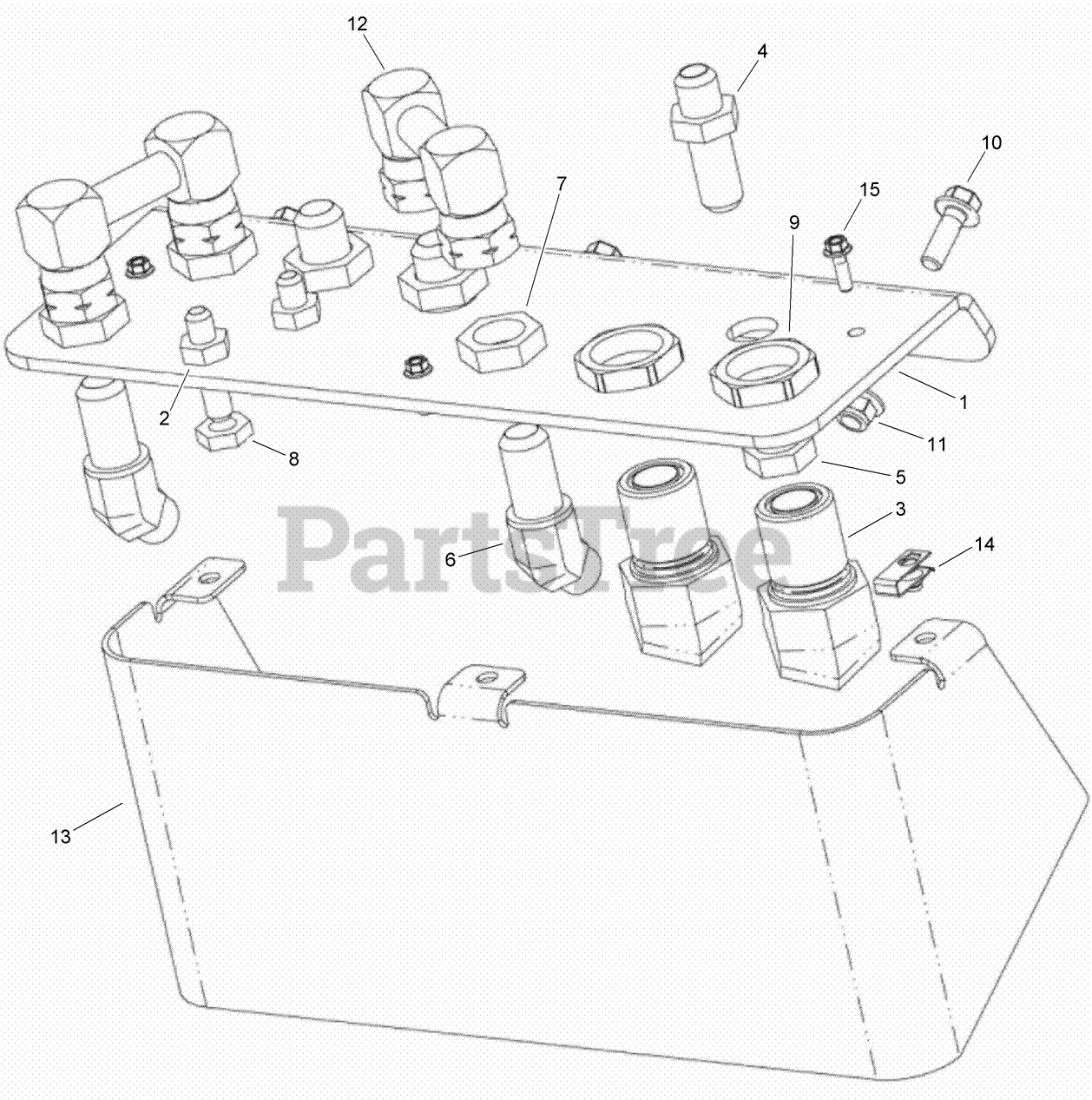

BULKHEAD PLATE HYDRAULIC COMPONENT ASSEMBLY NO. 15 Parts Diagram

  • Title

Toro AU125330

HYDRAULICS GROUP

Note: Not illustrated

$

$

Currently unavailable

Toro AU127045

SCHEMATIC-Hydraulics

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125425

PLATE-Bulkhead Mount

$

$

Currently unavailable

2

Toro AU218-673

UNION-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

3

Toro AU201-366

ELBOW-BULKHEAD, 45

$100.99

$

Usually ships in 3-6 days

0

4

Toro AU218-675

UNION-BULKHEAD

$21.99

$

Usually ships in 3-6 days

0

5

Toro AU218-1251

NUT-LOCK, BULKHEAD

$3.49

$

Usually ships in 3-6 days

0

6

Toro AU218-717

ELBOW-BULKHEAD, 45

$37.99

$

Usually ships in 3-6 days

0

7

Toro AU218-1256

NUT-LOCK, BULKHEAD

$3.99

$

Usually ships in 3-6 days

0

8

Toro AU218-1254

NUT-LOCK, BULKHEAD

$4.49

$

Usually ships in 3-6 days

0

9

Toro AU201-908

NUT-LOCK, BULKHEAD

$11.99

$

Usually ships in 3-6 days

0

10

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

11

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

12

Toro AUH673212

FITTING-SPECIAL

$124.99

$

Usually ships in 3-6 days

0

13

Toro AU126562

PLATE-Cover

$

$

Currently unavailable

14

Toro AU100861

NUT-U

$6.49

$

Usually ships in 3-6 days

0

15

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0
