RT 600 - Toro Riding Trencher Traction Unit (2012) BOOM, DIPPER, AND BUCKET CYLINDER ASSEMBLIES Parts Diagram

Riding Trencher Traction Unit

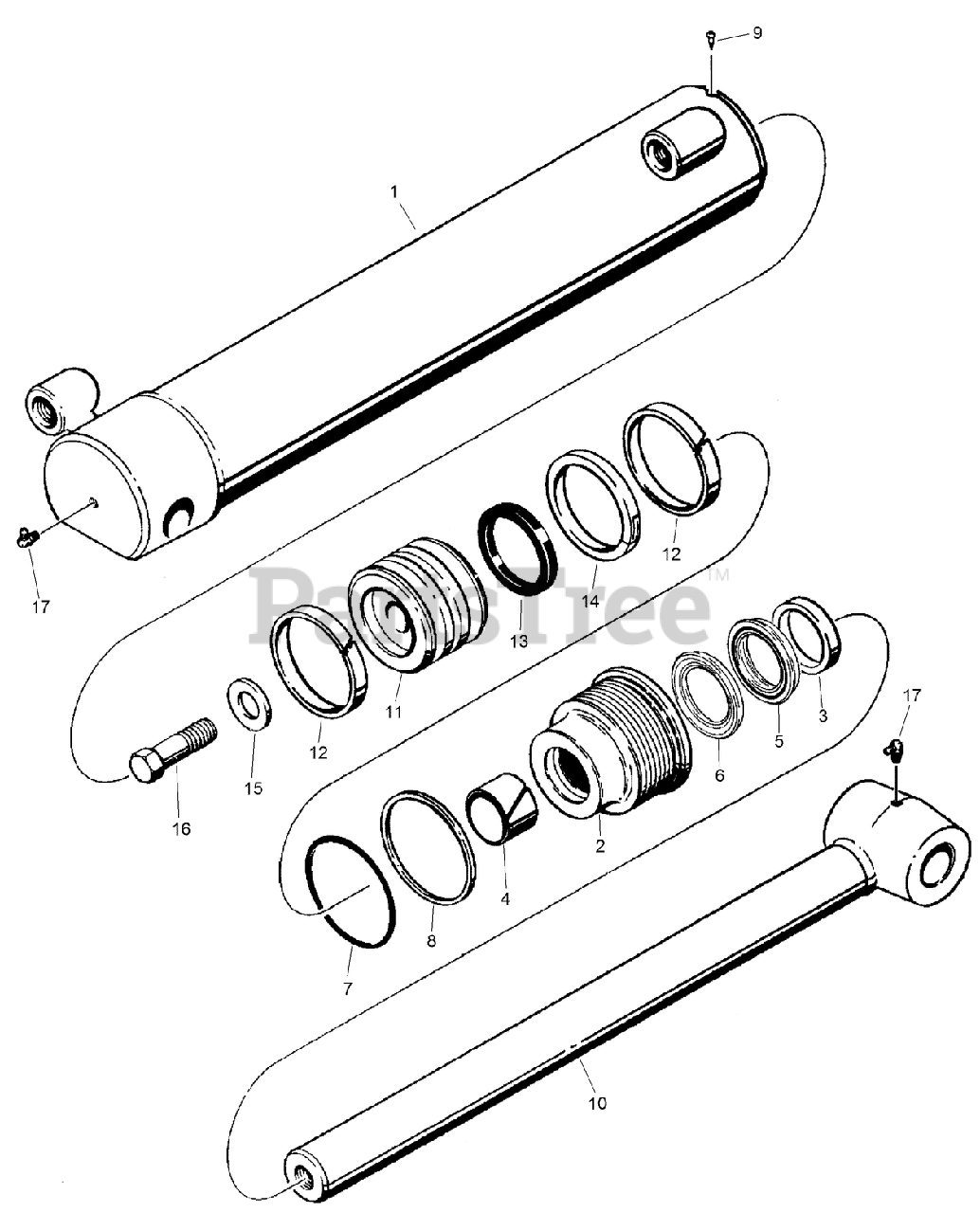

BOOM, DIPPER, AND BUCKET CYLINDER ASSEMBLIES Parts Diagram

  • Title

Toro AUG100936

CYLINDER-Backhoe

Note: Not illustrated

$

$

Not available

1

Toro AUG100937

TUBE-cylinder

$

$

Currently unavailable

GLAND ASM-cylinder, has identification groove on outer lip

Note: Not illustrated

$

$

Not available

GLAND ASM-cylinder, has identification groove on outer lip

Note: Not serviced separately

$

$

Not available

2

Toro AU1542962C1

GLAND-cylinder

$

$

Not available

3

Toro AUD95142

WIPER-ROD

Note: Included in a service kit or in an assembly

$21.99

$

Usually ships in 3-6 days

0

4

Toro AUG102424

BEARING-ROD

Note: Included in a service kit or in an assembly

$

$

Not available

Toro AU1542874C1

KIT-Seal, NSS, order 1543256C1 kit, see below

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

Toro AU1542874C1

KIT-Seal, NSS, order 1543256C1 kit, see below

Note: Not illustrated

$

$

Currently unavailable

5

Toro AU1542997C1

SEAL-Rod, NSS, order 1543256C1 kit, see below

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

6

Toro AU1542996C1

SEAL-Buffer, NSS, order 1543256C1 kit, see below

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro AU238-5234

O-RING-3 ID x 1/8 inch wide, gland

Note: Included in a service kit or in an assembly

$

$

Not available

8

Toro AUG32122

RING-backup, gland O-ring

Note: Included in a service kit or in an assembly

$5.49

$

Usually ships in 3-6 days

0

9

Toro AU276-2446

SCREW

$

$

Not available

10

Toro AUG101357

ROD-piston, 38 mm (1-1/2 inch) diameter

$

$

Not available

11

Toro AUG100442

PISTON-cylinder

$

$

Not available

12

Toro AUG100449

RING-WEAR

Note: Included in a service kit or in an assembly

$

$

Not available

13

Toro AUG100444

RING-LOADER

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

14

Toro AUG102288

SEAL-Piston

Note: Included in a service kit or in an assembly

$

$

Not available

15

Toro AUS94643

WASHER-flat, special, hardened

$18.99

$

Usually ships in 3-6 days

0

16

Toro AU25863R1

BOLT-hex, 3/4 NF x 2-1/2 inch, grade 8

$

$

Not available

17

Toro AU219-55

FITTING-grease, 90 degree, 1/8 PT x 27/32 inch

$

$

Not available

Toro AU1543252C1

KIT-seal, includes all items with an asterisk, a buffer seal not used

Note: Not illustrated

$

$

Not available

Toro AU1543252C1

KIT-seal, includes all items with an asterisk, a buffer seal not used

Note: Included in a service kit or in an assembly

$

$

Not available
