RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE SWING CYLINDER HD125 BACKHOE Parts Diagram

Riding Trencher Traction Unit

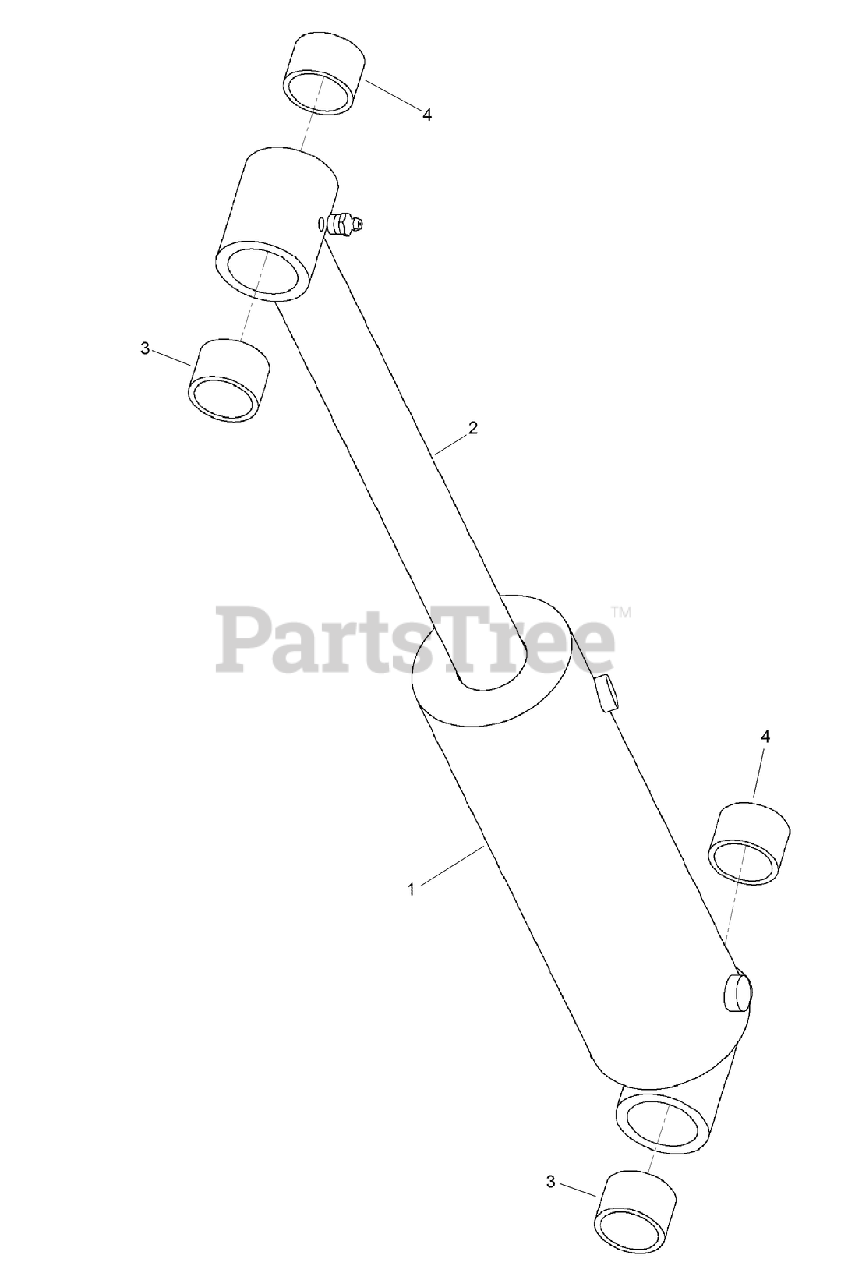

BACKHOE SWING CYLINDER HD125 BACKHOE Parts Diagram

  • Title

Toro AU103336

HYD CYLINDER ASM

Note: Not illustrated

$

$

Currently unavailable

1

TUBE-swing cylinder

Note: Not serviced separately

$

$

Not available

2

ROD-PISTON

Note: Not serviced separately

$

$

Not available

3

Toro AU103337

BUSHING-ROD END, CYLINDER

$

$

Currently unavailable

4

Toro AU210-1

FITTING-Lube, 1/8-27 Dryseal PTF

$

$

Currently unavailable

5

Toro AU103444

SEAL KIT

Note: Not illustrated

$

$

Currently unavailable
