RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT Parts Diagram

Riding Trencher Traction Unit

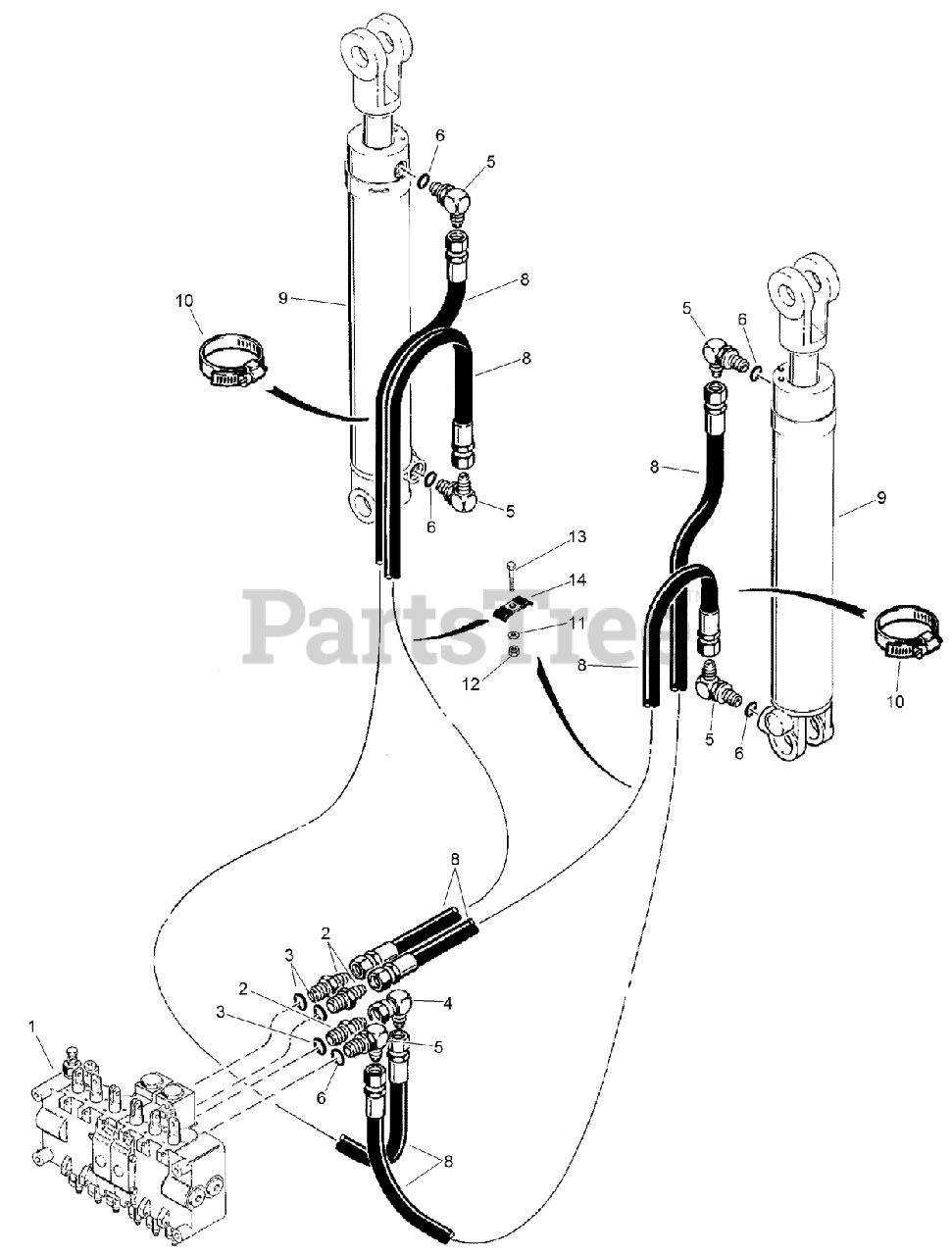

BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT Parts Diagram

  • Title

1

Toro AU125583

VALVE-Backhoe, w/Special Low Leak Spools

$

$

Currently unavailable

2

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

3

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

6

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUH437862

HOSE-1800 mm (70-7/8 inch) long, to stabilizer cylinders

$

$

Currently unavailable

9

Toro AU123115

HYD CYLINDER ASM

$

$

Not available

10

Toro AU214-1456

CLAMP-Hose #56

$7.49

$

Usually ships in 3-6 days

0

11

Toro AUH426775

WASHER-Flat 5/16 HT

$

$

Not available

12

Toro AU230-4215

NUT-Prev Trq 5/16 GRA CAD NONDIR

$

$

Not available

13

Toro AU426-524

BOLT-Hex, 5/16 NC x 1-1/2 inch
(Superseded to 5-1470)

$0.99

$

In Stock, Qty 10

0

14

Toro AUH46888

CLAMP

$36.99

$

Usually ships in 3-6 days

0
