RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE STABILIZER CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

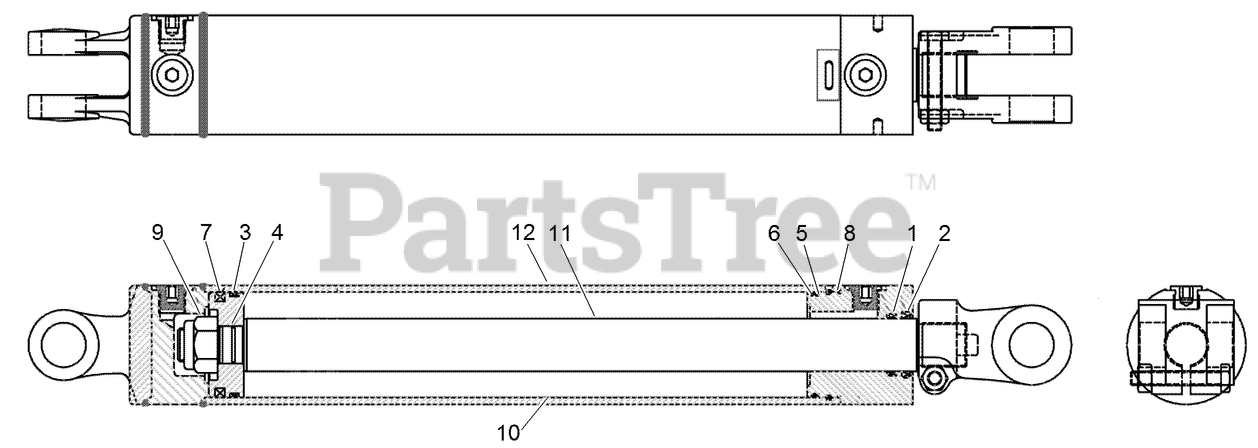

BACKHOE STABILIZER CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AU123115

HYD CYLINDER ASM

Note: Not illustrated

$

$

Not available

1

Toro AU123149

SEAL-ROD

$

$

Currently unavailable

2

Toro AU123148

SEAL-WIPER

$

$

Currently unavailable

3

Toro AU123147

SEAL-Piston

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

4

Toro AU123146

O-RING

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro AU123145

RING-BACKUP

$

$

Currently unavailable

6

Toro AU123144

O-RING

$

$

Currently unavailable

7

Toro AU123143

RING-WEAR, PISTON

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro AU123142

O-RING

$

$

Currently unavailable

9

Toro AU122531

NUT-CYLINDER PISTON

$

$

Currently unavailable

10

Toro AU122529

PISTON-Cylinder

$

$

Currently unavailable

11

Toro AU122526

ROD-Piston

$

$

Currently unavailable

12

Toro AU122525

TUBE-Cylinder

$

$

Currently unavailable

13

GLAND-Cylinder End

Note: Not serviced separately

$

$

Not available

14

Toro AU122530

SEAL KIT-Piston (consists of items 3, 4 and 7)

Note: Not illustrated

$

$

Currently unavailable

15

SEAL KIT-Gland

Note: Not serviced separately

$

$

Not available
