RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE - HD125 Parts Diagram

Riding Trencher Traction Unit

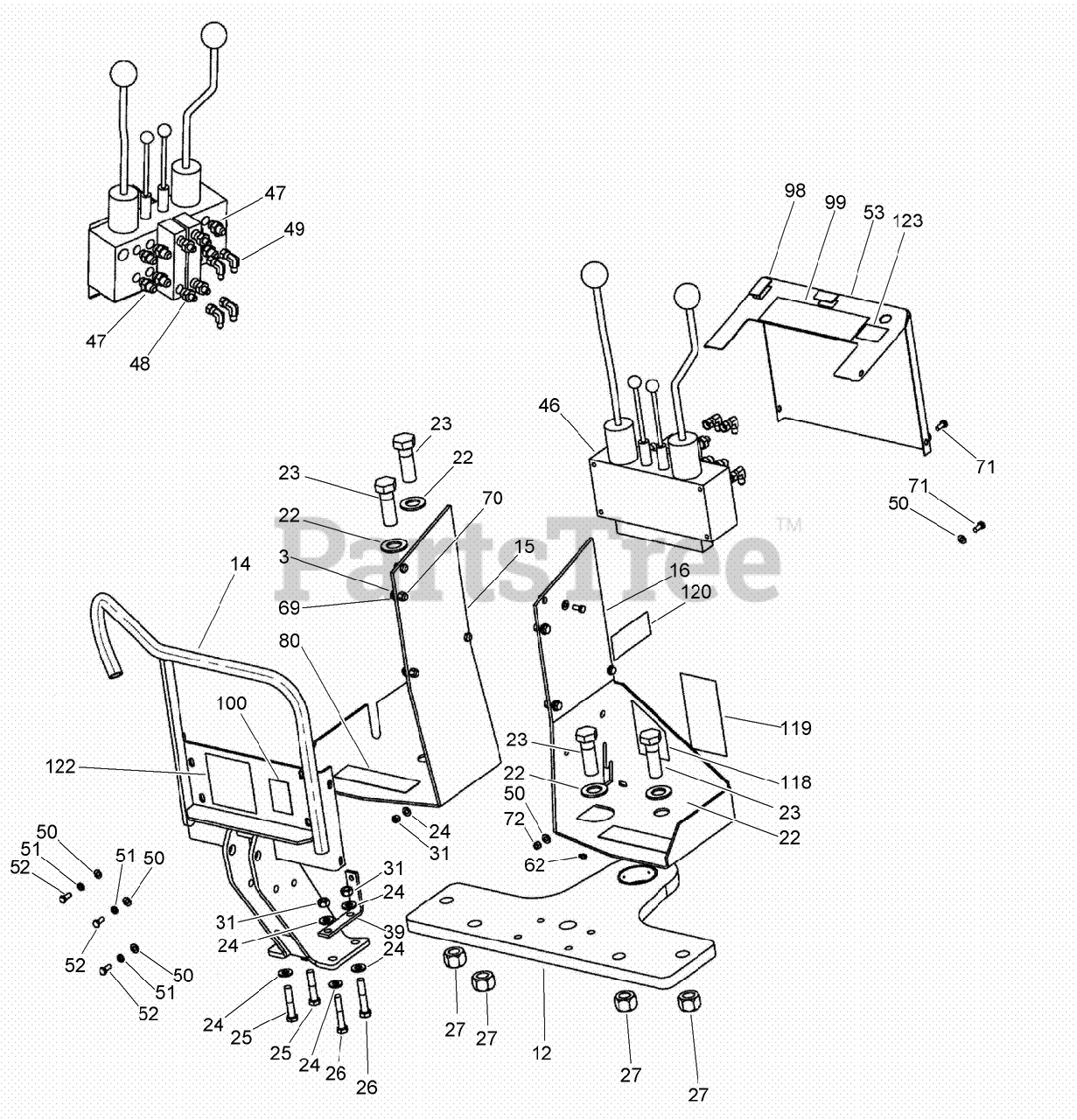

BACKHOE - HD125 Parts Diagram

  • Title

Toro AU102128

ASM-Basic Backhoe

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU102128

ASM-Basic Backhoe

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU102457

KIT-HD125 ATTACH-SEAT/BUCKET

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU102655

KIT-Front Attach, HD125 Backhoe

Note: Not illustrated

$

$

Currently unavailable

4

Toro AUH939262

KIT-Stabilizers, HD125 Backhoe

Note: Not illustrated

$

$

Currently unavailable

12

Toro AU101287

PLATE ASM-Top Pivot

$

$

Currently unavailable

14

Toro AU102257

CONSOLE-Valve Mounting

$

$

Currently unavailable

15

Toro AUH674622

GUARD-Foot, Left-hand

$

$

Currently unavailable

16

Toro AUH674623

GUARD-Foot, Right-hand

$

$

Currently unavailable

22

$9.99

$

Usually ships in 3-6 days

0

23

$10.99

$

Usually ships in 3-6 days

0

24

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

25

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

26

Toro AU426-844

BOLT-Hex, 1/2 NC x 2-3/4 inch

$2.49

$

Usually ships in 3-6 days

0

27

Toro AU230-42116

NUT-HEX LOCK

$4.99

$

Usually ships in 3-6 days

0

31

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

39

Toro AUH438354

ANGLE-Handle Spt

$

$

Currently unavailable

46

Toro AU87400034

HYD CONTROL VALVE ASM

$

$

Not available

47

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$4.99

$

Usually ships in 3-6 days

0

48

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

49

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

50

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

51

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

52

Toro AU414-512

BOLT-Hex, 5/16 NF x 3/4 inch
(Superseded to AU428-512)

$

$

Not available

53

Toro AU257301A1

COVER-Backhoe Valve, with Opening at Bottom

$

$

Not available

62

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

69

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

70

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

71

$0.99

$

Usually ships in 3-6 days

0

72

Toro AU232-4115

NUT-HEX

$

$

Not available

78

Toro AU102094

HOSE-Hydraulic, Swing Cylinder

Note: Not illustrated

$

$

Currently unavailable

79

Toro AU102093

HOSE-Hydraulic, Swing Cylinder

Note: Not illustrated

$

$

Currently unavailable

80

Toro AUH386334

STRIP-Anti-skid, Backhoe Access Steps

$

$

Currently unavailable

98

Toro AU382892A1

BLANK-SWITCH, ROCKER
(Superseded to 99-7420)

$8.49

$

Usually ships in 3-6 days

0

99

Toro AU179079A1

DECAL-Backhoe Control Pattern

$

$

Currently unavailable

100

Toro AU391265A1

DECAL-Read Operators Manual

$

$

Not available

112

Toro AU117408

HOSE-Hydraulic, Dipper Cylinder, Back

Note: Not illustrated

$

$

Currently unavailable

113

Toro AU117410

HOSE-Hydraulic, Dipper Cylinder, Front

Note: Not illustrated

$

$

Currently unavailable

114

Toro AU117409

HOSE-Hydraulic, Bucket Cylinder

Note: Not illustrated

$

$

Currently unavailable

115

Toro AU117411

HOSE-Hydraulic, Bucket Cylinder

Note: Not illustrated

$

$

Currently unavailable

116

Toro AU117406

HOSE-Back Boom Cylinder

Note: Not illustrated

$

$

Currently unavailable

118

Toro AUH439359

DECAL-Swing Lock

$

$

Currently unavailable

119

Toro AU419481A1

DECAL-Danger, BH Crush Hazard

$

$

Currently unavailable

120

Toro AU419484A1

DECAL-Danger, BH Crush Hazard

$

$

Not available

122

Toro AU419487A1

DECAL-Warning, Lifting with Backhoe

$

$

Currently unavailable

123

Toro AU429180A1

DECAL-Engine Shut-Off

$

$

Currently unavailable

125

Toro AUH439225

HOSE

Note: Not illustrated

$

$

Currently unavailable
