RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE CONTROL VALVE OUTLET SECTION HD125 BACKHOE Parts Diagram

Riding Trencher Traction Unit

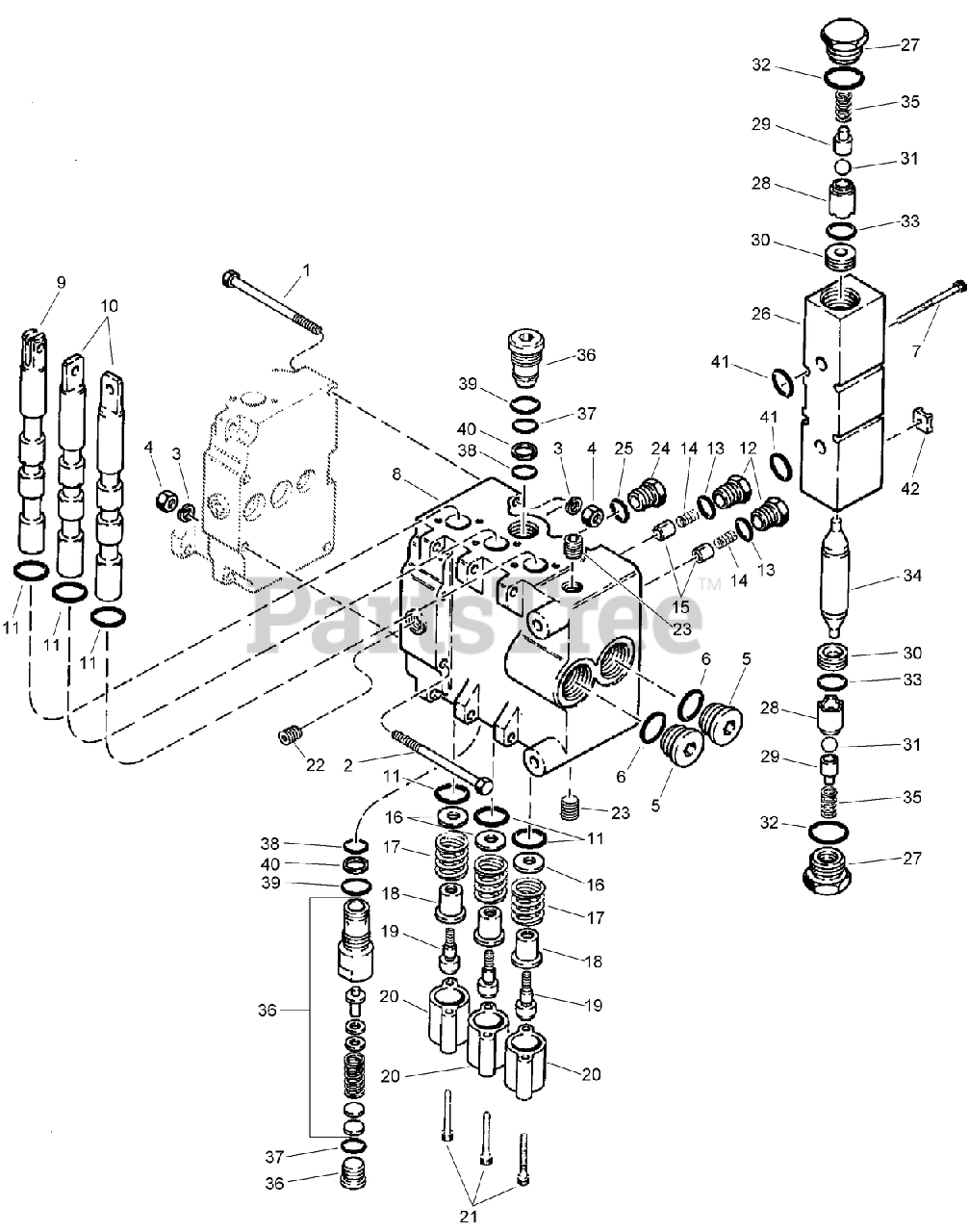

BACKHOE CONTROL VALVE OUTLET SECTION HD125 BACKHOE Parts Diagram

  • Title

Toro AU111935A1

KIT-plunger, includes all items noted above

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU414-448

SCREW-CAP

$

$

Currently unavailable

2

Toro AU414-436

SCREW-HH

$

$

Currently unavailable

3

Toro AU495-11028

WASHER-FLAT

$

$

Not available

4

Toro AU425-114

NUT

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5211

PLUG-SOCKET HEAD

$4.49

$

Usually ships in 3-6 days

0

6

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 20+

0

7

Toro AU62-31040

SCREW

$

$

Currently unavailable

Toro AU87407875

SECTION ASM-outlet

Note: Not illustrated

$

$

Not available

8

BODY-outlet section

Note: Not serviced separately

$

$

Not available

9

SPOOL-stabilizer

Note: Not serviced separately

$

$

Not available

10

SPOOL-dual control

Note: Not serviced separately

$

$

Not available

11

Toro AUH438030

O-RING

$

$

Not available

Toro AU87407876

KIT-load check

Note: Not illustrated

$

$

Currently unavailable

12

Toro AUH438231

PLUG ASM

$26.99

$

Usually ships in 3-6 days

0

13

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

14

SPRING-poppet

Note: Not serviced separately

$

$

Not available

15

Poppet-Load Check

Note: Not serviced separately

$

$

Not available

Toro AUH438021

KIT-spring centering

Note: Not illustrated

$170.99

$

Usually ships in 3-6 days

0

16

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

17

Toro AUN9539

SPRING-RETURN

$

$

Currently unavailable

18

SPACER-spring

Note: Not serviced separately

$

$

Not available

19

BOLT-shoulder, special

Note: Not serviced separately

$

$

Not available

20

Note: Not serviced separately

$

$

Not available

21

Toro AU62-31024

SCREW

$0.99

$

Usually ships in 3-6 days

0

22

Toro AUH438960

PLUG-seal

$32.99

$

Usually ships in 3-6 days

0

23

Toro AU221-841

PLUG
(Superseded to AU217-504)

$0.99

$

Usually ships in 3-6 days

0

24

Toro AUH438231

PLUG ASM

$26.99

$

Usually ships in 3-6 days

0

25

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

Toro AU100405A2

VALVE ASM-pilot check

Note: Not illustrated

$

$

Not available

26

BODY-pilot check

Note: Not serviced separately

$

$

Not available

27

PLUG-pilot check

Note: Not serviced separately

$

$

Not available

28

SLEEVE-pilot check

Note: Not serviced separately

$

$

Not available

29

RETAINER-ball

Note: Not serviced separately

$

$

Not available

Toro AUH674531

KIT-pilot check

Note: Not illustrated

$

$

Currently unavailable

30

SEAT-pilot check

Note: Not serviced separately

$

$

Not available

31

BALL-pilot check

Note: Not serviced separately

$

$

Not available

32

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 20+

0

33

Toro AUG33686

O-RING-5/8 ID x 1/16 inch wide

$

$

Currently unavailable

34

PLUNGER-pilot check

Note: Not serviced separately

$

$

Not available

35

SPRING-pilot check

Note: Not serviced separately

$

$

Not available

Toro AUH438945

VALVE ASM-circuit relief, 3000 psi

Note: Not illustrated

$568.99

$

Usually ships in 3-6 days

0

36

Valve-Relief

Note: Not serviced separately

$

$

Not available

Toro AUH674536

KIT-seal, circuit relief valve

Note: Not illustrated

$

$

Currently unavailable

37

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

38

Toro AU238-6014

O-RING

$

$

Not available

39

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

40

RING-BACKUP

Note: Not serviced separately

$

$

Not available

41

Toro AU238-6113

O-RING

$

$

Not available

42

Toro AUH438941

ORIFICE

$

$

Currently unavailable
