RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE BUCKET CYLINDER HD125 BACKHOE Parts Diagram

Riding Trencher Traction Unit

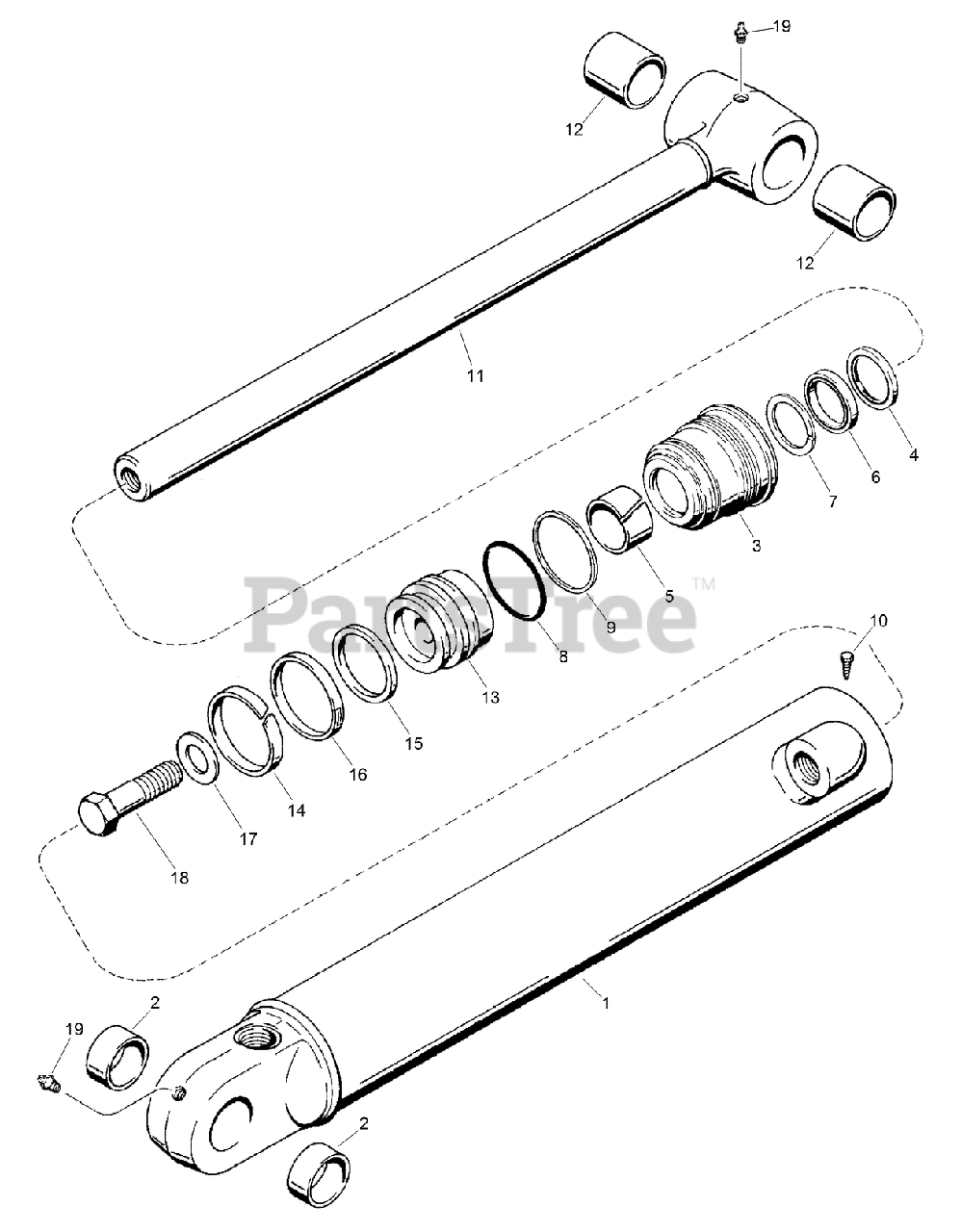

BACKHOE BUCKET CYLINDER HD125 BACKHOE Parts Diagram

  • Title

Toro AU402216A1

HYD CYLINDER ASM (BUCKET)

Note: Not illustrated

$

$

Not available

Toro AU431589A1

TUBE ASM-Cylinder

Note: Not illustrated

$

$

Currently unavailable

1

TUBE-Cylinder

Note: Not serviced separately

$

$

Not available

2

Toro AU30634

BUSHING

$

$

Currently unavailable

3

Toro AU431592A1

HEAD

$

$

Currently unavailable

4

Toro AU431607A1

WIPER

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro AU431597A1

RING-WEAR

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

6

Toro AU431595A1

CUP-U

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro AU431598A1

SEAL-BUFFER

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro AU431606A1

O-RING

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

9

Toro AU431596A1

RING-BACK-UP

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

10

Toro AU431600A1

SCREW-Self-Tapping, Hex Head

$

$

Currently unavailable

Toro AU431590A1

SHAFT ASM

Note: Not illustrated

$

$

Currently unavailable

11

ROD-PISTON

Note: Not serviced separately

$

$

Not available

12

Toro AUD31141

BUSHING

$

$

Currently unavailable

13

Toro AU431591A1

PISTON

$

$

Currently unavailable

14

Toro AU431602A1

RING-WEAR

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

15

Toro AU431604A1

EXPANDER

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

16

Toro AU431605A1

SEAL-PISTON

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

17

Toro AU431594A1

WASHER-Flat

$

$

Currently unavailable

18

Toro AU431593A1

BOLT-Hex

$

$

Currently unavailable

19

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

Toro AU433774A1

SEAL KIT

Note: Not illustrated

$

$

Currently unavailable

Toro AU433774A1

SEAL KIT

Note: Included in a service kit or in an assembly

$

$

Currently unavailable
