RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE BOOM CYLINDER ASSEMBLY HD125 BACKHOE Parts Diagram

Riding Trencher Traction Unit

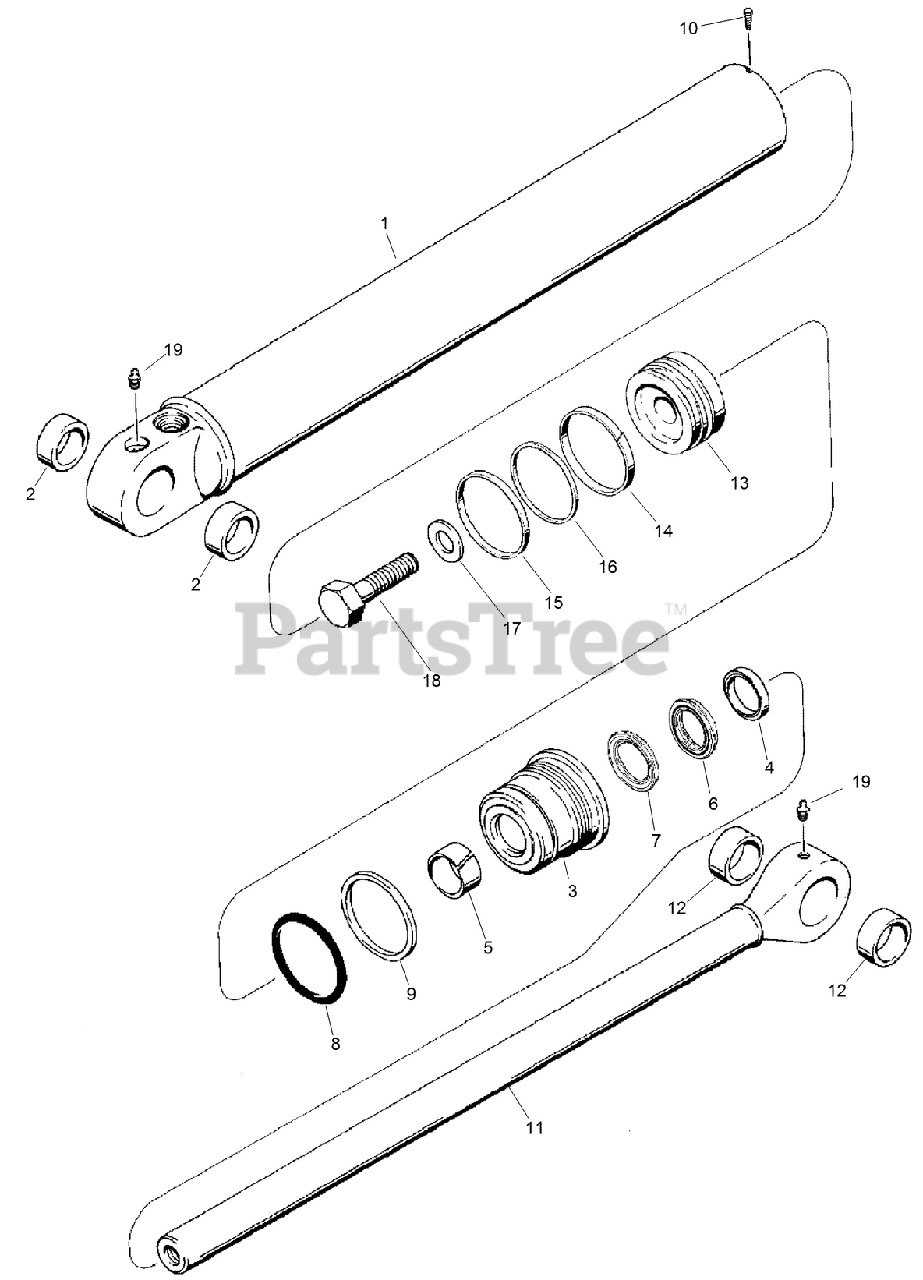

BACKHOE BOOM CYLINDER ASSEMBLY HD125 BACKHOE Parts Diagram

  • Title

Toro AU305352A1

HYD CYLINDER ASM

Note: Not illustrated

$

$

Not available

Toro AU1346451C1

TUBE ASM-Cylinder

Note: Not illustrated

$

$

Currently unavailable

1

TUBE-Cylinder

Note: Not serviced separately

$

$

Not available

2

Toro AUD30930

BUSHING

$

$

Currently unavailable

GLAND ASM-Cylinder, has identification groove on outer lip.

Note: Not serviced separately

$

$

Not available

GLAND ASM-Cylinder, has identification groove on outer lip.

Note: Not illustrated

$

$

Not available

3

Toro AU1346417C1

GLAND

$

$

Not available

4

Toro AUD95142

WIPER-ROD

Note: Included in a service kit or in an assembly

$21.99

$

Usually ships in 3-6 days

0

5

Toro AUG102424

BEARING-ROD

Note: Included in a service kit or in an assembly

$

$

Not available

Toro AU1542874C1

KIT-Seal, NSS, order 1543256C1 kit, see below

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

Toro AU1542874C1

KIT-Seal, NSS, order 1543256C1 kit, see below

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU1542997C1

SEAL-Rod, NSS, order 1543256C1 kit, see below

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro AU1542996C1

SEAL-Buffer, NSS, order 1543256C1 kit, see below

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro AU238-5231

O-RING

Note: Included in a service kit or in an assembly

$

$

Not available

9

Toro AUG109298

RING-BACKUP

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

10

Toro AU276-2446

SCREW

$

$

Not available

Toro AU305353A1

ROD ASM-Piston, 38 mm (1-1/2 inch) diameter

Note: Not illustrated

$

$

Currently unavailable

11

ROD-Piston, 38 mm diameter

Note: Not serviced separately

$

$

Not available

12

Toro AUD30930

BUSHING

$

$

Currently unavailable

13

Toro AU305356A1

PISTON

$

$

Currently unavailable

14

Toro AUG100449

RING-WEAR

Note: Included in a service kit or in an assembly

$

$

Not available

15

Toro AUG102288

SEAL-Piston

Note: Included in a service kit or in an assembly

$

$

Not available

16

Toro AUG100444

RING-LOADER

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

17

Toro AUG32317

WASHER

$

$

Currently unavailable

18

Toro AU28-1440

BOLT

$

$

Not available

19

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

Toro AU1543256C1

SEAL KIT

Note: Included in a service kit or in an assembly

$

$

Not available

Toro AU1543256C1

SEAL KIT

Note: Not illustrated

$

$

Not available
