RT 600 - Toro Riding Trencher Traction Unit (2012) BACKFILL BLADE TILT CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

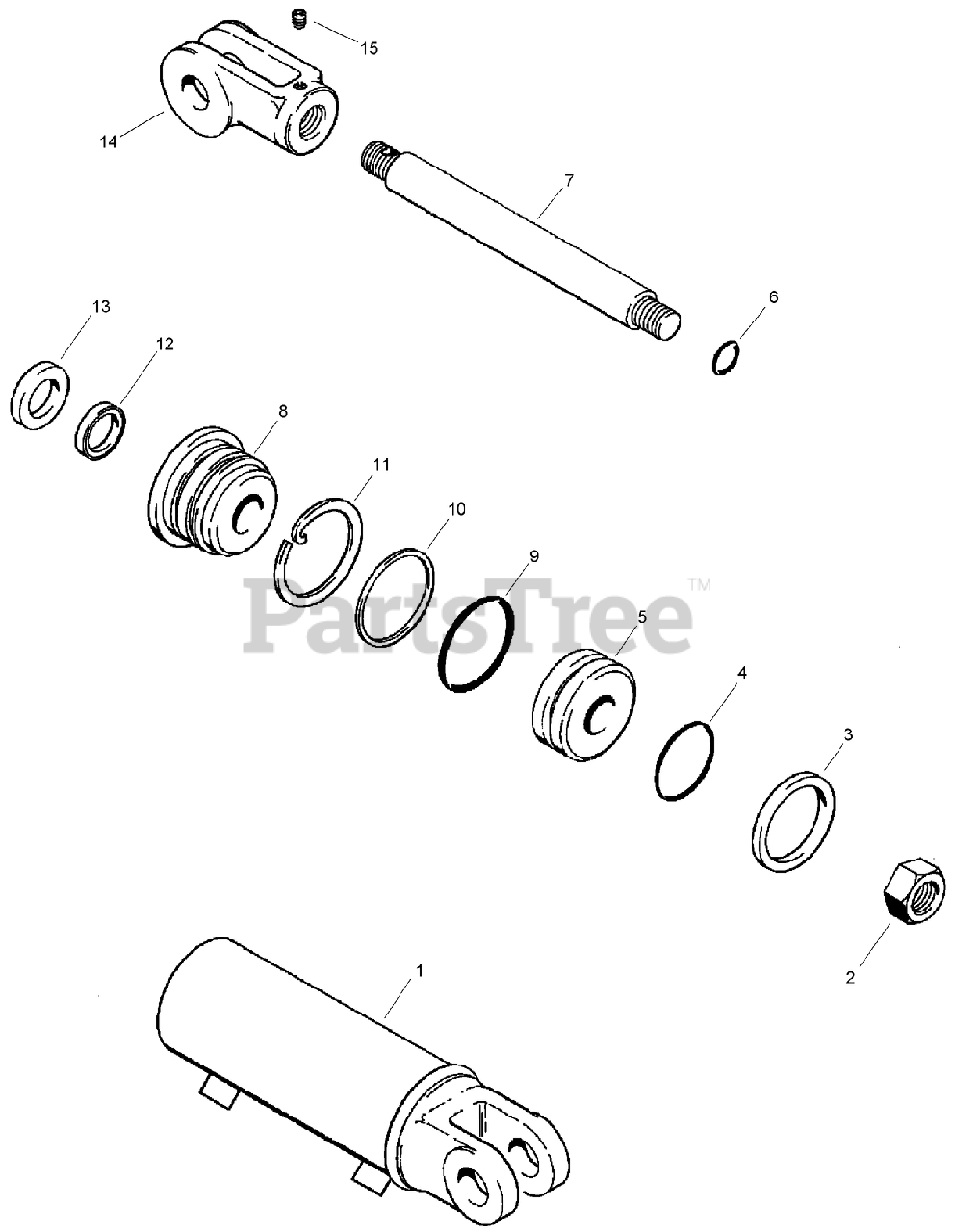

BACKFILL BLADE TILT CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AUH673747

CYLINDER ASM-63.5 (2-1/2) id X 89 MM (3-1/2 INCH) stroke, backfill blade tilt
(Superseded to AU125681)

Note: Not illustrated

$2130.99

$

Usually ships in 3-6 days

0

1

Toro AU103748A1

TUBE-cylinder

$

$

Currently unavailable

2

Toro AU232-46112

NUT-hex, self-locking, 3/4 inch NF

$2.49

$

Usually ships in 3-6 days

0

3

Seal-Piston

Note: Not serviced separately

$

$

Not available

4

O-RING-piston

Note: Not serviced separately

$

$

Not available

5

Toro AU85261C2

PISTON-cylinder

$

$

Currently unavailable

6

O-RING-piston rod

Note: Not serviced separately

$

$

Not available

7

Toro AU103749A1

ROD-piston
(Superseded to AU125681)

$2130.99

$

Usually ships in 3-6 days

0

8

Toro AU103746A1

GLAND-cylinder

$1319.99

$

Usually ships in 3-6 days

0

9

O-RING-gland

Note: Not serviced separately

$

$

Not available

10

RING-backup, gland O-ring

Note: Not serviced separately

$

$

Not available

11

WIRE-locking, gland

Note: Not serviced separately

$

$

Not available

12

SEAL-U-cup, gland

Note: Not serviced separately

$

$

Not available

13

WIPER-piston rod

Note: Not serviced separately

$

$

Not available

14

Toro AU103750A1

CLEVIS-piston rod

$

$

Not available

15

Toro AU83-1316

SCREW-set, hex socket headless, 5/16 NC x 3/8 inch, cup point

$2.99

$

Usually ships in 3-6 days

0

Toro AU103751A2

KIT-seal, includes all items with an asterisk

Note: Not illustrated

$

$

Currently unavailable
