RT 600 - Toro Riding Trencher Traction Unit (2012) AUXILIARY VALVE HYDRAULIC COMPONENT ASSEMBLY NO. 2 Parts Diagram

Riding Trencher Traction Unit

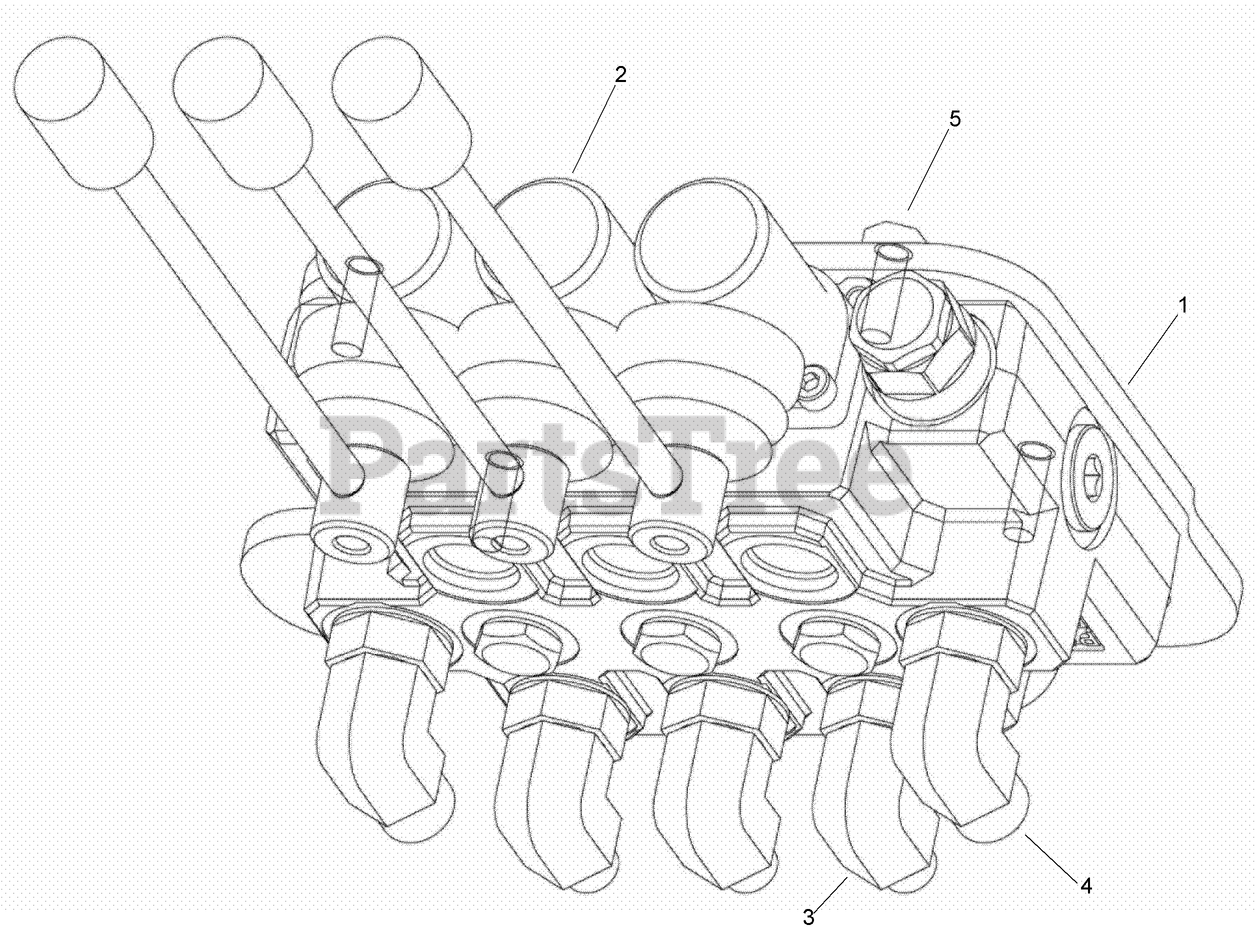

AUXILIARY VALVE HYDRAULIC COMPONENT ASSEMBLY NO. 2 Parts Diagram

  • Title

Toro AU125330

HYDRAULICS GROUP

Note: Not illustrated

$

$

Currently unavailable

Toro AU127045

SCHEMATIC-Hydraulics

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125529

PLATE-Valve Mount

$

$

Currently unavailable

2

Toro AU125531

VALVE-Auxiliary

$

$

Currently unavailable

3

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

4

Toro AU218-5106

ELBOW-90 Adj 37FL, 1/2 Tube

$13.99

$

Usually ships in 3-6 days

0

5

Toro AU100395

SCREW, METRIC FLANGE FULL-M8 x 16

$1.49

$

Usually ships in 3-6 days

0
