RT 600 - Toro Riding Trencher Traction Unit (2012) AUGER AND MOUNTING ASSEMBLY PLANETARY DRIVE TRENCHER Parts Diagram

Riding Trencher Traction Unit

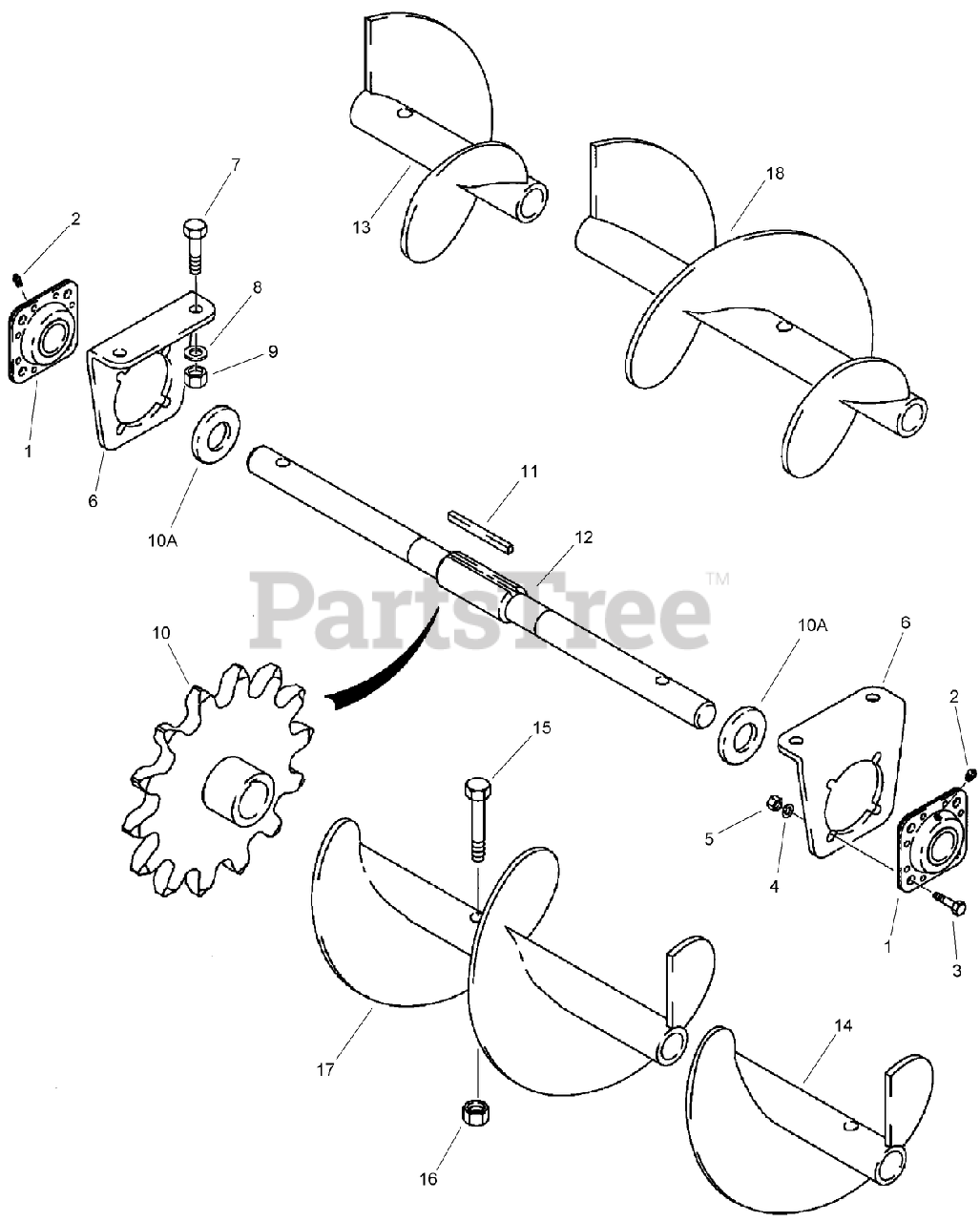

AUGER AND MOUNTING ASSEMBLY PLANETARY DRIVE TRENCHER Parts Diagram

  • Title

1

Toro AUST491A

BEARING

$

$

Currently unavailable

2

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

3

Toro AU426-820

BOLT-Hex Hd 1/2 x 1-1/4 GR5 ZND

$1.49

$

Usually ships in 3-6 days

0

4

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

5

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU108699A1

PLATE-mounting, auger bearing
(Superseded to AU108699A1-03)

$

$

Not available

7

Toro AU426-1032

BOLT-Hex Hd 0.625 x 2.00 GR8 ZND

$2.99

$

Usually ships in 3-6 days

0

8

Toro AUT53567

WASHER-flat, special, hardened
(Superseded to AUH426809)

$24.99

$

Usually ships in 3-6 days

0

9

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0

10

Toro AU126170A1

SPROCKET-auger drive, 14 teeth
(Superseded to AU126170A1-03)

$

$

Not available

10A

Toro AU126436A1

WASHER

$

$

Currently unavailable

11

Toro AUH433528

KEY-SQUARE

$

$

Currently unavailable

12

Toro AU108700A1

SHAFT-auger

$

$

Currently unavailable

13

Toro AU108704A1

AUGER-spoil removal, left-hand
(Superseded to AU108704A1-03)

$

$

Not available

14

Toro AU108705A1

AUGER-spoil removal, right-hand
(Superseded to AU108705A1-03)

$

$

Not available

15

Toro AU426-1248

BOLT-hex, 3/4 NC x 3 inch, grade 8
(Superseded to 328-25)

$5.49

$

Usually ships in 3-6 days

0

16

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

Toro AU123130A1

AUGERS-Long, 24 (contains items 17 and 18)

Note: Not illustrated

$

$

Currently unavailable

17

Toro AU116368A1

AUGER-spoil removal, right-hand, used instead of item 14, if used

$

$

Currently unavailable

18

Toro AU116367A1

AUGER-spoil removal, left-hand, used instead of item 13, if used

$

$

Currently unavailable
