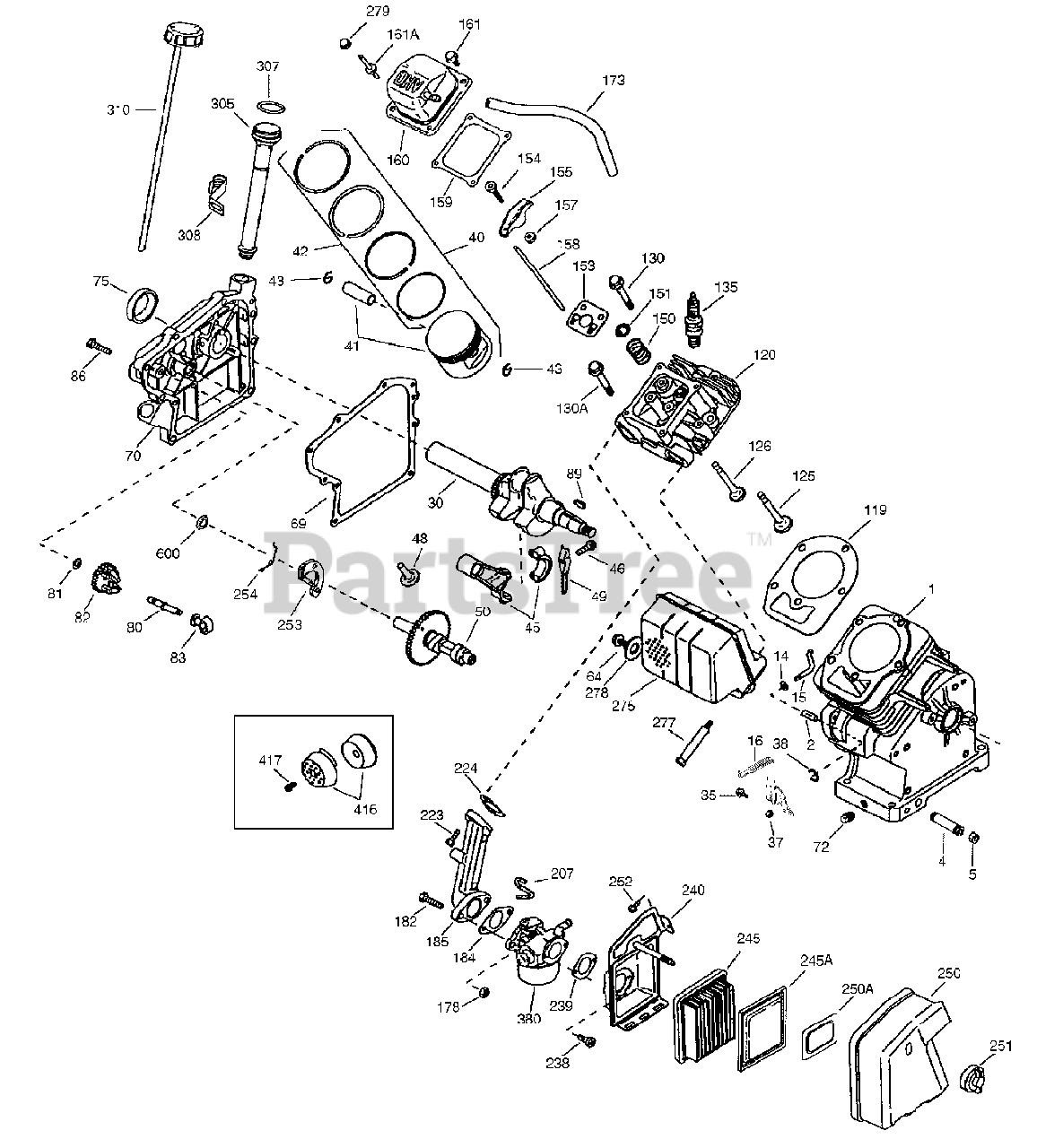

RT-60 (21B-448-100) - Cub Cadet Rear-Tine Tiller Engine (1998) Engine Assembly, Air Filter & Muffler Parts Diagram

Rear-Tine Tiller Engine

Engine Assembly, Air Filter & Muffler Parts Diagram

  • Title

1

Cub Cadet TC-37120

Cylinder
(Superseded to TC-37120B)

Note: (Includes dowel pin & seal)

$116.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

4

Cub Cadet TC-31857

Oil Drain Extension

$9.49

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-30969

Extension Cap

$5.49

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-651052

Washer

$1.99

$

In Stock, Qty 5

0

15

Cub Cadet TC-37108

Governor Rod

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet TC-37110

Governor Lever

$5.49

$

In Stock, only 1 left!

0

30

Cub Cadet TC-34746

Crankshaft

$134.99

$

In Stock, only 1 left!

0

35

Cub Cadet TC-651053

Screw, Torx T-25, 10-32 x 63/64"

$1.99

$

Usually ships in 3-12 days

0

37

Cub Cadet TC-29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

38

Cub Cadet TC-37109

Retaining Ring

$1.99

$

In Stock, Qty 5

0

40

Cub Cadet TC-40004

Piston, Pin & Ring Set (Standard)

$74.99

$

In Stock, only 1 left!

0

Cub Cadet TC-40005

Piston, Pin & Ring Set (.010" OS)
(Superseded to TC-40045)

$

$

Not available

41

Cub Cadet TC-36070

Piston & Pin Ass'y (Standard)

Note: (Incl. 43)

$

$

Not available

Cub Cadet TC-36071

Piston & Pin Ass'y (.010" OS)

Note: (Incl. 43)

$

$

Not available

42

Cub Cadet TC-40006

Ring Set (Standard)

$42.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-40007

Ring Set (.010" OS)

$34.99

$

Usually ships in 3-12 days

0

43

Cub Cadet TC-20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Cub Cadet TC-32875A

Connecting Rod Ass'y
(Superseded to TC-32875B)

Note: (Incl. 46 & 49)

$47.99

$

In Stock, only 1 left!

0

46

Cub Cadet TC-32610A

Connecting Rod Bolt

$1.99

$

In Stock, Qty 6

0

48

Cub Cadet TC-35616

Valve Lifter

$

$

Not available

49

Cub Cadet TC-36611

Oil Dipper

$1.99

$

In Stock, only 1 left!

0

50

Cub Cadet TC-37040

Camshaft

$30.99

$

In Stock, only 1 left!

0

64

Cub Cadet TC-651015

Screw, 1/4-20 x 1-1/8"

$1.99

$

In Stock, only 4 left!

0

69

Cub Cadet TC-36624

Cylinder Cover Gasket

$6.99

$

In Stock, only 1 left!

0

70

Cub Cadet TC-36625

Cylinder Cover

Note: (Incl. 75-83)

$111.99

$

Usually ships in 3-12 days

0

72

Cub Cadet TC-28582

Oil Drain Plug

$1.99

$

In Stock, only 1 left!

0

75

Cub Cadet TC-27897

Oil Seal

$8.49

$

In Stock, only 3 left!

0

80

Cub Cadet TC-30574A

Governor Shaft

$7.49

$

In Stock, only 4 left!

0

81

Cub Cadet TC-30590A

Washer

$1.99

$

In Stock, Qty 7

0

82

Cub Cadet TC-30591

Governor Gear Ass'y

Note: (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Cub Cadet TC-36057

Governor Spool

$1.99

$

In Stock, only 4 left!

0

86

Cub Cadet TC-650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

89

Cub Cadet TC-610961

Flywheel Key

$1.49

$

In Stock, Qty 20+

0

119

Cub Cadet TC-36719

Cylinder Head Gasket

$10.99

$

In Stock, only 2 left!

0

120

Cub Cadet TC-36721

Cylinder Head

$

$

Not available

125

Cub Cadet TC-36471

Exhaust Valve (Standard)

Note: (Incl. 151)

$13.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-36472

Exhaust Valve (1/32" OS)

Note: (Incl. 151)

$

$

Not available

126

Cub Cadet TC-29314C

Intake Valve (Standard)

Note: (Incl. 151)

$5.99

$

In Stock, only 1 left!

0

Cub Cadet TC-29315C

Intake Valve (1/32" OS)

Note: (Incl. 151)

$

$

Not available

130

Cub Cadet TC-650912

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, only 2 left!

0

130A

Cub Cadet TC-650999

Screw, 5/16-18 x 2-41/64"

$3.99

$

In Stock, Qty 5

0

135

Cub Cadet TC-34645

Resistor Spark Plug (N4C)
(Superseded to RN4C)

$4.49

$

In Stock, Qty 20+

0

150

Cub Cadet TC-37039

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151

Cub Cadet TC-31673

Valve Spring Cap

$1.99

$

In Stock, only 1 left!

0

153

Cub Cadet TC-36649

Push Rod Guide

$3.99

$

Usually ships in 3-12 days

0

154

Cub Cadet TC-650913

Rocker Arm Stud

$1.99

$

Usually ships in 3-12 days

0

155

Cub Cadet TC-35624A

Rocker Arm

$26.99

$

Usually ships in 3-12 days

0

157

Cub Cadet TC-650914

Nut, 1/4-28

$1.99

$

Usually ships in 3-12 days

0

158

Cub Cadet TC-36629

Push Rod

$3.99

$

In Stock, only 2 left!

0

159

Cub Cadet TC-35626

Rocker Arm Cover Gasket

$3.99

$

In Stock, only 1 left!

0

160

Cub Cadet TC-36630A

Rocker Arm Cover

$

$

Not available

161

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

161A

Cub Cadet TC-651012

Stud

$1.99

$

In Stock, only 1 left!

0

173

Cub Cadet TC-36675A

Breather Tube

$5.49

$

In Stock, only 1 left!

0

178

Cub Cadet TC-650852

Nut, 1/4-20

$1.99

$

In Stock, only 1 left!

0

182

Cub Cadet TC-650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

184

Cub Cadet TC-26756

Carb. to Intake Pipe Gasket

$2.99

$

In Stock, Qty 10

0

185

Cub Cadet TC-36631

Intake Pipe

$43.99

$

Usually ships in 3-12 days

0

207

Cub Cadet TC-36632

Throttle Link

$1.49

$

In Stock, Qty 18

0

223

Cub Cadet TC-650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

224

Cub Cadet TC-36581

Intake Pipe Gasket

$1.49

$

In Stock, Qty 13

0

238

Cub Cadet TC-28820

Screw, 10-32 x 1/2"
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

239

Cub Cadet TC-27272A

Air Cleaner Gasket

$4.49

$

In Stock, Qty 20+

0

240

Cub Cadet TC-36633A

Air Cleaner Body

$26.99

$

In Stock, only 1 left!

0

245

Cub Cadet TC-36046

Air Cleaner Filter

Note: (Incl. 239)

$8.99

$

In Stock, Qty 11

0

245A

Cub Cadet TC-36634

Air Cleaner Filter (Poly)

$7.49

$

Usually ships in 3-12 days

0

250

Cub Cadet TC-37073

Air Cleaner Cover

$15.99

$

Usually ships in 3-12 days

0

250A

Cub Cadet TC-37074

Air Cleaner Baffle

$1.99

$

In Stock, only 4 left!

0

251

Cub Cadet TC-650886

Wing Nut

$2.49

$

Usually ships in 3-12 days

0

252

Cub Cadet TC-650821

Screw, 10-32 x 31/64"

$1.99

$

Usually ships in 3-12 days

0

253

Cub Cadet TC-36701

Compression Release Weight

$5.49

$

In Stock, only 2 left!

0

254

Cub Cadet TC-36702

Compression Release Spring

$1.99

$

In Stock, only 2 left!

0

275

Cub Cadet TC-36759

Muffler

$

$

Not available

277

Cub Cadet TC-650988

Screw, 1/4-20 x 2-9/32"

$4.49

$

In Stock, only 3 left!

0

278

Cub Cadet TC-36674

Spacer

$1.99

$

In Stock, only 1 left!

0

279

Cub Cadet TC-650852

Nut & Lock Washer

$1.99

$

In Stock, only 1 left!

0

305

Cub Cadet TC-36877

Oil Fill Tube

$3.99

$

In Stock, only 3 left!

0

307

Cub Cadet TC-35499

"O" Ring

$1.49

$

In Stock, only 3 left!

0

308

Cub Cadet TC-37079

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

310

Cub Cadet TC-36878

Dipstick

$7.49

$

In Stock, only 2 left!

0

380

Cub Cadet TC-640025B

Carburetor
(Superseded to TC-640025C)

$105.99

$

In Stock, only 1 left!

0

416

Cub Cadet TC-36085

Spark Arrestor Kit

Note: (Incl. 417) Optional

$12.99

$

Usually ships in 3-12 days

0

417

Cub Cadet TC-650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 3 left!

0

600

Cub Cadet TC-651013

Washer

$1.99

$

In Stock, only 2 left!

0
