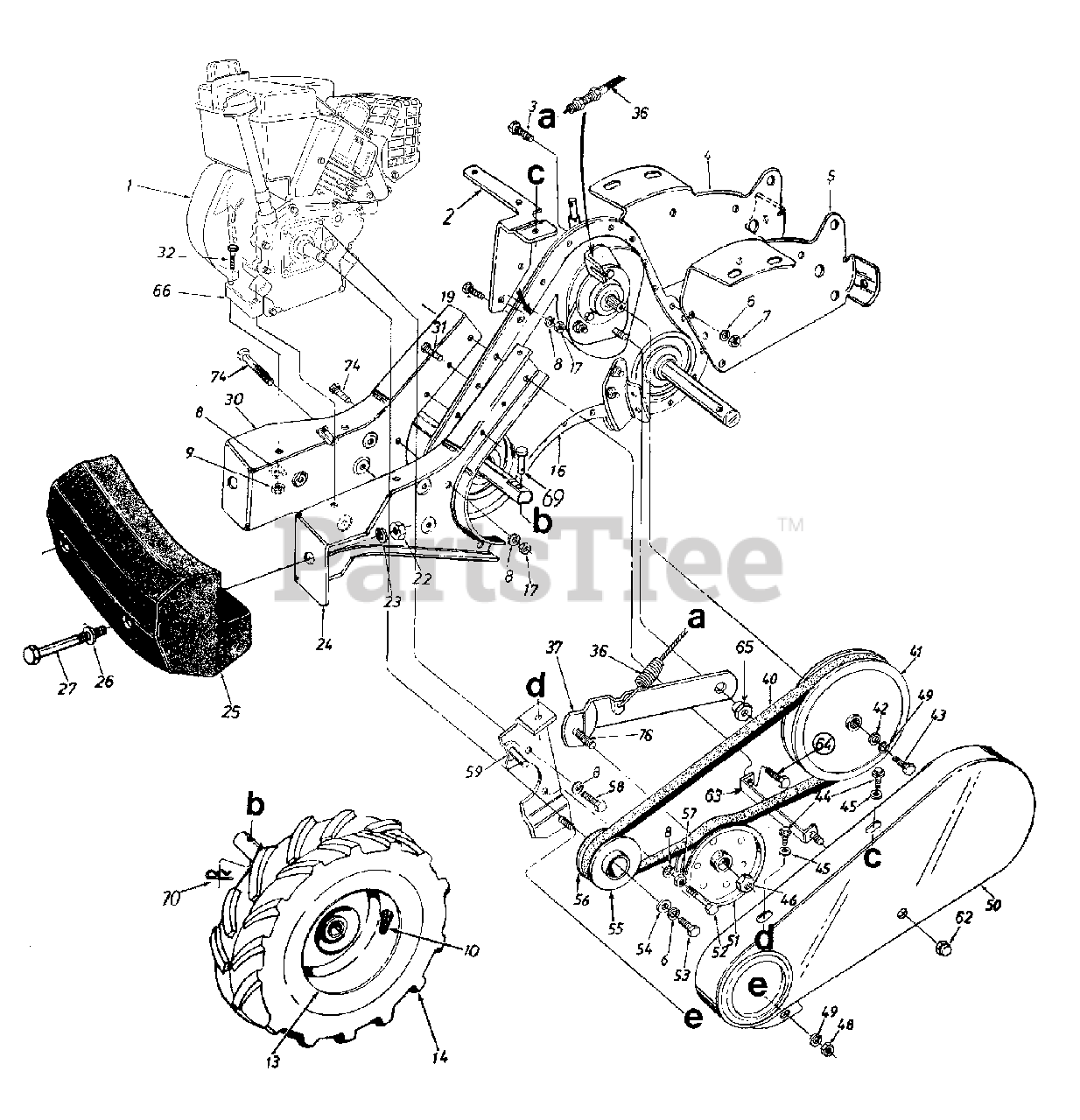

RT-60 (21B-448-100) - Cub Cadet Rear-Tine Tiller (1998) Drive & Wheels Parts Diagram

Rear-Tine Tiller

Drive & Wheels Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 786-0123

Shift Cover Mounting Brkt.

Variations

Cub Cadet 786-0123-0637

SHIFT COVER MOUNTING BRKT. - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 784-0178

Tine Shield Mtg. Brkt. - R.H.
(Superseded to 784-0178-0637)

Variations

Cub Cadet 784-0178-0483

USE 784-0178-0637 BRACKET-MTG - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0178-0637

BRACKET-MTG-RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0178-0638

USE 784-0178-0637 BRACKET-MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0178-0665

USE 784-0178-0637 BRACKET-MTG - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

Cub Cadet 784-0177

Tine Shield Mtg. Brkt. - L.H.

Variations

Cub Cadet 784-0177-0483

MOUNTING BRACKET(LH) - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0177-0637

MOUNTING BRACKET(LH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0177-0638

MOUNTING BRACKET(LH) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0177-0665

MOUNTING BRACKET(LH) - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

7

UNKNOWN

$

$

Not available

8

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 634-0108

Wheel Rim Ass'y. Only

Variations

Cub Cadet 634-0108-0499

RIM - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 634-0108-0674

RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

14

Cub Cadet 634-0107

L.H. Wheel Ass'y. Comp.

Variations

Cub Cadet 634-0107-0931

WHEEL ASSEMBLY (16 x 4) (LH) - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 634-0107-0911

WHEEL ASSEMBLY (16 x 4) (LH) - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0107-0912

WHEEL ASSEMBLY (16 x 4) (LH) - Dico Gray (0912)

$

$

Not available

Cub Cadet 634-0107-0941

WHEEL ASSEMBLY (16 x 4) (LH) - Carlisle Yellow (0941)

$

$

Not available

Cub Cadet 634-0107-0942

WHEEL ASSEMBLY (16 x 4) (LH) - Dico Yellow (0942)

$

$

Not available

$

$

Cub Cadet 634-0106

R.H. Wheel Ass'y. Comp.

Variations

Cub Cadet 634-0106-0931

WHEEL ASSEMBLY (16 x 4) (RH) - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 634-0106-0911

WHEEL ASSEMBLY (16 x 4) (RH) - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0106-0912

WHEEL ASSEMBLY (16 x 4) (RH) - Dico Gray (0912)

$

$

Not available

Cub Cadet 634-0106-0941

WHEEL ASSEMBLY (16 x 4) (RH) - Carlisle Yellow (0941)

$

$

Not available

Cub Cadet 634-0106-0942

WHEEL ASSEMBLY (16 x 4) (RH) - Dico Yellow (0942)

$

$

Not available

$

$

Cub Cadet 734-0808

Tire Only
(Superseded to 734-0808A)

Variations

Cub Cadet 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$123.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$123.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 686-0098

Gear Case Ass'y. Comp.

$

$

Not available

17

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

24

Cub Cadet 686-0079A

Engine Mounting Rail - L.H.

Variations

Cub Cadet 686-0079A-0498

RAIL-ENGINE MTG (RH)(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 686-0079A-0637

RAIL-ENGINE MTG (LH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 686-0079A-0665

RAIL-ENGINE MTG (RH)(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

Cub Cadet 723-0381

Counter Weight

$

$

Not available

26

Cub Cadet 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 710-0382

Hex Bolt 1/2-13 x 5.0" Lg.

$12.99

$

In Stock, only 2 left!

0

30

Cub Cadet 686-0080A

Engine Mounting Rail - R.H.

Variations

Cub Cadet 686-0080A-0498

RAIL-ENGINE MTG (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 686-0080A-0637

RAIL-ENGINE MTG (LH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 686-0080A-0665

RAIL-ENGINE MTG (LH)(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

UNKNOWN

$

$

Not available

32

Cub Cadet 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 746-0908

Clutch Control Cable 46" Lg.
(Superseded to 946-0908)

$75.99

$

In Stock, Qty 15

0

37

Cub Cadet 786-0064

Idler Bracket

$

$

Currently unavailable

40

Cub Cadet 754-0434

"V"-Belt
(Superseded to 954-0434)

$61.99

$

In Stock, only 1 left!

0

41

Cub Cadet 756-0634

Fl-Pulley 8" O.D.

$86.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

43

Cub Cadet 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

44

Cub Cadet 710-0599

Hex Wash. Hd. S-Tap Scr 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0463

Fl-Wash. .281" I.D. x .625"

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 712-0266

Center L-Jam Nut 3/8-24 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

49

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

50

Cub Cadet 784-0158-0665

Belt Cover
(Superseded to 784-0158B-0665)

$88.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 756-0405

Fl-Idler w/Flanges 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-0409

Hex Bolt 5/16-24 x 1.75"

$4.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

54

UNKNOWN

$

$

Not available

55

Cub Cadet 756-0972

Outer Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 756-0971

Inner Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

58

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

59

Cub Cadet 686-0065

Belt Keeper Ass'y.

$

$

Not available

62

Cub Cadet 712-0392

Hex Cap Nut 1/4-28 Thd.

$6.99

$

In Stock, only 1 left!

0

63

Cub Cadet 686-0064

Belt Cover Brkt. Ass'y.

$

$

Currently unavailable

64

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

65

Cub Cadet 738-0876

Shld. Nut
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

66

Cub Cadet 717-0522

Engine Spacer Block

$

$

Not available

69

Cub Cadet 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

70

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 710-0602

Screw 5/16-18 x 1"

$4.49

$

In Stock, Qty 20+

0

76

Cub Cadet 710-0723

Hex Cap Scr. 3/8-16: 1.25 Lg.

$4.99

$

In Stock, only 3 left!

0
