RT 55 A - Poulan Pro Rear-Tine Tiller Tine Shield Parts Diagram

Rear-Tine Tiller

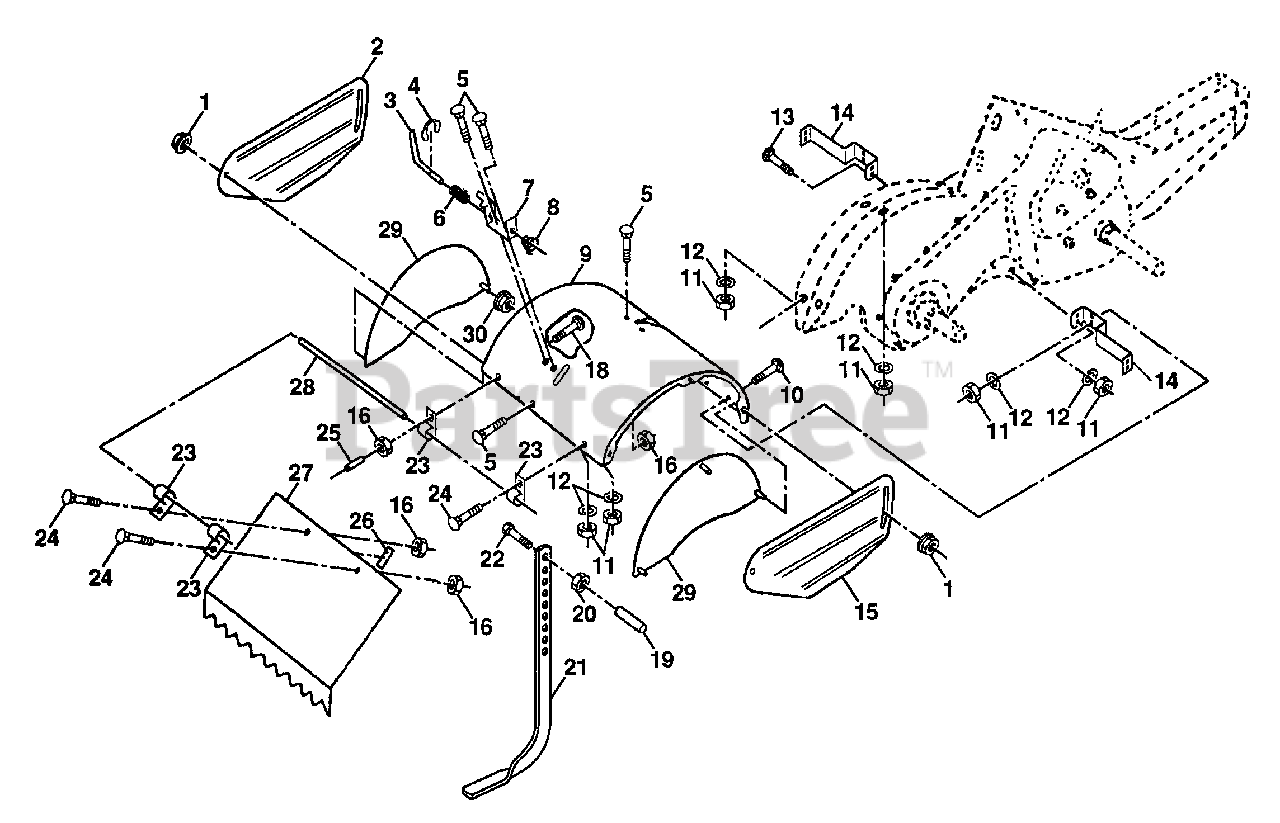

Tine Shield Parts Diagram

  • Title

1

Poulan 98000129

Nut, Flange 5/16-18 (AYP part number)
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

2

Poulan 532125427

Shield, Side, Outer L. H. (AYP part number)

$

$

Not available

3

Poulan 8393J

Pin, Stake, Depth
(Superseded to 532008393)

$31.99

$

Usually ships in 3-10 days

0

4

Poulan 12000036

Ring, Klip
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

5

Poulan 72140506

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 8394J

Spring
(Superseded to 532008394)

$9.49

$

Usually ships in 3-10 days

0

7

Poulan 8392J

Bracket, Latch
(Superseded to 532008392)

$5.99

$

Usually ships in 3-10 days

0

8

Poulan 532109230

Spring, Depth Stake (AYP part number)

$6.49

$

In Stock, Qty 10

0

9

Poulan 532142036

Shield, Tine (AYP part number)
(Superseded to 532442858)

$54.99

$

Usually ships in 3-10 days

0

10

Poulan 72140508

Bolt, Carriage 5/16-18 UNC x 1
(Superseded to 595901501)

$4.99

$

In Stock, only 4 left!

0

11

Poulan 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 72110510

Bolt, Carriage 5/16-18 x 1-1/4
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

14

Poulan 124311X

Bracket, Shield Tine
(Superseded to 581813501)

$13.99

$

Usually ships in 3-10 days

0

15

Poulan 532125428

Shield, Side, Outer R.H. (AYP part number)

$

$

Not available

16

Poulan 73510400

Nut, Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

18

Poulan 72040410

Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
(Superseded to 872040410)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532102701

Grip (AYP part number)

$

$

Not available

20

Poulan 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

21

Poulan 532102156

Stake, Depth (AYP part number)
(Superseded to 532144437)

$28.99

$

Usually ships in 3-10 days

0

22

Poulan 74930632

Bolt, Hex 3/8-16 x 2
(Superseded to 874930632)

$6.99

$

In Stock, only 2 left!

0

23

Poulan 4440J

Hinge
(Superseded to 532004440)

$6.49

$

In Stock, only 1 left!

0

24

Poulan 72140404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 532124717

Cap, Vinyl (AYP part number)
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 532109227

Pad, Idler (AYP part number)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532125410

Shield, Leveling (AYP part number)
(Superseded to 583641501)

$21.99

$

Usually ships in 3-10 days

0

28

Poulan 120588X

Pin, Hinge
(Superseded to 532120588)

$7.99

$

Usually ships in 3-10 days

0

29

Poulan 532142037

Shield, Side (AYP part number)
(Superseded to 532442868)

$

$

Not available

30

Poulan 73970500

Locknut, Flange 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
