RT 55 A - Poulan Pro Rear-Tine Tiller Tine Assembly Parts Diagram

Rear-Tine Tiller

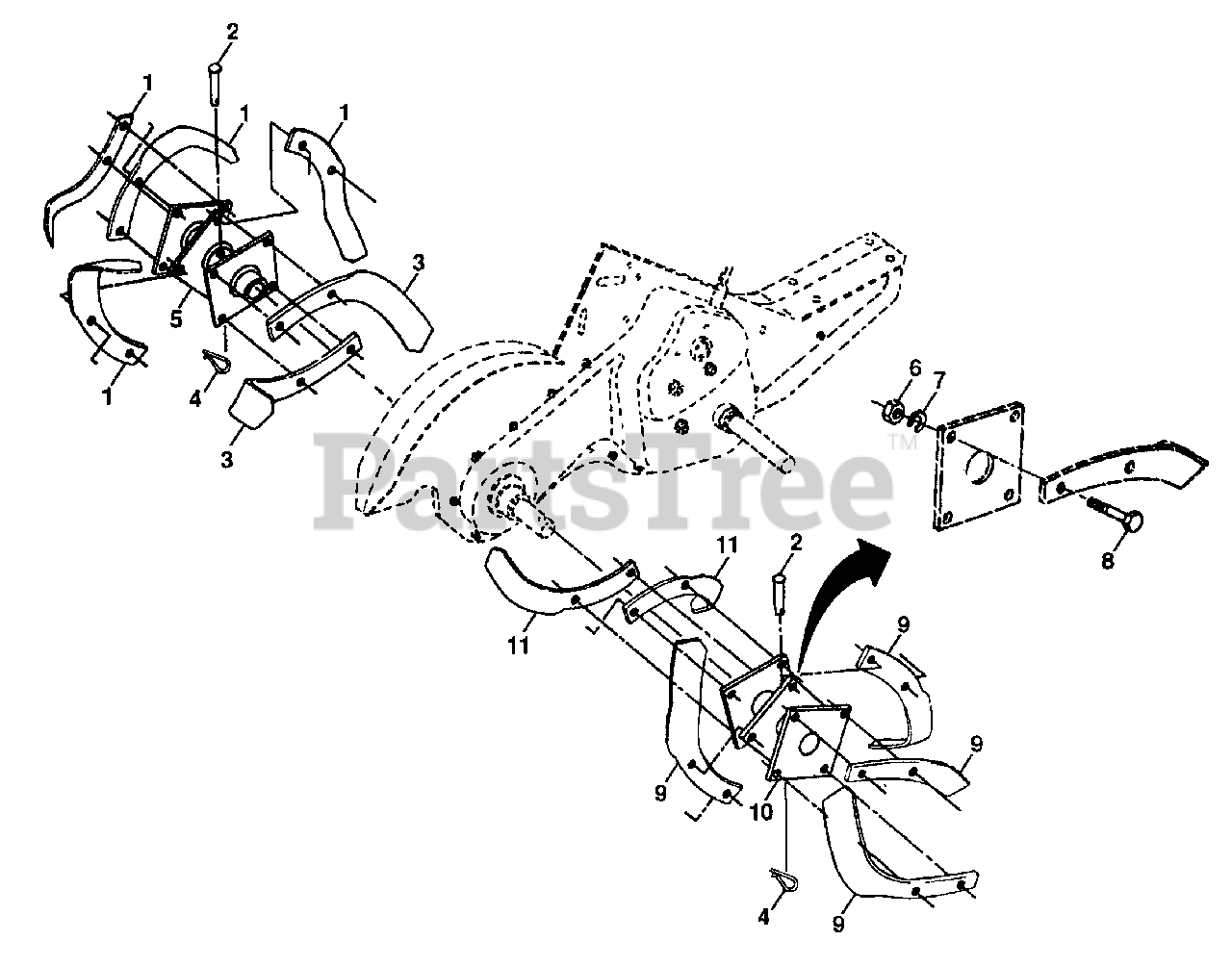

Tine Assembly Parts Diagram

  • Title
1

Poulan 4459J

Tine, Outer, L.H. (AYP part number)

$

$

Not available

2

Poulan 132673

Clevis Pin
(Superseded to 532132673)

$4.99

$

In Stock, Qty 20+

0

3

Poulan 6554J

Tine, Inner, L.H.
(Superseded to 532006554)

$

$

Not available

4

Poulan 532124660

Clip, Hairpin (AYP part number)
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

5

Poulan 132727

Assembly, Hub and Plate, L.H.

$46.99

$

Usually ships in 3-10 days

0

6

Poulan 73610600

Nut, Hex 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 74610616

Bolt, Hex 3/8-24 x 1
(Superseded to 874610616)

$7.49

$

In Stock, Qty 20+

0

9

Poulan 4460J

Tine, Outer, R.H. (AYP part number)

$

$

Not available

10

Poulan 132728

Assembly, Hub and Plate, R.H.
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

11

Poulan 6555J

Tine, Inner, R.H.
(Superseded to 532006555)

$

$

Not available
