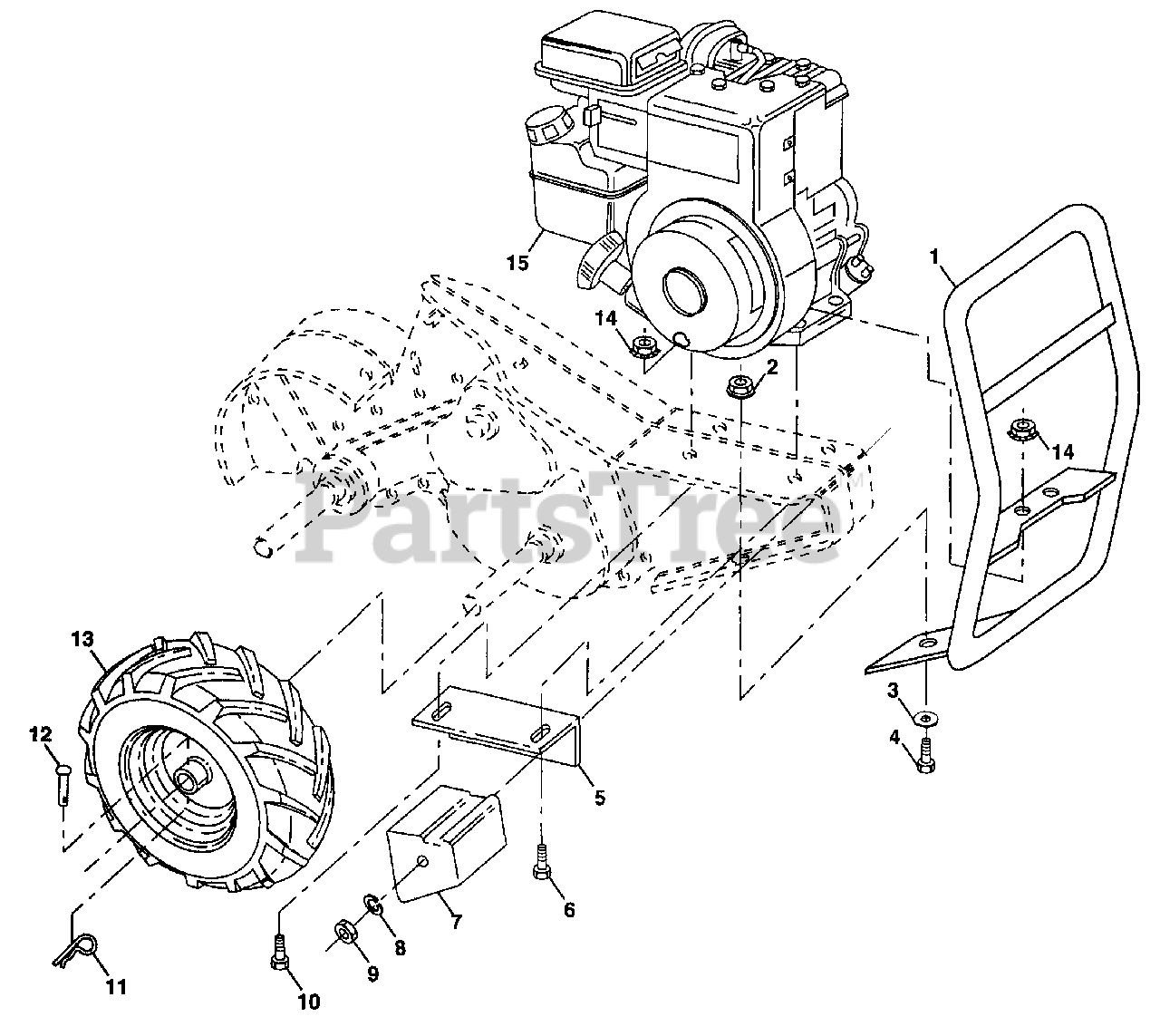

RT 55 A - Poulan Pro Rear-Tine Tiller Mainframe, Right Side Parts Diagram

Rear-Tine Tiller

Mainframe, Right Side Parts Diagram

  • Title
1

Poulan 155951

Bumper

$40.99

$

Usually ships in 3-10 days

0

2

Poulan 73970500

Locknut, Hex, Flange 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 74760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 532102332

Bracket, Reinforcement (AYP part number)
(Superseded to 581864701)

$

$

Not available

6

Poulan 74760532

Bolt, Hex 5/16-18 x 2
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 532102173

Counter Weight, R.H. (AYP part number)

$42.99

$

Usually ships in 3-10 days

0

8

Poulan 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

9

Poulan 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

10

Poulan 74760524

Bolt, Hex 5/16-18 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 124788X

Clip, Hairpin (AYP part number)

$

$

Not available

12

Poulan 126875X

Rivet, Drilled
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

13

Poulan 5015J

Tire
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

13

Poulan 124366X

Rim (AYP part number)

$

$

Not available

13

Poulan 532124718

Tire Valve (AYP part number)
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

14

Poulan 73510500

Nut, Keps 5/16-18

$2.99

$

Usually ships in 3-10 days

0

15

Engine, Tec

Note: (Model No. OHH55-69001A)

$

$

Not available
