RT 55 A - Poulan Pro Rear-Tine Tiller Mainframe, Left Side Parts Diagram

Rear-Tine Tiller

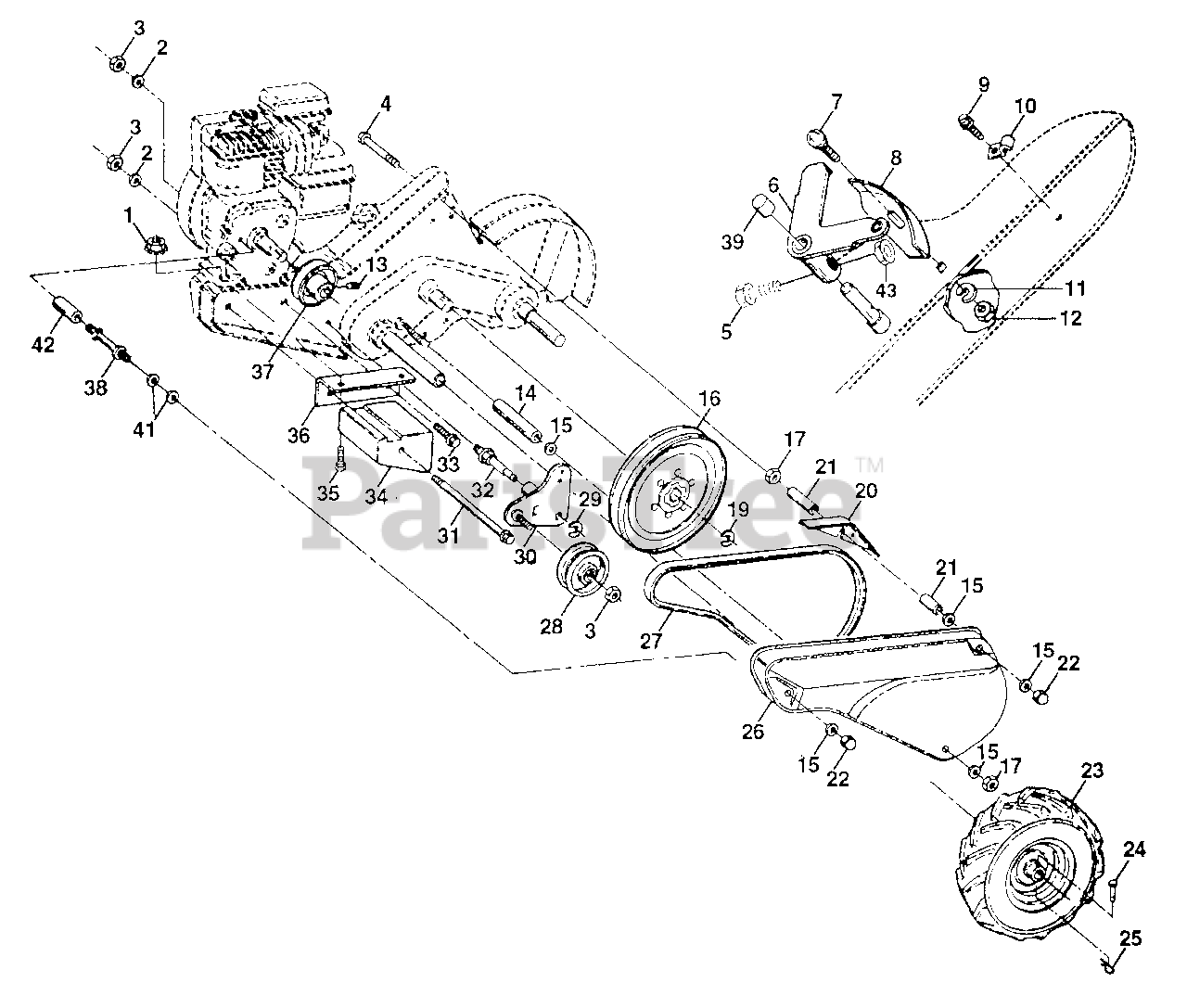

Mainframe, Left Side Parts Diagram

  • Title
1

Poulan 73510500

Nut, Keps 5/16-18

$2.99

$

Usually ships in 3-10 days

0

2

Poulan 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

3

Poulan 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

4

Poulan 74930568

Bolt, Hex 5/16-18 x 4-1/4
(Superseded to 874930568)

$

$

Not available

5

Poulan 154734

Screw Shift Lever

$

$

Not available

6

Poulan 532110111

Lever, Shift

$18.99

$

Usually ships in 3-10 days

0

7

Poulan 72110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5
(Superseded to 872110404)

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 8700J

Plate, Shift Indicator
(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

9

Poulan 86777

Screw, Hex, Washer Head, Slotted #10-24 x 1/2 (AYP part number)

$

$

Not available

10

Poulan 9484R

Clip
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

11

Poulan 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

12

Poulan 73220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Poulan 23230506

Screw, Set, Hex 5/16-18 x 3/8
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

14

Poulan 120938

Spacer, Split 0.327 x 0.42 x 2.68 (AYP part number)

$

$

Not available

15

Poulan 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 145102

Sheave, Transmission
(Superseded to 532145102)

$68.99

$

In Stock, only 3 left!

0

17

Poulan 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 12000028

Ring, Retainer (AYP part number)

$0.99

$

Usually ships in 3-10 days

0

20

Poulan 532110653

Guard, Pinch Point (AYP part number)

$

$

Not available

21

Poulan 145216

Spacer, Split 0.327 x 0.42 x 1.627

$

$

Not available

22

Poulan 532104214

Nut, Cap 5/16-18 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 5015J

Tire
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

23

Poulan 124366X

Rim (AYP part number)

$

$

Not available

23

Poulan 532124718

Tire Valve (AYP part number)
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

24

Poulan 126875X

Rivet, Drilled
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

25

Poulan 124788X

Clip, Hairpin (AYP part number)

$

$

Not available

26

Poulan 532125408

Guard, Belt (AYP part number)

$

$

Not available

27

Poulan 132801

Belt, V
(Superseded to 591372401)

$17.99

$

In Stock, only 3 left!

0

28

Poulan 104679

Pulley, Idler (AYP part number)

$

$

Not available

29

Poulan 12000032

Ring, Klip
(Superseded to 812000032)

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 532105611

Bracket, Idler (AYP part number)
(Superseded to 532159229)

$

$

Not available

31

Poulan 532102384

Bolt, Hex 5/16-16 x 12 (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

32

Poulan 532102141

Shaft, Idler Arm (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

33

Poulan 74760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 532102383

Counterweight, L. H. (AYP part number)

$133.99

$

Usually ships in 3-10 days

0

35

Poulan 74760532

Bolt, Hex 5/16-18 x 1-1/2
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

36

Poulan 532102331

Bracket, Reinforcement, L. H. (AYP part number)
(Superseded to 584366901)

$13.99

$

Usually ships in 3-10 days

0

37

Poulan 130812

Sheave, Engine
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Poulan 145822

Bracket, Guard Belt
(Superseded to 532145822)

$6.49

$

In Stock, only 1 left!

0

39

Poulan 140062

Cap, Plunger Blk
(Superseded to 532140062)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 19111610

Washer 11/32 x 1 x 10 Ga.
(Superseded to 819111610)

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 151004

Spacer

$2.49

$

Usually ships in 3-10 days

0

43

Poulan 69180

Nut Lock #10-24
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0
