RT 5 - Poulan Pro Rear-Tine Tiller TRANSMISSION Parts Diagram

Rear-Tine Tiller

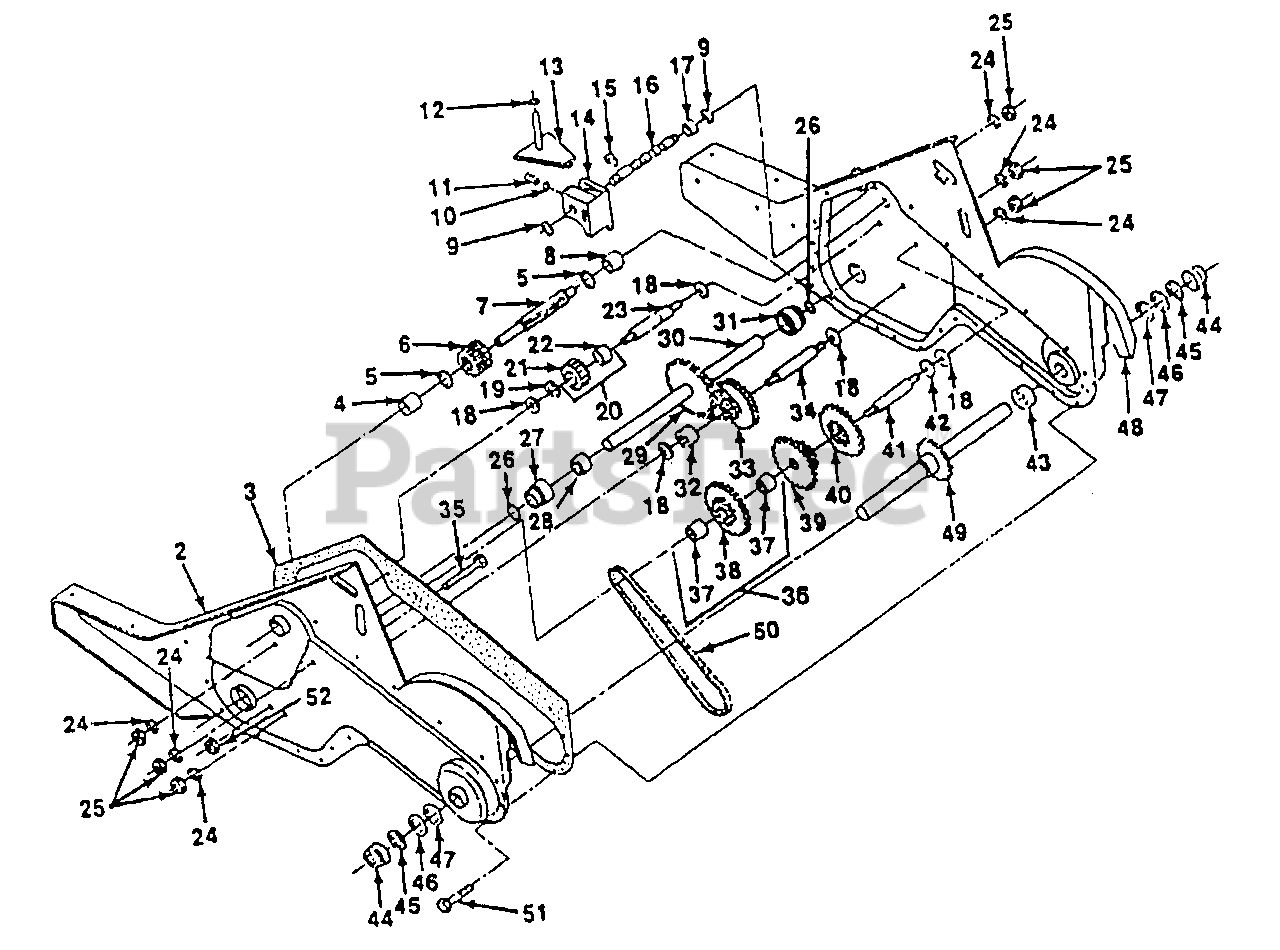

TRANSMISSION Parts Diagram

  • Title

1

Poulan 532121146

Transmission Assembly (Inc. 2-52) (AYP part number)
(Superseded to 532132718)

$

$

Not available

2

Poulan 532121147

Gearcase, L.H. w/Bearing (Inc. 4) (AYP part number)
(Superseded to 532150698)

$849.99

$

Usually ships in 3-10 days

0

3

Poulan 532106211

Gasket, Gearcase (AYP part number)
(Superseded to 532161963)

$24.99

$

In Stock, Qty 9

0

4

Poulan 532005020

Bearing, Needle (AYP part number)

$17.99

$

In Stock, Qty 5

0

5

Poulan 532001370

Washer, Thrust 5/8 x 1.10 x 1/32 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

6

Poulan 532102113

Pinion, Input (AYP part number)

$

$

Not available

7

Poulan 532102110

Shaft, Input (AYP part number)

$

$

Not available

8

Poulan 532124792

Bearing, Needle (AYP part number)
(Superseded to 532004895)

$17.99

$

In Stock, Qty 14

0

9

Poulan 532102136

Washer, Seal (AYP part number)

$7.49

$

In Stock, only 2 left!

0

10

Poulan 532124697

Ball, Steel (AYP part number)
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

11

Poulan 532100371

Spring, Shift, Fork (AYP part number)

$7.49

$

In Stock, only 4 left!

0

12

Poulan 532106160

O-Ring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 532102107

Arm, Shift (AYP part number)

$

$

Not available

14

Poulan 532008353

Fork, Shift

$34.99

$

In Stock, Qty 7

0

15

Poulan 812000039

Ring, Klip (AYP part number)

$6.49

$

In Stock, Qty 7

0

16

Poulan 532102109

Shaft, Shift (AYP part number)

$

$

Not available

17

Poulan 532104159

Spacer, Split (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532004358

Washer (AYP part number)

$7.49

$

In Stock, only 3 left!

0

19

Poulan 812000040

Ring, Klip (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 532102114

Gear, Assembly, Idler, Reverse (Includes Key Nos. 21 and 22)

$

$

Not available

21

Poulan 532102115

Gear, Idler, Reverse (AYP part number)

$26.99

$

In Stock, only 1 left!

0

22

Poulan 532006803

Bearing, Needle (AYP part number)

$10.99

$

In Stock, Qty 5

0

23

Poulan 532102111

Shaft, Idler, Reverse (AYP part number)

$22.99

$

Usually ships in 3-10 days

0

24

Poulan 810040700

Washer, Lock 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 873610700

Nut, Hex 7/16-20 (AYP part number)

$7.49

$

In Stock, only 4 left!

0

26

Poulan 532102128

O-Ring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 532102100

Bearing, Shaft, Ground Drive (AYP part number)

$

$

Not available

28

Poulan 532106390

Spacer 0.765 x 1.125 x 1.23 (AYP part number)

$5.99

$

In Stock, only 1 left!

0

29

Poulan 532102134

Chain #35-50 Pitch (AYP part number)

$31.99

$

Usually ships in 3-10 days

0

30

Poulan 532109204

Ground Shaft Assembly (AYP part number)
(Superseded to 532150737)

$

$

Not available

31

Poulan 532102106

Bearing, Shaft, Ground Drive (AYP part number)
(Superseded to 532143008)

$

$

Not available

32

Poulan 532106388

Spacer 0.70 x 1.00 x 1.150 (AYP part number)

$6.99

$

In Stock, only 1 left!

0

33

Poulan 532102121

Sprocket and Gear Assembly (AYP part number)

$

$

Not available

34

Poulan 532102112

Shaft, Reduction (2nd) (AYP part number)

$43.99

$

Usually ships in 3-10 days

0

35

Poulan 532102101

Screw, Whiz, Lock 5/16-18 x 3-1/2 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 532106141

Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) (AYP part number)
(Superseded to 532137300)

$

$

Not available

37

Poulan 532124791

Bearing, Needle (AYP part number)
(Superseded to 532004422)

$6.99

$

In Stock, only 2 left!

0

38

Poulan 532106142

Sprocket, Tine (AYP part number)
(Superseded to 532137300)

$

$

Not available

39

Poulan 532105345

Gear, Cluster, Red 1st & 2nd (AYP part number)
(Superseded to 532131527)

$

$

Not available

40

Poulan 532105346

Gear, Reverse (AYP part number)

$45.99

$

Usually ships in 3-10 days

0

41

Poulan 532008358

Shaft, Reduction (1st) (AYP part number)

$17.99

$

In Stock, only 1 left!

0

42

Poulan 532004220

Washer, Thrust (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

43

Poulan 532106146

Spacer 1.01 x 1.75 x 0.760

$34.99

$

Usually ships in 3-10 days

0

44

Poulan 532009672

Cup, Formed (AYP part number)
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

45

Poulan 532102144

Ring, Spiral (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

46

Poulan 532009676

Seal, Ring, Rubber (AYP part number)
(Superseded to 532147344)

$7.49

$

In Stock, only 3 left!

0

47

Poulan 532009674

Seal, Oil (AYP part number)
(Superseded to 532147344)

$7.49

$

In Stock, only 3 left!

0

48

Poulan 532121745

Gearcase, R.H. w/Bearing (AYP part number)
(Superseded to 532139546)

Note: (Includes Key No. 8)

$

$

Not available

49

Poulan 532106144

Shaft, Tine (AYP part number)
(Superseded to 532432058)

$

$

Not available

50

Poulan 532106147

Chain, Roller #50-50 Pitch (AYP part number)

$66.99

$

Usually ships in 3-10 days

0

51

Poulan 817580408

Screw 1/4-20 x 1/2 (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

52

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

Poulan 532006066

Grease, Plastilube #1
(Superseded to 585517301)

Note: Not Shown.

$

$

Not available
