RT 5 - Poulan Pro Rear-Tine Tiller TINES Parts Diagram

Rear-Tine Tiller

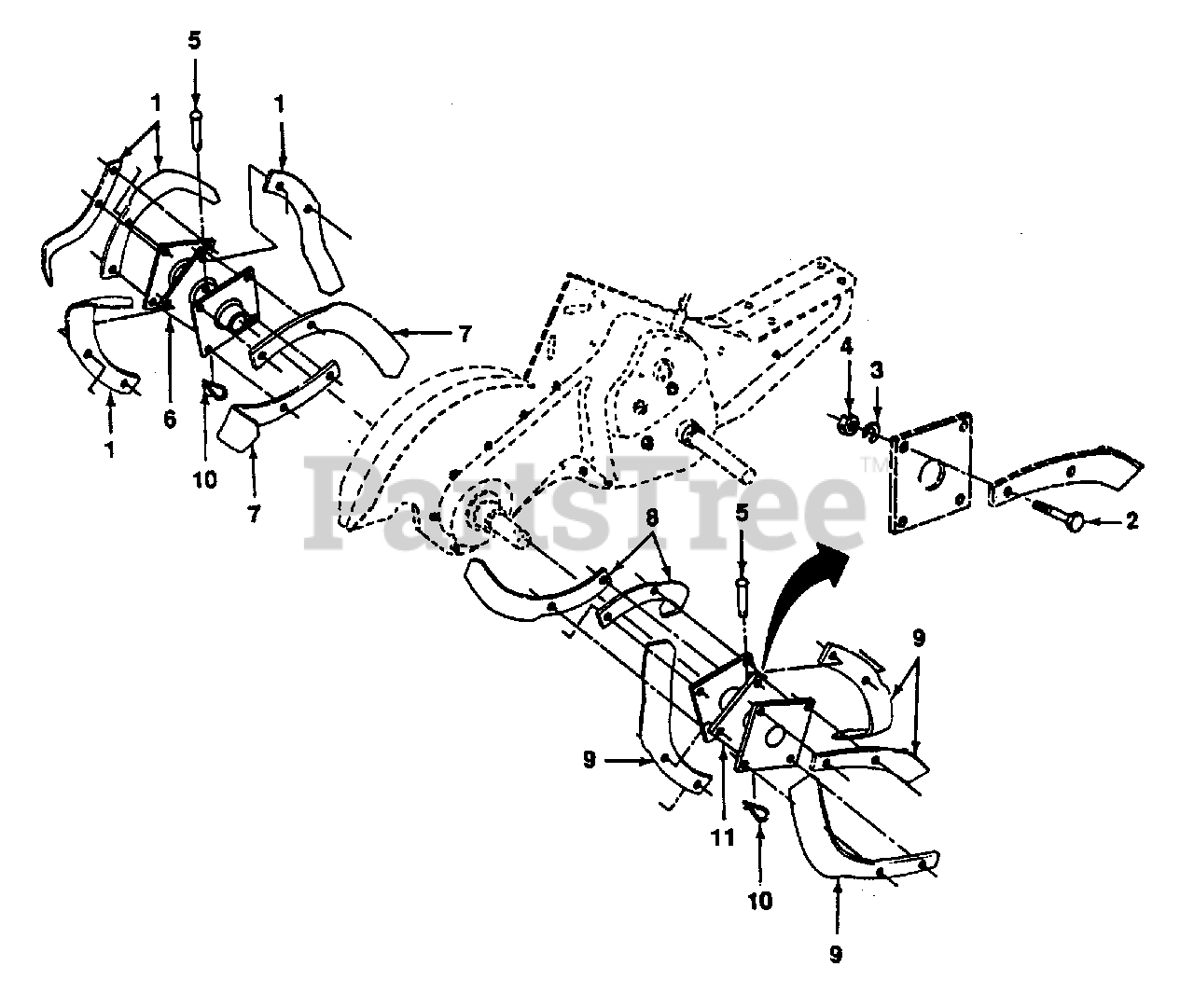

TINES Parts Diagram

  • Title
1

Poulan 532004459

Tine, L. H. Outer (AYP part number)
(Superseded to 532006554)

$

$

Not available

2

Poulan 874610616

Bolt, Hex 3/8-24 x 1 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

3

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

4

Poulan 873610600

Nut, Hex 3/8-24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 532004929

Pin, Clevis

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 532102380

Assembly, Hub and Plate L. H. (AYP part number)

$

$

Not available

7

Poulan 532006554

Tine, L. H. Inner (AYP part number)

$

$

Not available

8

Poulan 532006555

Tine, R. H. Inner (AYP part number)

$

$

Not available

9

Poulan 532004460

Tine, R. H. Outer (AYP part number)
(Superseded to 532006555)

$

$

Not available

10

Poulan 532124660

Clip, Hairpin (AYP part number)
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

11

Poulan 532102382

Assembly, Hub and Plate R. H. (AYP part number)

$

$

Not available
