RT 5 - Jonsered Rear-Tine Tiller (1995-01) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Tiller

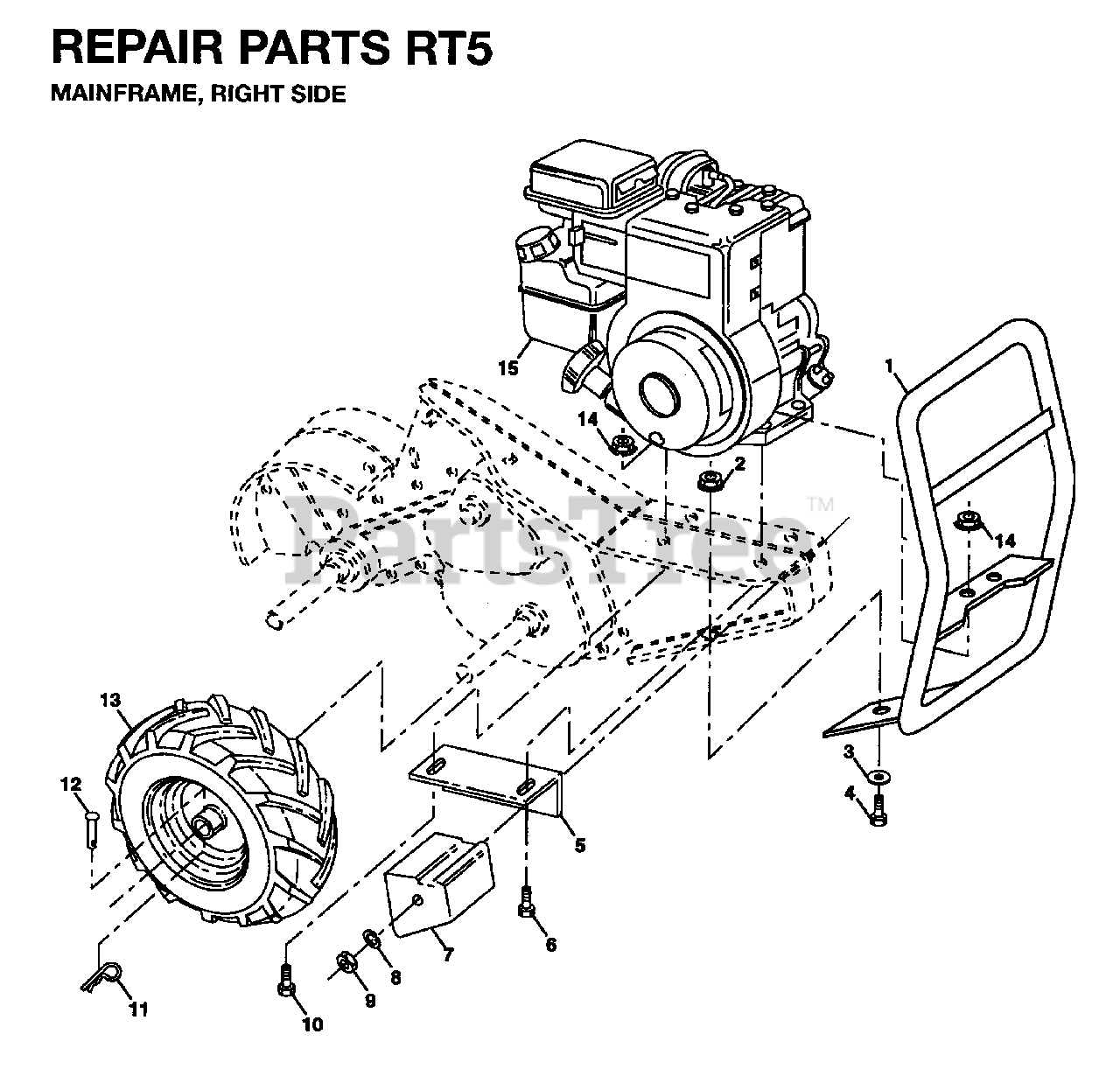

MAINFRAME RIGHT SIDE Parts Diagram

  • Title
1

Jonsered 532140271

BUMPER
(Superseded to 532146934)

$

$

Not available

2

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Jonsered 532102332

BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

7

Jonsered 532102173

COUNTERWEIGHT, RH

$42.99

$

Usually ships in 3-10 days

0

8

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

9

Jonsered 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

10

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

11

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Jonsered 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

$145.99

$

In Stock, only 2 left!

0

5321289-52

Jonsered 532128952

WHEEL.8X2-3/4.TILLER /RIM ONLY

$

$

Not available

5320651-39

Jonsered 532065139

VALVE STEM LT

$9.99

$

In Stock, only 3 left!

0

14

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
