RT 5 (JNART5A) - Jonsered Rear-Tine Tiller (2003-01) HANDLE CONTROLS Parts Diagram

Rear-Tine Tiller

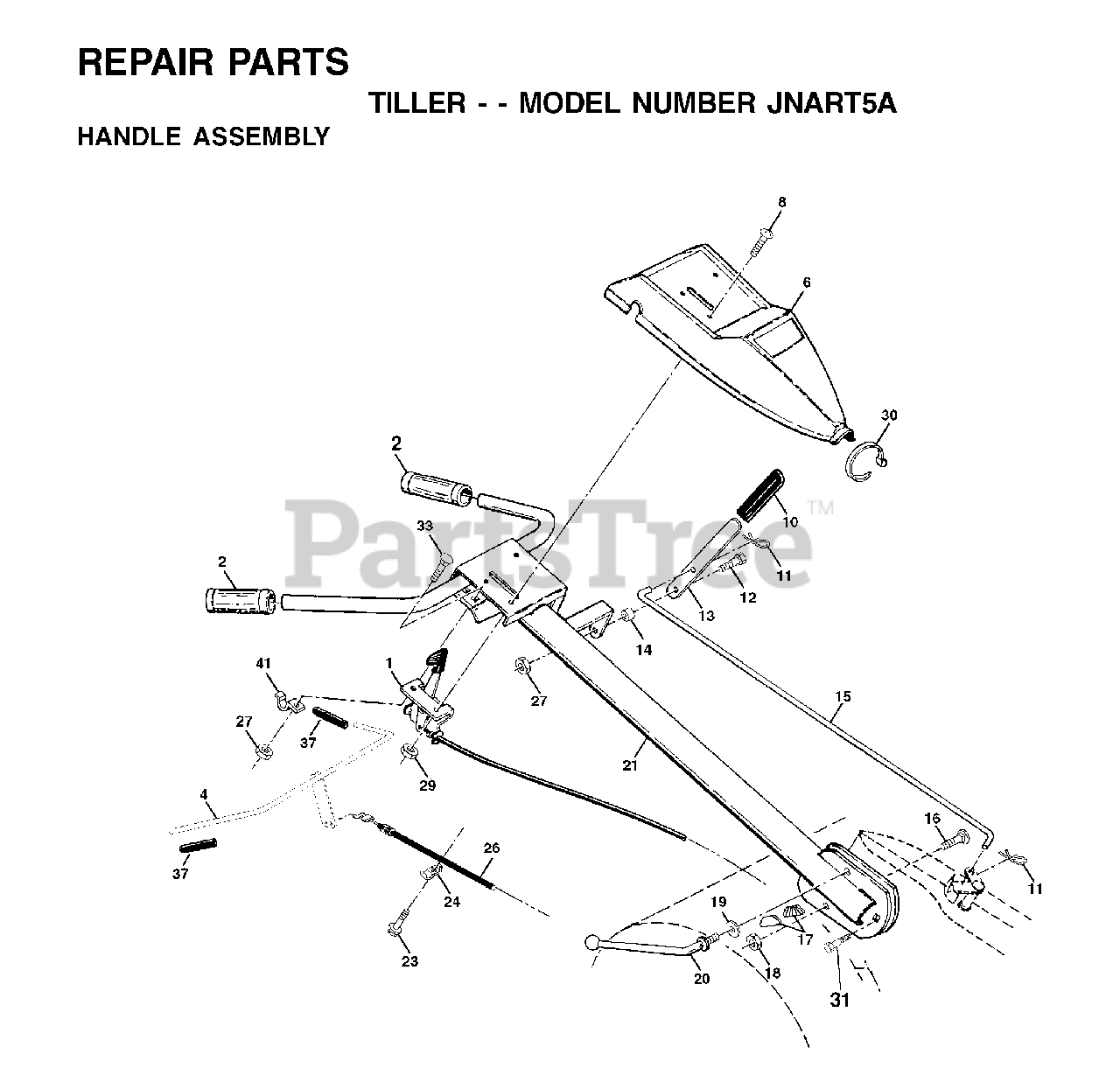

HANDLE CONTROLS Parts Diagram

  • Title
1

Jonsered 532175250

CONTROL, THROTTLE

$44.99

$

Usually ships in 3-10 days

0

2

Jonsered 532009266

GRIPS (2EACH)

$

$

Not available

4

Jonsered 532159228

CONTROL BAR ASSY
(Superseded to 584370701)

$

$

Not available

6

Jonsered 532126951

No Description Available
(Superseded to 126951X)

$

$

Not available

8

Jonsered 871191008

SCREW.PNHD.10-24

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532124797

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

11

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Jonsered 532081328

SHOULDER BOLT ST

$6.49

$

In Stock, only 1 left!

0

13

Jonsered 532109335

SHIFT HANDLE CRT

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 532109313

GROMMET.RUBBER.CRT.TILLER

$7.49

$

Usually ships in 3-10 days

0

15

Jonsered 532109337

SHIFT ROD CRT

$37.99

$

Usually ships in 3-10 days

0

16

$6.49

$

Usually ships in 3-10 days

0

17

$7.49

$

In Stock, only 3 left!

0

18

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

19

Jonsered 819131611

WASHER CRT
(Superseded to 596140201)

$3.99

$

In Stock, only 1 left!

0

20

Jonsered 532109228

LEVER.LOCK.CRT

$13.99

$

In Stock, only 1 left!

0

21

Jonsered 532154106

No Description Available

$

$

Not available

23

Jonsered 532086777

TAPPING SCREW
(Superseded to 532750097)

$4.99

$

In Stock, Qty 14

0

24

Jonsered 532009484

CONDUIT CLIP T

$6.49

$

In Stock, only 4 left!

0

26

Jonsered 532159231

CABLE.CLUTCH

$31.99

$

In Stock, Qty 5

0

27

Jonsered 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

29

Jonsered 873731000

NUT **
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

30

Jonsered 532104164

TIE CABLE CRT

$6.49

$

In Stock, only 1 left!

0

31

Jonsered 532150696

BOLT.PIVOT

$7.49

$

In Stock, only 3 left!

0

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532102604

GRIP BAR CRT(1)

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 532102744

CLAMP.BAR.CRT.BLACK

$

$

Not available
