RT 5 JA - Poulan Pro Rear-Tine Tiller TINE SHIELD Parts Diagram

Rear-Tine Tiller

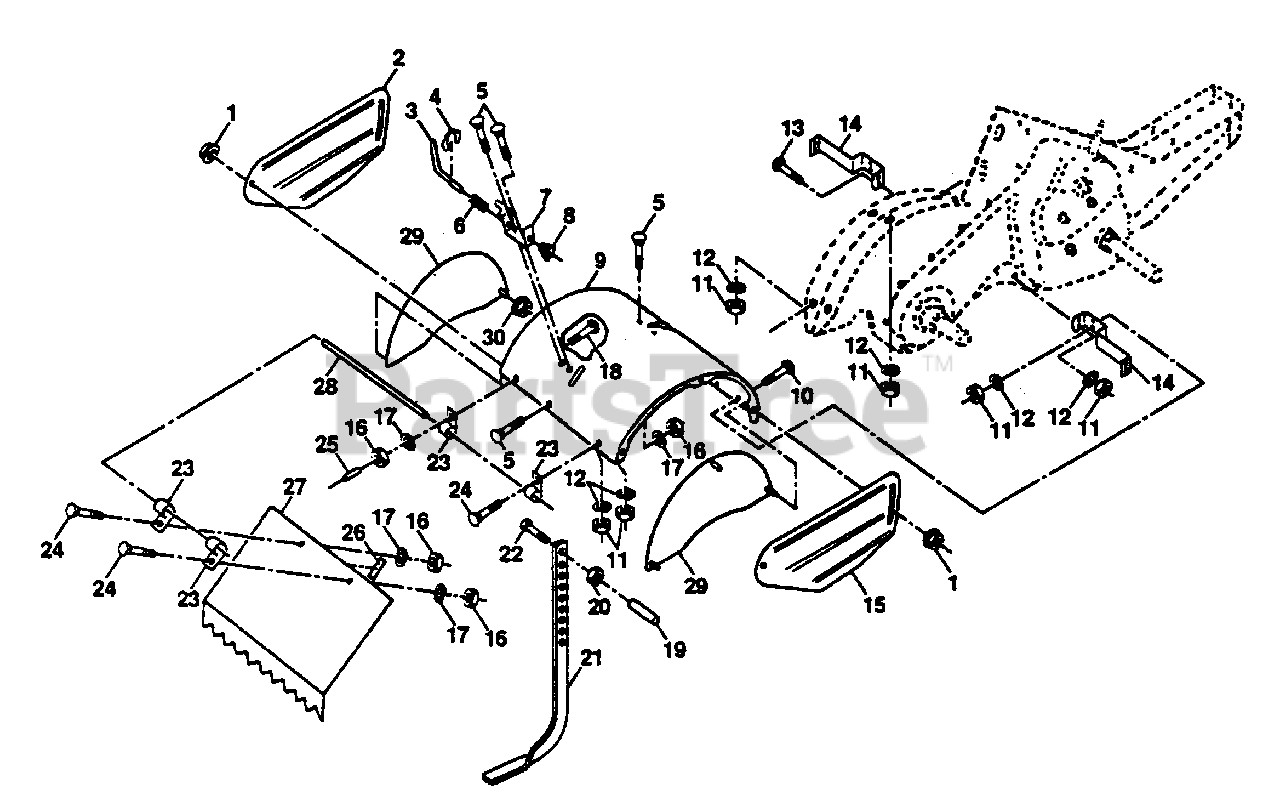

TINE SHIELD Parts Diagram

  • Title

1

Poulan 898000129

Nut, Flange 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

2

Poulan 532104086

Shield, Side, Outer L. H. (AYP part number)
(Superseded to 532440452)

$20.99

$

Usually ships in 3-10 days

0

3

Poulan 532008393

Pin, Stake, Depth (AYP part number)

$31.99

$

In Stock, only 1 left!

0

4

Poulan 812000036

Ring, Klip (AYP part number)

$6.49

$

In Stock, only 1 left!

0

5

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 532008394

Spring (AYP part number)

$9.49

$

In Stock, only 1 left!

0

7

Poulan 532008392

Bracket, Latch (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

8

Poulan 532109230

Spring, Depth Stake (AYP part number)

$6.49

$

In Stock, Qty 11

0

9

Poulan 532124736

Shield, Tine (AYP part number)

$

$

Not available

10

Poulan 872140508

Bolt, Carriage 5/16-18 UNC x 1 (AYP part number)
(Superseded to 595901501)

$4.99

$

In Stock, Qty 7

0

11

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 872110510

Bolt, Carriage 5/16-18 x 1-1/4 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

14

Poulan 532124311

Bracket, Shield Tine (AYP part number)
(Superseded to 581813501)

$13.99

$

Usually ships in 3-10 days

0

15

Poulan 532104101

Shield, Side, Outer R.H. (AYP part number)
(Superseded to 532195795)

$14.99

$

Usually ships in 3-10 days

0

16

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

17

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

18

Poulan 872040410

Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532102701

Grip (AYP part number)

$

$

Not available

20

Poulan 873220600

Nut, Hex 3/8-16 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

21

Poulan 532144437

Stake, Depth (AYP part number)
(Superseded to 532102156)

$28.99

$

Usually ships in 3-10 days

0

22

Poulan 874930632

Bolt, Hex 3/8-16 x 2 (AYP part number)

$6.99

$

In Stock, only 2 left!

0

23

Poulan 532004440

Hinge (AYP part number)

$6.49

$

In Stock, only 1 left!

0

24

Poulan 872140404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 532124717

Cap, Vinyl (AYP part number)
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 532109227

Pad, Idler (AYP part number)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532124714

Shield, Leveling (AYP part number)

$

$

Not available

28

Poulan 532120588

Pin, Hinge (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

29

Poulan 532124737

Shield, Side (AYP part number)

$

$

Not available

30

Poulan 873970500

Locknut, Flange 5/16-18 (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
