RT 5 JA - Poulan Pro Rear-Tine Tiller MAINFRAME, RIGHT SIDE Parts Diagram

Rear-Tine Tiller

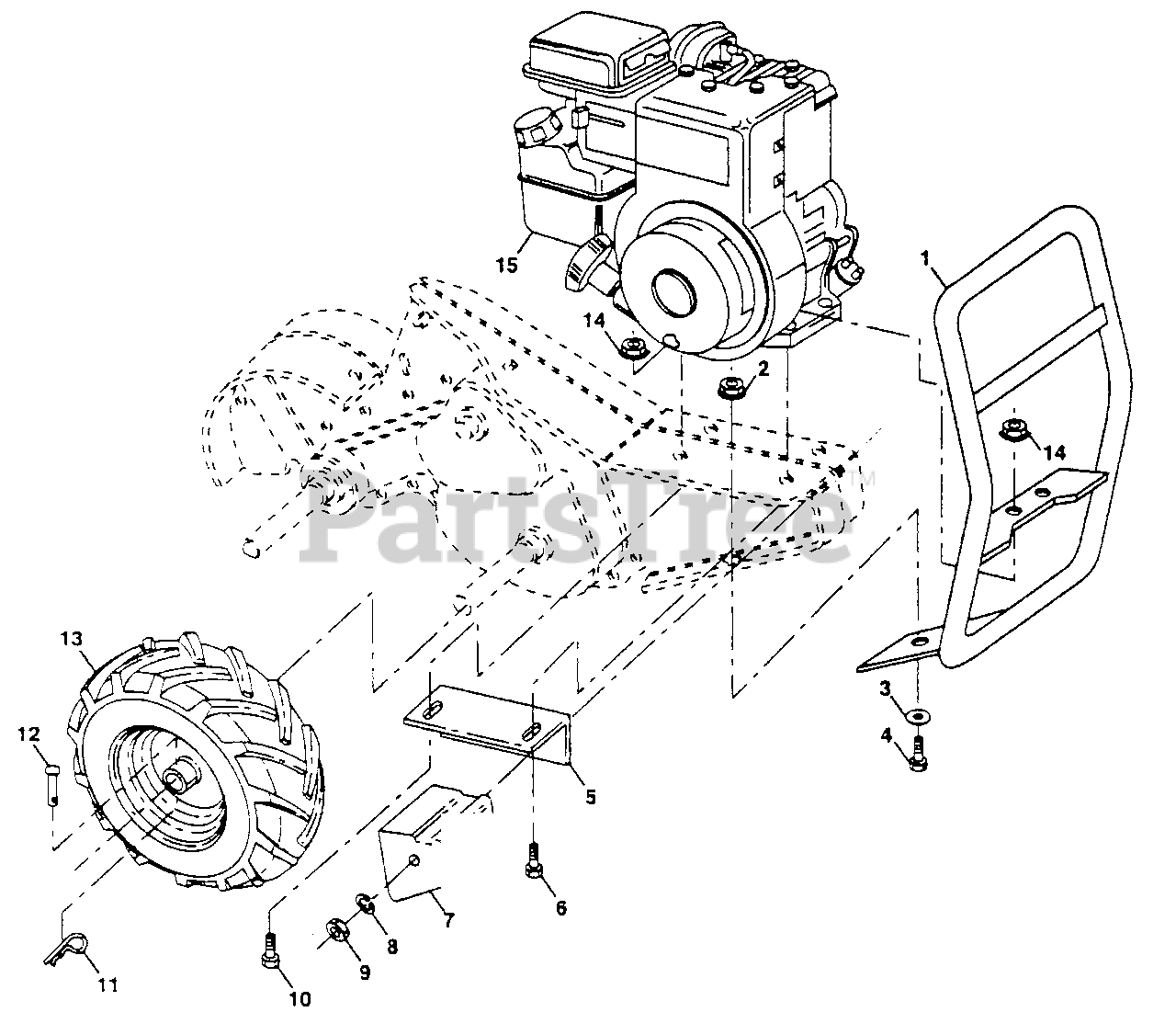

MAINFRAME, RIGHT SIDE Parts Diagram

  • Title

1

Poulan 532140271

Bumper (AYP part number)
(Superseded to 532146934)

$

$

Not available

2

Poulan 873970500

Locknut, Hex, Flange 5/16-18 (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 819111116

Washer 11/32 x 11/16 x 16 Ga. (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 874760512

Bolt, Hex 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 532102332

Bracket, Reinforcement (AYP part number)
(Superseded to 581864701)

$

$

Not available

6

Poulan 874760532

Bolt, Hex 5/16-18 x 2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 532102173

Counter Weight, R.H. (AYP part number)

$42.99

$

Usually ships in 3-10 days

0

8

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

9

Poulan 873220600

Nut, Hex 3/8-16 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

10

Poulan 874760524

Bolt, Hex 5/16-18 x 1-1/2 (AYP part number)
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 532124788

Clip, Hairpin (AYP part number)
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Poulan 532126875

Rivet, Drilled (AYP part number)

$6.49

$

In Stock, Qty 20+

0

13

Poulan 532005015

Tire (AYP part number)

$145.99

$

In Stock, only 2 left!

0

Poulan 532128952

Rim (AYP part number)

$

$

Not available

Poulan 532124718

Tire Valve (AYP part number)
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

14

Poulan 873510500

Nut, Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0
