RT 5 (954130057) - Jonsered Rear-Tine Tiller (2002-03) TINE SHIELD Parts Diagram

Rear-Tine Tiller

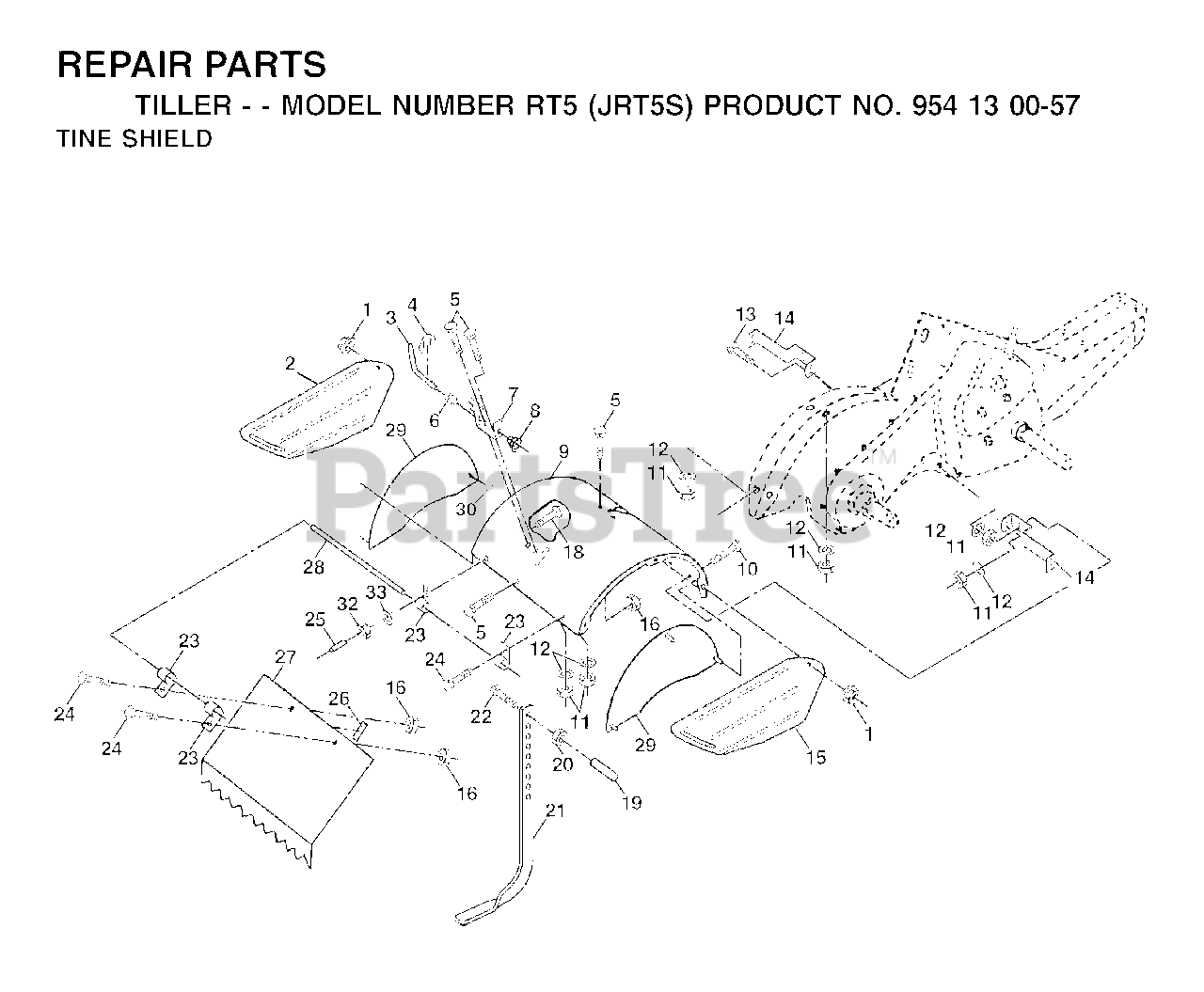

TINE SHIELD Parts Diagram

  • Title
1

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

2

Jonsered 532164062

No Description Available

$30.99

$

Usually ships in 3-10 days

0

3

Jonsered 532008393

STAKE PIN TI

$31.99

$

In Stock, only 1 left!

0

4

Jonsered 812000035

RING, KLIP

$7.49

$

In Stock, Qty 10

0

5

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Jonsered 532008394

SPRING TI

$9.49

$

In Stock, only 1 left!

0

7

Jonsered 532008392

LATCH BRACKET TI

$5.99

$

Usually ships in 3-10 days

0

8

Jonsered 532109230

SPRING CRT

$6.49

$

In Stock, Qty 11

0

9

Jonsered 532142036

No Description Available
(Superseded to 532442858)

$54.99

$

Usually ships in 3-10 days

0

10

Jonsered 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, Qty 7

0

$6.49

$

Usually ships in 3-10 days

0

12

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

14

Jonsered 532124311

BRACKET.TINE.SHIELD.TILLER
(Superseded to 581813501)

$13.99

$

Usually ships in 3-10 days

0

15

Jonsered 532164061

No Description Available
(Superseded to 532442869)

$

$

Not available

16

Jonsered 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

$6.49

$

Usually ships in 3-10 days

0

19

$

$

Not available

20

Jonsered 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

21

Jonsered 532102156

STAKE DEPTH CRT
(Superseded to 532144437)

$21.99

$

Usually ships in 3-10 days

0

22

Jonsered 874930632

BOLT.375-16

$6.99

$

In Stock, only 2 left!

0

23

Jonsered 532004440

HINGE CRT

$6.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

25

Jonsered 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Jonsered 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

27

Jonsered 532125410

No Description Available
(Superseded to 583641501)

$21.99

$

Usually ships in 3-10 days

0

28

Jonsered 532120588

PIN.HINGE.TILLER

$7.99

$

Usually ships in 3-10 days

0

29

Jonsered 532142037

No Description Available
(Superseded to 532442868)

$

$

Not available

30

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

32

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0
