RT 5 (85220) - Snapper Rear-Tine Tiller, 5hp Engine & Drive Parts Parts Diagram

Rear-Tine Tiller, 5hp

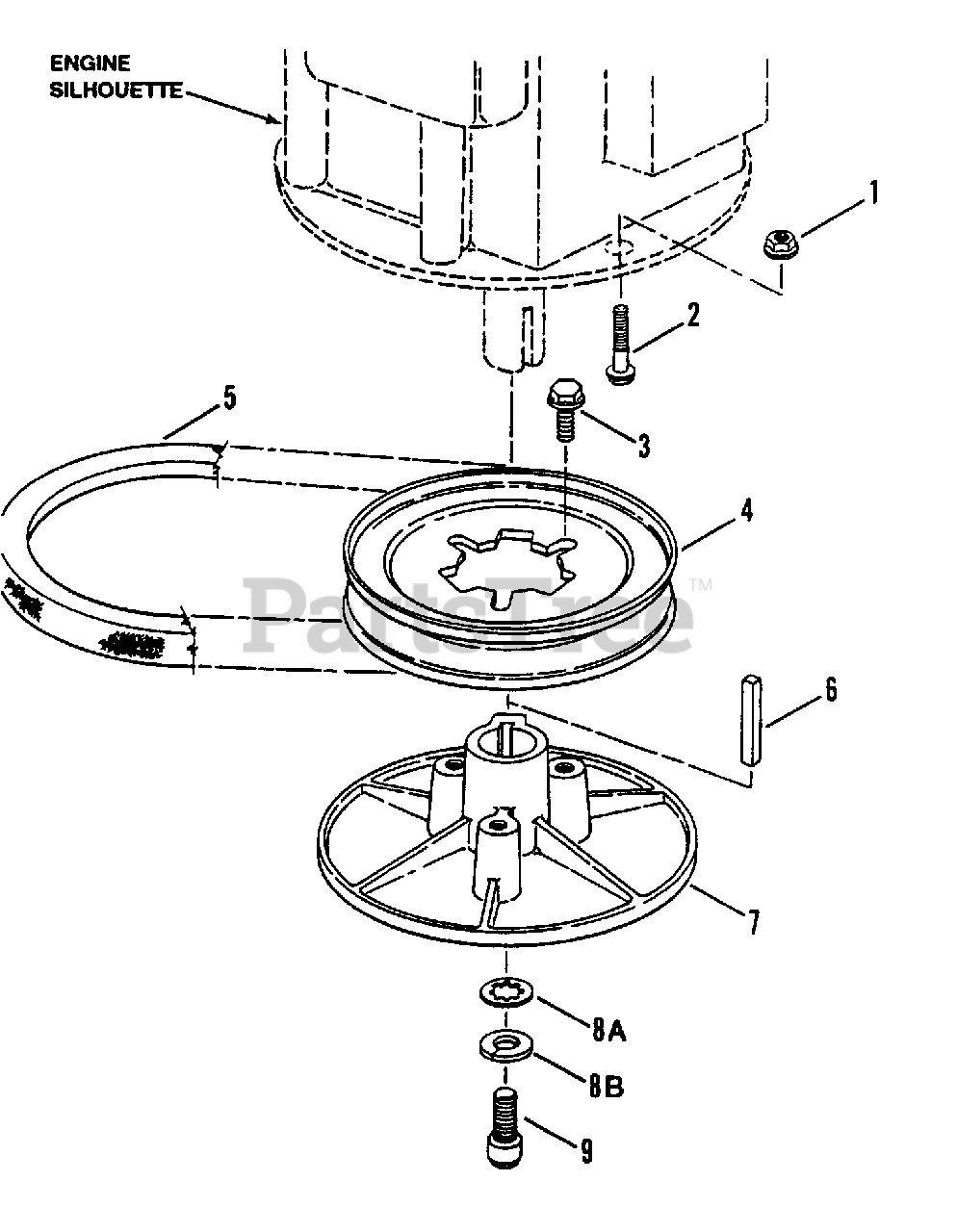

Engine & Drive Parts Parts Diagram

  • Title

--

* ENGINE, 5 HP B&S Manual Start, Model #130902-1151-0

Note: Not shown

$

$

Not available

--

* ENGINE, 5 HP Wisconsin Robin Manual Start, Model #WI-1854-800427

Note: Not shown

$

$

Not available

--

* ENGINE, 8 HP B&S Manual Start, Model #190707-2170-01

Note: Not shown

$

$

Not available

--

* ENGINE, 8 HP B&S Electric Start, Model #190702-2136-01

Note: Not shown

$

$

Not available

1

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

2

Snapper 7090700

BOLT, 5/16-18 x 1 1/2" Hex Flange Lock, Engine Mounting
(Superseded to 7091602SM)

Note: (8HP & 5HP)

$3.99

$

In Stock, Qty 5

0

3

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

4

Snapper 7014738

PULLEY, Drive
(Superseded to 7014738YP)

$76.99

$

Usually ships in 2-12 days

0

5

Snapper 7014353

V-BELT (8 HP) 4L x 62.38" EL Kevlar
(Superseded to 7014353YP)

$

$

Not available

5

Snapper 7014686

V-BELT (5 HP) 4L x 62.0" EL Kevlar
(Superseded to 7014686YP)

$

$

Not available

6

Snapper 7010210

KEY, 1/4 x 2" (RT5 & 8HP)
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

6

Snapper 7010783

KEY, Hi-Pro #505 (RT5X)
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7018566

PLATE, Drive (RT5 & 8HP)
(Superseded to 7018566YP)

$

$

Not available

7

Snapper 7018830

PLATE, Drive (RT5X)
(Superseded to 7018830YP)

$

$

Not available

8A

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock (5HP)
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

8B

Snapper 7091301

WASHER, 7/18 Split Lock (8HP)
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7090835

SCREW, 3/8-24 x 1" Allen-Head Cap (5HP)

$

$

Not available

9

Snapper 7090836

SCREW, 7/16-20 x 1" Allen-Head Cap (8HP)

$

$

Not available
