RT-45 (21AA40M8710) - Cub Cadet Rear-Tine Tiller (2015) Tine & Drive Parts Diagram

Rear-Tine Tiller

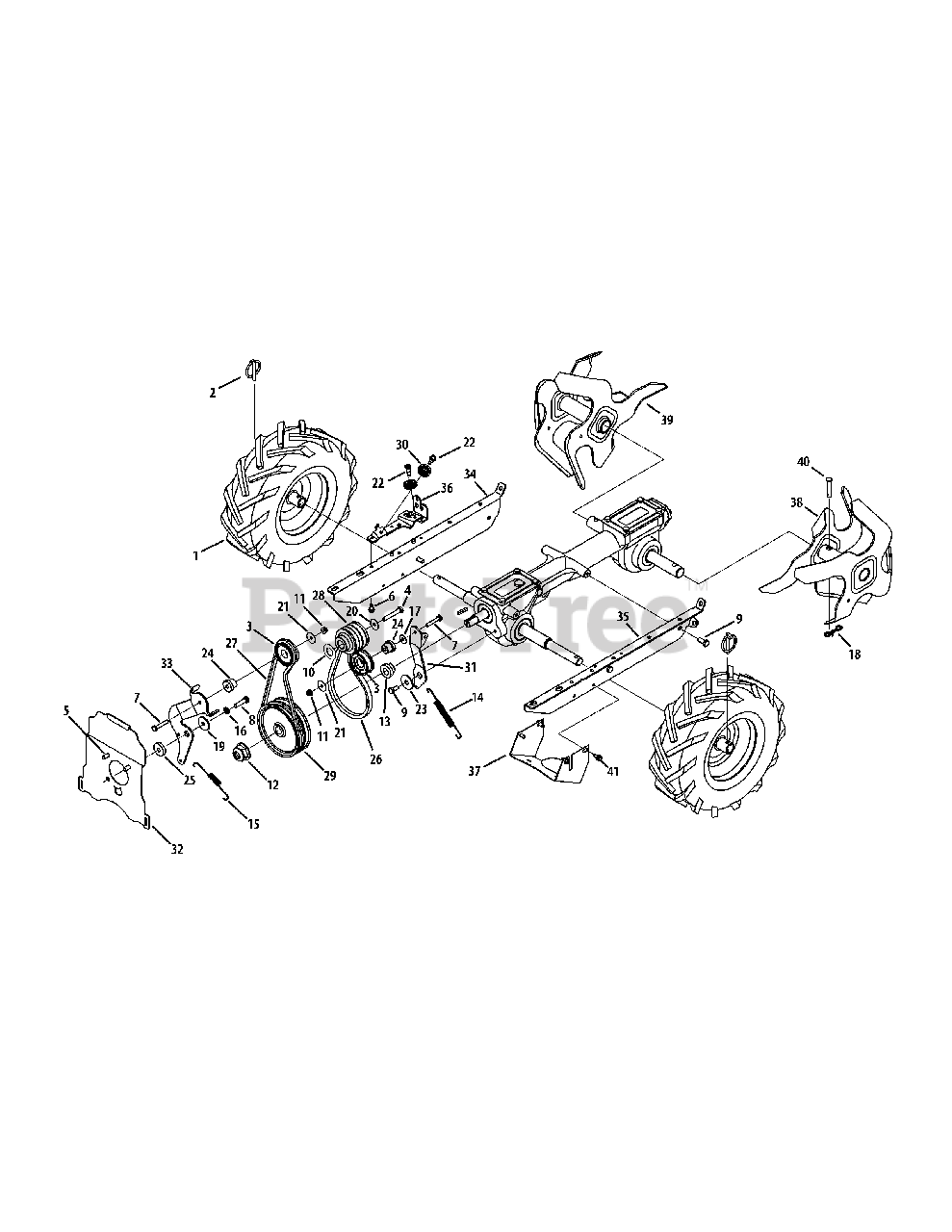

Tine & Drive Parts Diagram

  • Title

1

Cub Cadet 934-04736

Complete Whl. Ass., 13 x 5 x 6

$185.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 634-04735

Rim, 6.0 X 3.25

$60.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 734-04163A

Tire, 13 x 5 x 6

$114.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 714-0143A

Klik Pin

$6.49

$

In Stock, Qty 7

0

3

Cub Cadet 684-04168

Idler Pulley Assembly

$38.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-0151

Hex Head Screw, 3/8-24 x 2.00

$7.49

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0170

Hex Head Screw, 5/16-24 x .625

$6.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

8

Cub Cadet 710-0672

Hex Head Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 18

0

9

Cub Cadet 710-1880

Hex Head Screw, 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

10

Cub Cadet 736-0315

Washer, Flat, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

11

Cub Cadet 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0700

Nut, 9/16-18, Flange Lock

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet 718-04407

Hub, 5/8 Spline

$12.99

$

In Stock, Qty 20+

0

14

Cub Cadet 732-04085

Extension Spring, .480 OD X 5.00 LG

$14.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-04276A

Extension Spring, LT5 PTO

$9.99

$

In Stock, only 1 left!

0

16

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0173

Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 18

0

19

Cub Cadet 736-0343

Flat Washer, .330 X 1.25 X .120

$4.49

$

In Stock, Qty 7

0

20

Cub Cadet 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

21

Cub Cadet 736-3092

Flat Washer, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 9

0

22

Cub Cadet 738-04425

Shoulder Screw, .342 x .335 1/4-28

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 748-04087A

Pivot Idler Spacer

$6.49

$

In Stock, Qty 9

0

24

Cub Cadet 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

25

Cub Cadet 750-04907

Pivot Idler Spacer

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 954-04090

V-Belt, 4L x 25.375 Long

$20.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 954-04091

V-Belt, 3L x 29.125 Long

$18.99

$

In Stock, only 3 left!

0

28

Cub Cadet 756-04198A

Engine Pulley

$55.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 756-04355

Transmission Pulley

$55.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

31

Cub Cadet 786-04312

Idler Bracket, Forward

$13.99

$

In Stock, only 1 left!

0

32

Cub Cadet 786-04343-4021

Cover Plate

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 786-04346

Idler Bracket, Reverse

$10.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 786-04416A-4021

Mounting Frame, RH
(Superseded to 786-04416B-4021)

$31.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 786-04415B-4021

Mounting Frame, LH
(Superseded to 786-04415D-4021)

$31.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 786-04357-4021

Pulley Bracket
(Superseded to 786-04357A-4021)

$9.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 786-04371-4021

Pulley Shield

$18.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 642-04071-4021

Tine Assembly, LH

$110.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 642-04072-4021

Tine Assembly, RH

$110.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0896

Self Tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0
