RT-45 (21AA40M8710) - Cub Cadet Rear-Tine Tiller (2015) Handle & Tine Shield Parts Diagram

Rear-Tine Tiller

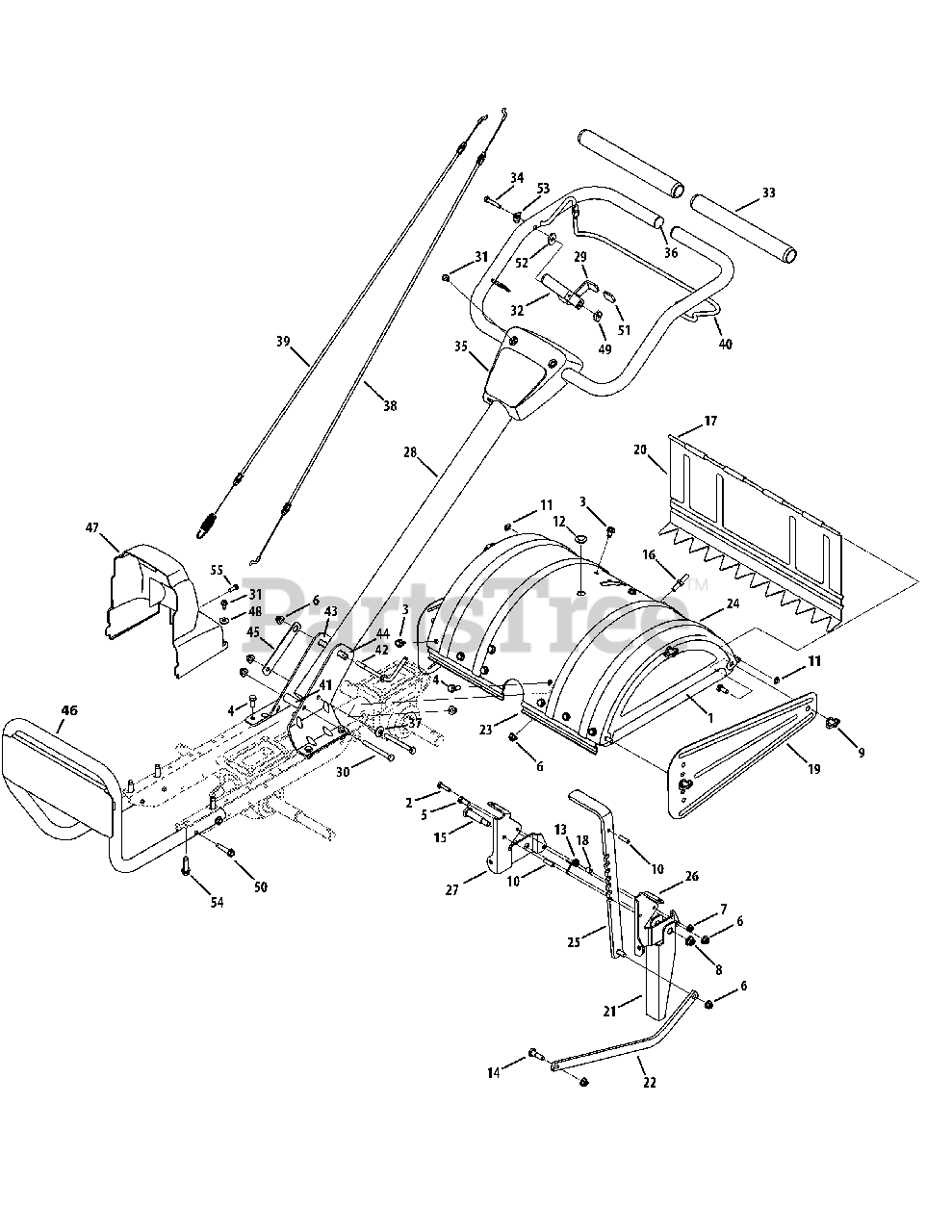

Handle & Tine Shield Parts Diagram

  • Title
1

Cub Cadet 686-0044B-4021

End Cover Assembly

$84.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0597

Hex Head Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 13

0

3

Cub Cadet 710-0604A

Hex Head Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

Hex Head Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0421

Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 715-0108

Spirol Pin

$4.99

$

In Stock, Qty 15

0

11

Cub Cadet 926-0106

Cap Nut, 1/4 Rod
(Superseded to 726-0106)

$

$

Not available

12

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 11

0

14

Cub Cadet 738-04320

Shoulder Screw, .405 x .435 5/16-18

$5.49

$

In Stock, only 2 left!

0

15

Cub Cadet 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 938-0849

Stop Screw

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

19

$36.99

$

In Stock, only 1 left!

0

20

Cub Cadet 786-0113A-4021

Rear Tine Shield

$90.99

$

In Stock, only 4 left!

0

21

Cub Cadet 786-04092-4021

Reverse Stop Arm

$22.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 786-04352A-4021

Tine Shield Mounting Bracket

$32.99

$

Usually ships in 3-6 days

0

24

$81.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 786-04356A-4021

Adjustable Depth Bar

$34.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 786-04363-4021

Tail Bracket, LH

$23.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-04364-4021

Tail Bracket, RH

$23.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 649-04098A-4021

Upper Handle Assembly
(Superseded to 649-04098B-4021)

$108.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 686-04135-4021

Reverse Handle Assembly

$25.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0189

Hex Head Screw, 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

31

Cub Cadet 710-0599

Self-Tapping Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 731-04735

Handle Select

$20.99

$

In Stock, only 1 left!

0

33

Cub Cadet 720-0278A

Foam Handle Grip

$22.99

$

In Stock, only 3 left!

0

34

Cub Cadet 710-3288

Hex Head Screw, 1/4-20 x 1.62

$6.99

$

In Stock, Qty 12

0

35

Cub Cadet 731-06253A

Handle Cover
(Superseded to 731-06253B)

$23.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 735-04105

Plug End
(Superseded to 735-04105A)

$5.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 946-04504

Reverse Cable

$33.99

$

In Stock, only 4 left!

0

39

Cub Cadet 946-04506

Forward Cable

$36.99

$

In Stock, Qty 6

0

40

$29.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 750-0885A

Spacer, .322 x .625 x 2.00

$11.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 786-0340B

Handle Crank

$19.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 786-04344-4021

Handle Bracket, RH

$34.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 786-04345-4021

Handle Bracket, LH

$34.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 786-04358

Retainer Nut Bracket

$10.99

$

Usually ships in 3-6 days

0

46

$59.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 731-11121

Belt Cover

$35.99

$

In Stock, only 1 left!

0

48

Cub Cadet 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 738-0440

Spacer, .375 x .165

$5.99

$

In Stock, only 4 left!

0

50

Cub Cadet 710-04605A

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

51

Cub Cadet 920-04173

Reverse Handle Grip

$4.49

$

In Stock, only 3 left!

0

52

Cub Cadet 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

53

Cub Cadet 936-0451

Saddle Washer, .320 x .930 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

54

Cub Cadet 710-0502A

SEMS Screw, 3/8-16

$6.99

$

In Stock, only 2 left!

0

55

Cub Cadet 710-0896

Self Tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0
