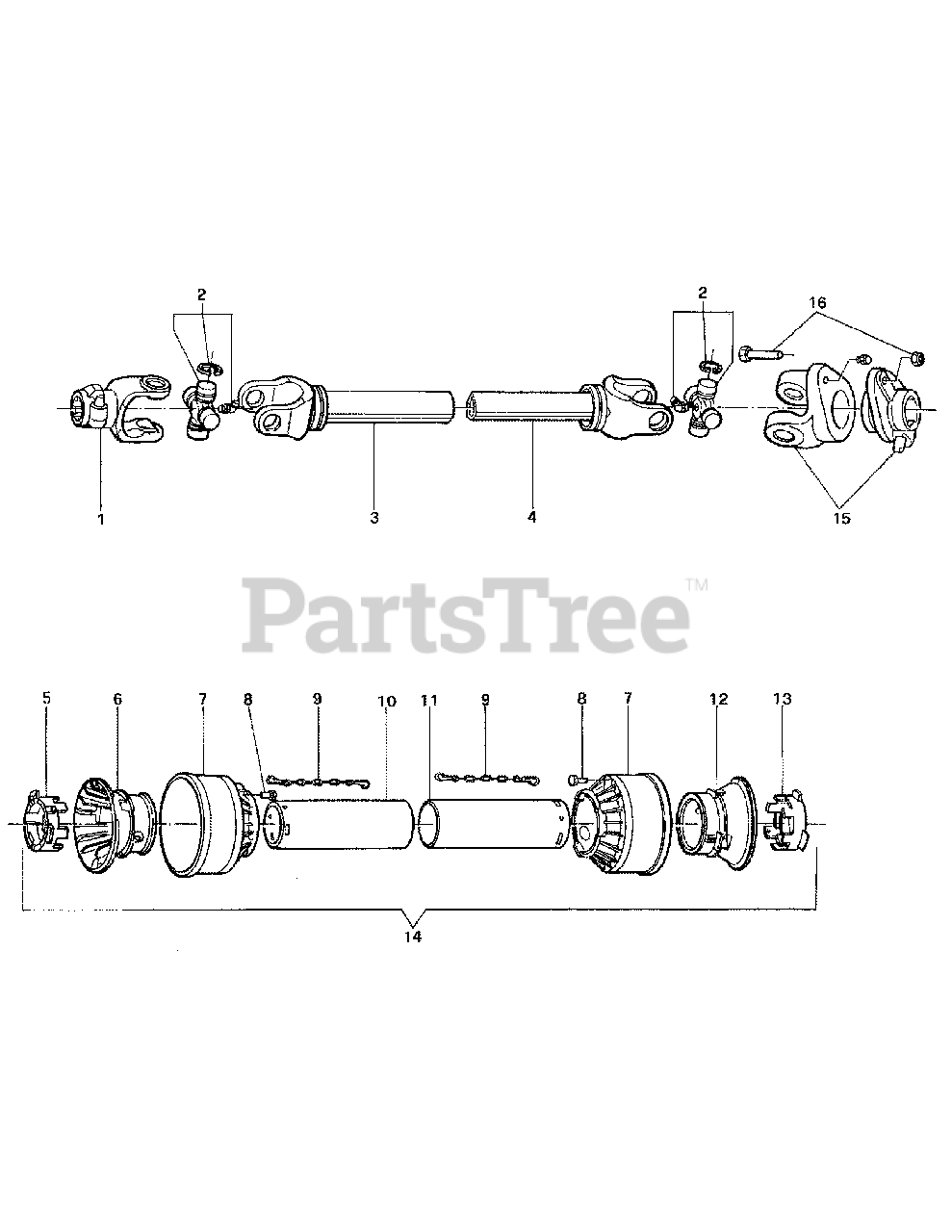

RT-42 (59A40030727) - Cub Cadet Yanmar Tractor 42" Rotary Tiller Driveline (shearbolt) Below 1F048001 V2 Parts Diagram

Tractor 42" Rotary Tiller

Driveline (shearbolt) Below 1F048001 V2 Parts Diagram

  • Title

1

Cub Cadet YS-023-001E

PTO Yoke
(Superseded to BF-023-001E)

$

$

Not available

2

Cub Cadet YS-013-130E

Cross & Bearing
(Superseded to BF-013-130E)

$

$

Not available

3

Cub Cadet YS-1943045NC

Outer tube for V2

$

$

Not available

4

Cub Cadet YS-1953047NC

Inner tube for V2

$

$

Not available

5

Cub Cadet YS-1784210C

Outer locking ring (below #1F048001)
(Superseded to BF-1784210C)

$

$

Not available

6

Cub Cadet YS-1784201C

Outer tube rigid cone (below #1F048001)
(Superseded to BF-1784201C)

$26.99

$

In Stock, only 1 left!

0

7

Cub Cadet YS-1781703C

Outer cone (below #1F048001)

$

$

Not available

8

Cub Cadet YS-1784212C

Pin (below #1F048001)
(Superseded to BF-1784212C)

$

$

Not available

9

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

10

Cub Cadet YS-1773043C

Female tube shield
(Superseded to BF-1773043C)

$

$

Not available

11

Cub Cadet YS-1872043C

Male tube shield
(Superseded to BF-1872043C)

$

$

Not available

12

Cub Cadet YS-1784202C

Inner tube rigid cone (below #1F048001)
(Superseded to BF-1784202C)

$

$

Not available

13

Cub Cadet YS-1784211C

Inner locking ring (below #1F048001)
(Superseded to BF-1784211C)

$

$

Not available

14

Cub Cadet YS-9403443C

Complete shielding (below #1F048001)
(Superseded to BF-9403443C)

$

$

Not available

15

Cub Cadet YS-230-001E

Shearpin coupler for V2

$

$

Not available

16

Cub Cadet YS-000-505E

Shear bolt

$

$

Not available

Cub Cadet YS-050-0401

PTO shaft w/shear bolt complete

Note: Replaces YS-050-0407 Not shown

$

$

Not available

Cub Cadet YS-950-463B

Decal "DANGER - Rotating driveline, keep away" outer tube

Note: Not shown

$

$

Not available

Cub Cadet YS-950-464B

Decal "DANGER - Guard missing, do not operate" inner tube

Note: Not shown

$

$

Not available
